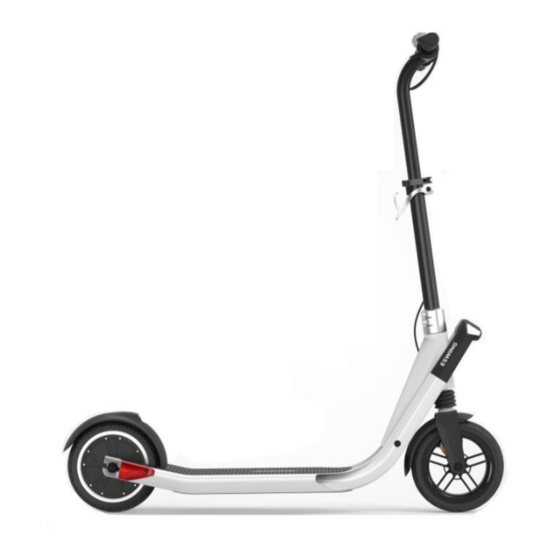

- Page 1 USER MANUAL – EN IN ES1354 E-Scooter inSPORTline Futurisco...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PRODUCT DESCRIPTION ........................4 DISPLAY ..............................5 BUTTONS ............................6 DEFAULT SETTINGS ..........................7 DRIVING TECHNIQUE ........................... 8 CONTROLS ............................. 8 BATERRY ..............................8 FOLDING AND UNFOLDING ........................ 10 TECHNICAL PARAMETERS ........................ 10 ENVIRONMENT PROTECTION ......................11 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS .......... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read this manual carefully before first use and keep it for future references. • Always follow local laws and regulations while driving e-scooter. • This scooter can use one person at the time. • It is not recommended to do stunts or jump, it can increase risk of injury. •... -
Page 4: Product Description
PRODUCT DESCRIPTION 1. LCD display + start button 2. Front light 3. Wheel 4. Electronic 5. Locking buckle 6. Front fork 7. Anti-slip tape 8. Motor 9. Charging port... -
Page 5: Display
DISPLAY 1. Display speed, or set values 6. Current distance 2. Shows units’ km / mil 7. Low speed mode 3. Light indicator 8. Medium speed mode 4. Current distance, voltage, speed values, error 9. High speed mode 5. Total distance 10. -
Page 6: Buttons
BUTTONS Short press Long press (longer Button combination than 3 s) Turning on/off Turning on/off Turning on/off scooter; lights scooter Turning on/off lights Speed mode Choose between Turn on cruise mode Hold the button to speed limit with speed 6 km / h. enter settings. -
Page 7: Default Settings
DEFAULT SETTINGS Default settings 10 inches 8 inches Wheel diameter Low-voltage protection (DO NOT CHANGE) Number of pole pairs (for motor) Speed signal selection (DO NOT CHANGE) Kilometres or miles Start with push or immediate start Cruise (1 – yes, 0 – no) Fast start or slow (1 –... -
Page 8: Driving Technique
DRIVING TECHNIQUE • Know the scooter before first use and test your ability to control this product. • Turn continuously and brake safely having enough free space. • Practice your first ride in an open area without obstacles. • Never let distract your mind during riding. Foot position –... - Page 9 • Do not repair or modify the battery yourself. MOTOR USE AND MAINTENANCE • The engine is loud at start-up. • Check all screws, nuts and bolts before driving. Tighten if necessary. • Do not ride into water. • Do not bump into other objects. •...
-
Page 10: Folding And Unfolding
FOLDING AND UNFOLDING You can fold or unfold the scooter. Follow the pictures below. TECHNICAL PARAMETERS Parameters Weight 10 kg Weight limit 100 kg Maximal speed * 25 km/h Range * 15 km Motor Motor type Brushless DC motor Rated power 250 W Rated voltage 36 V... -
Page 11: Environment Protection
Control panel Undervoltage protection 29 V Overcurrent protection 15 A Charging Charging time 2-3 hours Charging voltage 42 V * Values are only approximate, depending on the current temperature, wind resistance, user weight, etc. ENVIRONMENT PROTECTION After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard. - Page 12 • Mechanical damages • Regular use (e.g. wearing out of rubber and plastic parts, moving mechanisms, joints etc.) • Unavoidable event, natural disaster • Adjustments made by unqualified person • Improper maintenance, improper placement, damages caused by low or high temperature, water, inappropriate pressure, shocks, intentional changes in design or construction etc.
