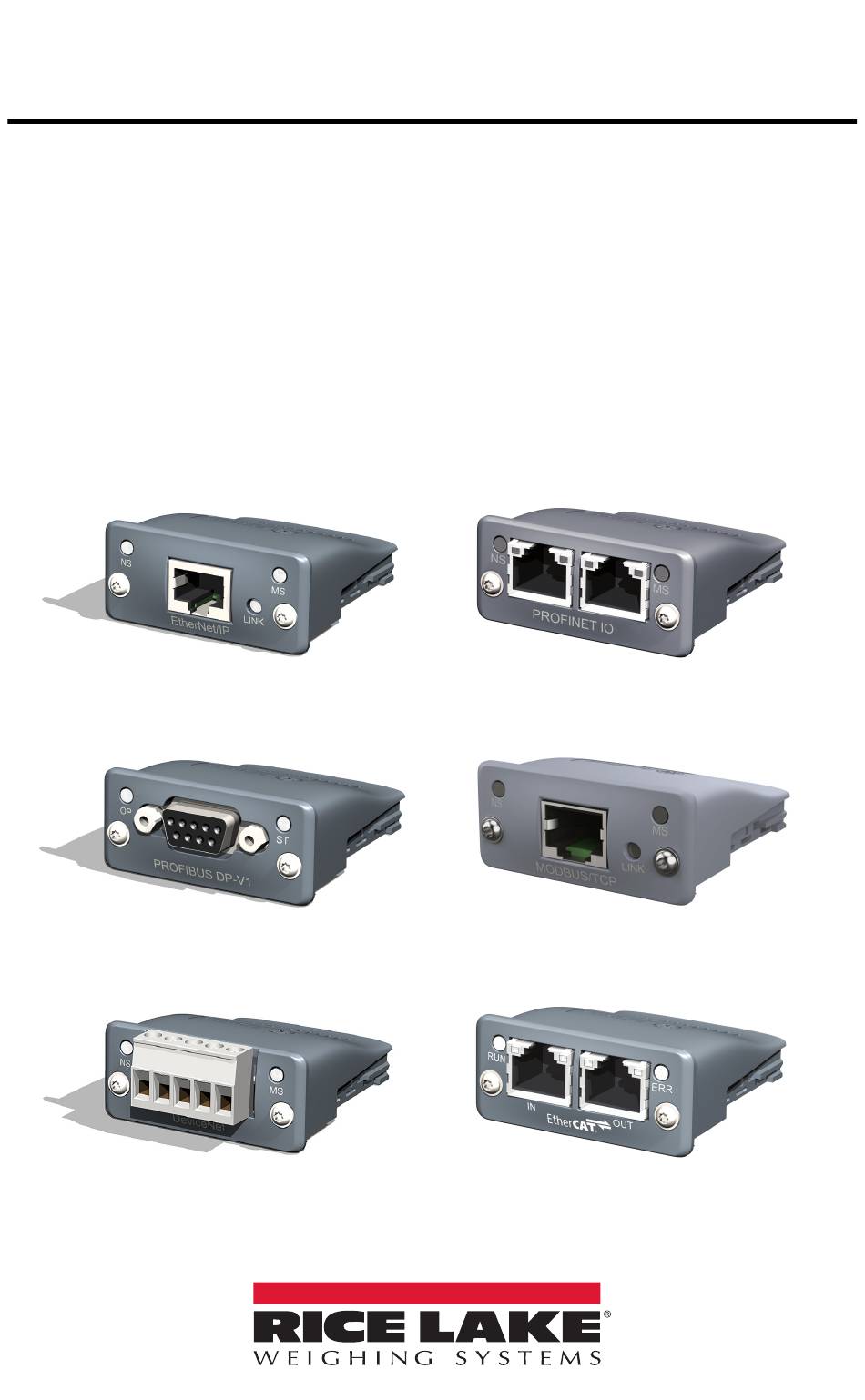

  • Page 1 Interface Option Cards Interface for the 882IS/882IS Plus Indicator Installation and Programming Manual EtherNet/IP™ PROFINET PROFIBUS DP Modbus ® DeviceNet EtherCAT ® ® June 7, 2019 PN 195260...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
  • Page 3: Table Of Contents

    3.1.4 EtherNet/IP Connector........6 3.2 PROFINET.
  • Page 4 5.2 Configuring a Generic EtherNet Module ......22 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
  • Page 5: Introduction

    ® • EtherCAT ® The EtherNet/IP, PROFINET, PROFIBUS DP and Modbus TCP interface option cards can be used to read and write data to the 882IS using a PLC or another primary controller. The DeviceNet interface option card allows the 882IS to communicate with a primary controller on a DeviceNet network, while the EtherCAT interface option card allows the 882IS to communicate with an EtherCAT network.
  • Page 6: Overview

    EtherNet/IP (Ethernet Industrial Protocol) is an open industrial networking standard allowing control applications to make use of Ethernet communications components and physical media. EtherNet/IP is based on the IEEE 802.3 Ethernet standard, the TCP/IP protocol suite and CIP (Common Industrial Protocol), the real-time I/O and information ™...
  • Page 7: Installation

    7. Reconnect power to the unit. The 882IS automatically recognizes all installed option cards when the unit is powered on. No hardware-specific configuration is required to identify the newly- installed card to the system. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 8 Figure 2-1. Interface Option Card Board Environmental Specifications Temperature: 14° to 104° F (-10° to +40° C) Conformance The EtherNet/IP and EtherCAT interfaces have been found in accordance with EMC directive 89/336/EEC for European standards EN 50081-2 and EN 61000-6-2. Visit our website www.RiceLake.com...
  • Page 9: Status Leds And Connectors

    Duplicate IP address, FATAL error Red, flashing One or more connections timed out (CIP Class 1 or 3) Table 3-1. Network Status LED Descriptions A test sequence is performed on this LED during startup. Note © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 10: Module Status Led

    Note 3.1.3 Link/Activity LED LED State Description No link, no activity Green Link established Green, flickering Activity Table 3-3. Link/Activity LED Descriptions 3.1.4 EtherNet/IP Connector The Ethernet interface supports 10/100 Mbps, full or half duplex operation. Visit our website www.RiceLake.com...
  • Page 11: Profinet

    Station name error – station name not set Red, 4 flashes Internal error – module has encountered a major internal error Table 3-5. Module Status LED Descriptions A test sequence is performed on this LED during startup. Note © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 12: Link/Activity Led

    882IS Interface Option Cards 3.2.3 Link/Activity LED LED State Description No link, no activity Green Link established Green, flickering Activity Table 3-6. Link/Activity LED Descriptions 3.2.4 PROFINET Connectors The PROFINET interface supports 10/100 Mbps, full or half duplex operation. Update rate is dependent on the configured baud rate and the number of network nodes.
  • Page 13: Module Status Led

    A Line Negative RxD/TxD, RS485 level Internally connected to the Anybus protective ground via cable Housing Cable Shield shield filters according to the PROFIBUS standard. Table 3-9. PROFIBUS Connector Pinout Descriptions © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 14: Modbus Tcp

    882IS Interface Option Cards Modbus TCP Modbus Connector Network Status LED Module Status LED Link/Activity LED Figure 3-5. Modbus TCP Module 3.4.1 Network Status LED LED State Description No power or no IP address Green Module is in process active or idle state Green, flashing Waiting for connections Duplicate IP address, FATAL event...
  • Page 15: Link/Activity Led

    LED Status Description Not powered or not online Steady Green Online, connected Flashing Green Online, not connected Steady Red Critical link failure Flashing Red Connection time-out Table 3-13. Network Status LED Descriptions © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 16: Module Status Led

    882IS Interface Option Cards 3.5.2 Module Status LED LED Status Description No power to module Steady Green Module operational Missing or incomplete configuration, device Flashing Green needs commissioning Steady Red Unrecoverable fault Flashing Red Recoverable fault Table 3-14. Module Status LED Descriptions 3.5.3 DeviceNet Connector Figure 3-6...

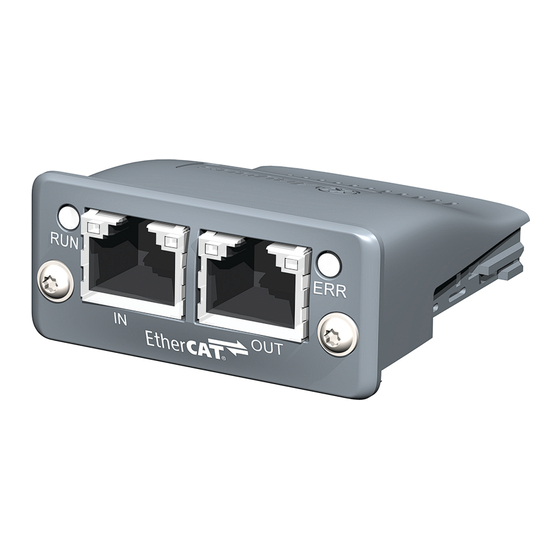

  • Page 17: Ethercat

    Red, double flash Application (sync manager) watchdog timeout Fatal event, forcing the bus interface to a physically passive state; contact technical support. Table 3-17. Error Status LED Descriptions © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 18: Port Status Leds

    882IS Interface Option Cards 3.6.3 Port Status LEDs Status Description Link not sensed (or no power) Green Link sensed, no activity Green, flickering Link sensed, activity detected Table 3-18. Port Status LED Descriptions 3.6.4 EtherCAT Ports The EtherCAT interface supports 10/100 Mbps, full or half duplex operation. Port 1 is for incoming communications and Port 2 is for outgoing communications.
  • Page 19: Data Structure

    882IS status; Section 4.1.1 on page 16 40261 Gross weight 40263 Tare weight 40265 Net weight 40267 Accumulator value Current mode 40269 0 = primary, 1 = secondary Table 4-1. 882IS Output © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 20: 882Is Status Bits

    882IS Interface Option Cards 4.1.1 882IS Status Bits 882IS Status Data Word Bit Value = 0 Value = 1 In weigh mode In setup mode Weight OK Weight over/Under range Not in zero band In zero band Not used Not used Not in warmup In warmup Heartbeat low...
  • Page 21: 882Is Error Status Bits

    Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Table 4-3. 882IS Error Status Bits © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 22: 882Is Input

    882IS Interface Option Cards 882IS Input The input data is information received from the PLC or primary device that is used to perform different actions depending on the data received. Modbus Address Word Description Enter tare value. If set to 0, the full gross weight will be used when the 40001 acquire tare command is set to 1.
  • Page 23: Network Settings

    1. Open a web browser and type the IP address of the card into the address bar. Figure 5-1. EtherNet/IP Main Display in a Web Browser 2. Click Network interface. Figure 5-2. EtherNet/IP Network Interface Display in a Web Browser 3. Click Network configuration. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 24 882IS Interface Option Cards Figure 5-3. EtherNet/IP Network Configuration Display in a Web Browser 4. Change necessary settings. 5. Click Store settings to save any changes. Set network settings using the Anybus IP configuration utility. 1. Install the configuration program found on the CD (IPconfigSetup.exe).
  • Page 25 4. Double-click on the device or right-click and select Configuration. A menu displays with the current network settings. Figure 5-6. Configuration Menu 5. Change necessary settings. 6. Click on the button. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 26: Configuring A Generic Ethernet Module

    882IS Interface Option Cards Configuring a Generic EtherNet Module (CompactLogix or ControlLogix PLC) Figure 5-7. Generic EtherNet Module Screen Visit our website www.RiceLake.com...
  • Page 28 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...

This manual is also suitable for:
