Xerall X-TANKCOPTER Instruction Manual page 8

Motors Replacement
1. Twist out the the four screws of the motor cover anticlockwise with the
screwdriver for distribution (Picture 8).
2. Twist out the screws of the scaffold, then open the motor cover (Picture 9).
3. Please firstly take out the broken motor, connect the plug in the relative color
to the plug motor, then install the motor to the battery jar, close the motor
cover, lock the screws, it's finished now(Picture 10).

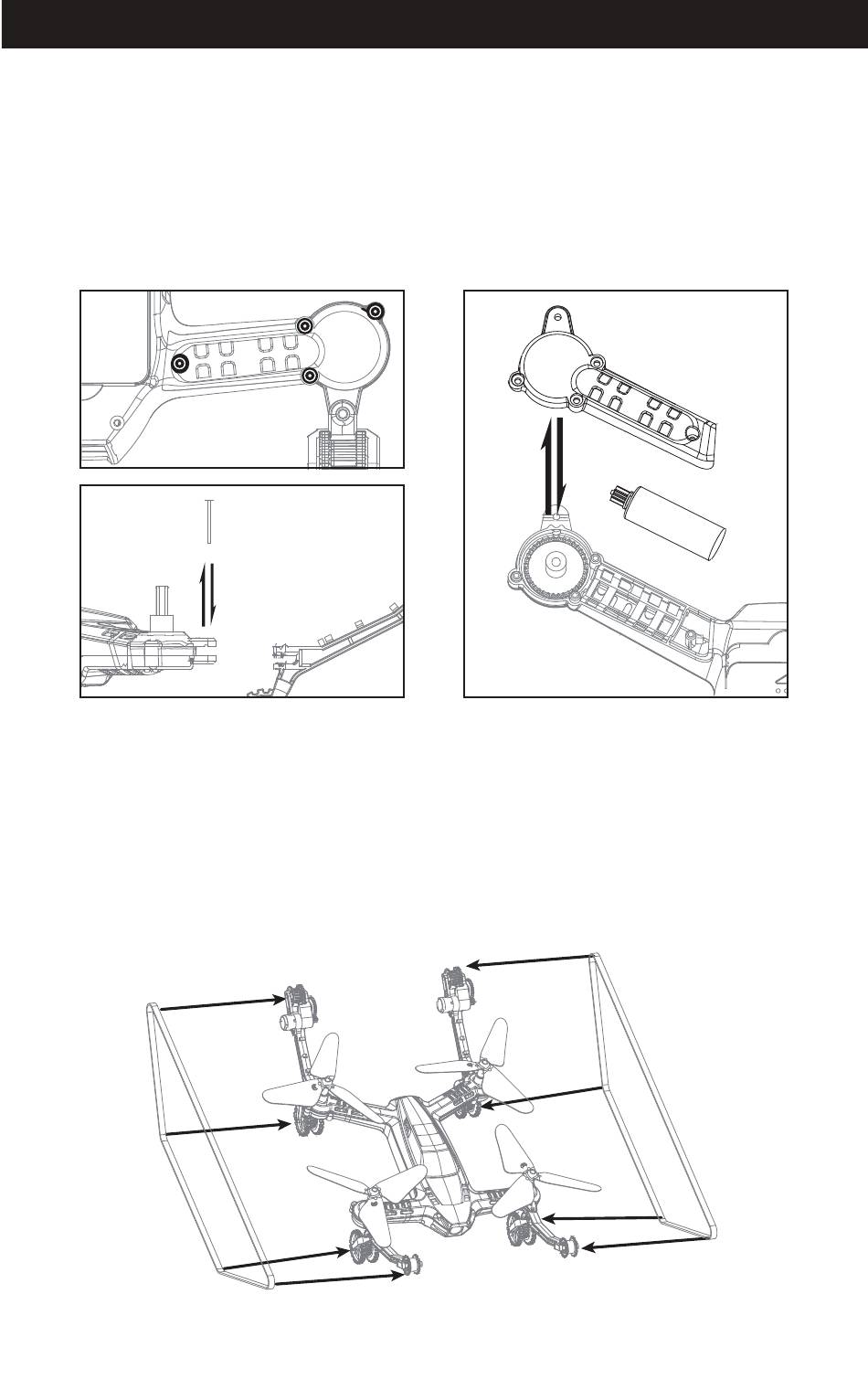

Picture 8
WARNING: The motor's rotating direction should be the same, or it will not work.
Note: The motor is consumable. If it is damaged, visit the local seller to buy the
new motor for replacement.
Diagram of belt loading and unloading
When installing the belt, please belt up the front/rear rotating wheel and belt wheel.
When disassembling the belt, you can pull out the belt out from the front/ rear
belt rotating wheel and the belt wheel.
Picture 9
Picture 11
8
Picture 10
