Numatics G2-2 Series Quick Start Manual

Getting Started
This is a brief document designed to quickly get you started setting up your valve manifold with an integrated
Numatics' G2-2 series EtherNet/IP
1) Initial Unpacking and Inspection
1) Examine exterior of package for signs of damage. Report any damage to shipping carrier.
2) Remove wrapped manifold assembly from box.
a) Remove manifold assembly from anti-static packaging
b) Retain documentation for installation and configuration
3) Examine manifold assembly for any shipping damage such as:
a) Bent pins or connectors
b) Report any damage to shipping carrier immediately
4) Examine manifold assembly for proper ordered configuration. (Valves, I/O, Protocol, etc.)
2) G2-2 Introduction

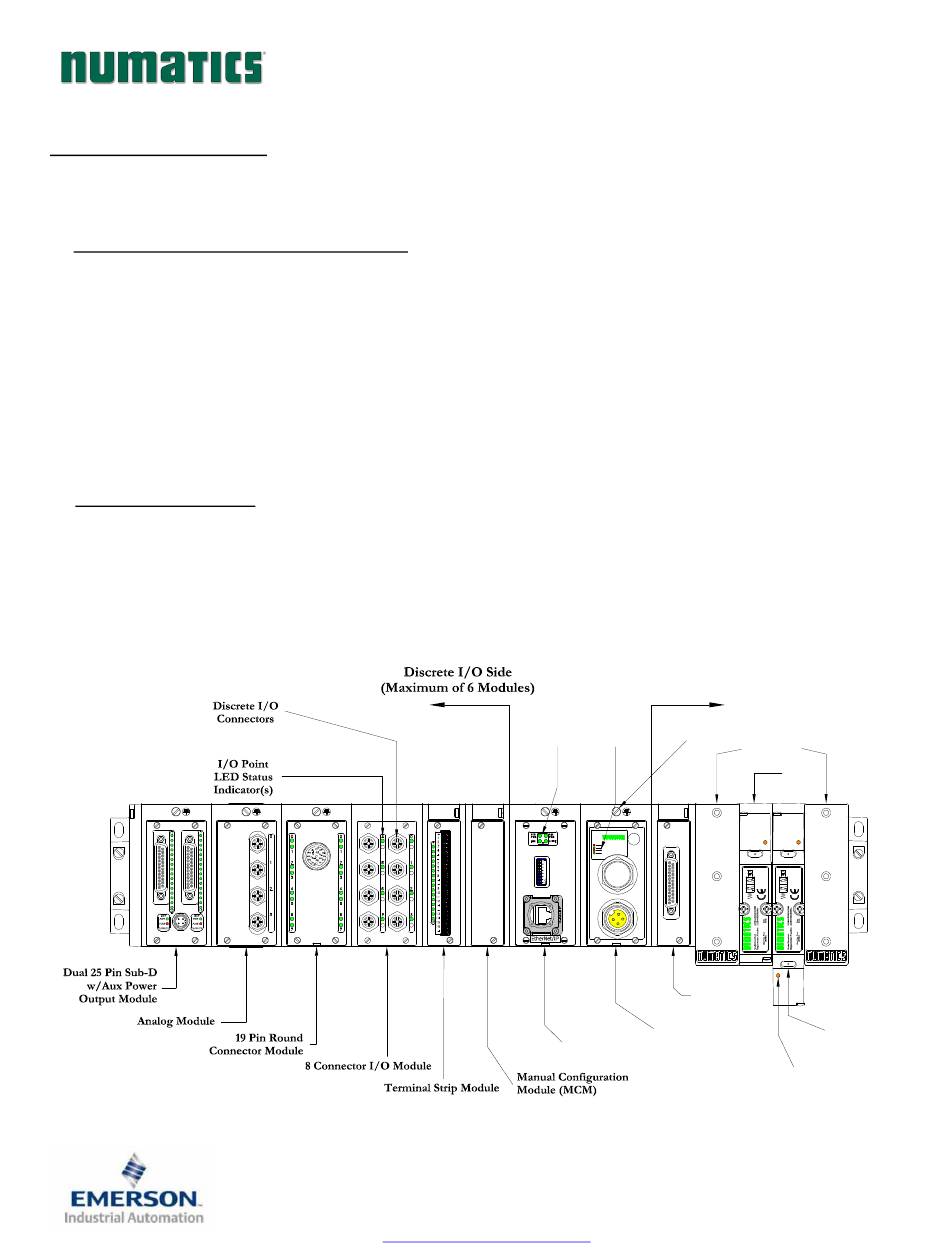

Below is an example of a 2012 series valve manifold. This fieldbus manifold series is capable of addressing a
total of 224 I/O. The manifold can be viewed as having two sections to it, the
Side Valve Side
. The
maximum of 6 modules totaling 192 Outputs, 96 Inputs, or various combinations. The communication
module has a RJ45 communication connector. The power module has a 4-pin power connector. Pin-outs for
these, along with I/O connectors, are labeled on the side of the respective modules.
G2-2 Series EtherNet/IP
TM or Modbus TCP communication node.
supports a maximum of 32 solenoid coils and the
TDG22ENQS2-0
Subject to change without notice
www.numatics.com/fieldbus
TM
Quick Start Manual
Discrete I/O Side
(Maximum of 32 Solenoids)
Module/
Network Aux. Power
Status LED's LED's
FUSE 1
+24V VLV/OUT
FUSE 2
+24V NODE/IN
Communications
Module
1/07
and Modbus TCP
Valve Side Discrete I/O
and the
supports a
Valve Side
Chassis Ground
Connection
Valve
End Plates
Valve
Valve Side
Sub-D Output
Module
Power Manual
Module Override
Solenoid LED
Status Indicator
