Quick Start Manual
Getting Started
This is a brief document designed to quickly get you started setting up your valve manifold with an integrated
Numatics' G2-2 Series Profibus-DP communication node. Please note that this document is not intended to
replace the G2-2 Series Profibus-DP Technical Manual, which includes more detailed technical information.
The full technical manual can be found on the Numatics website at
calling 248-887-4111.
1) Initial Unpacking and Inspection
1)
Examine exterior of package for signs of damage. Report any damage to shipping carrier.
2) Remove wrapped manifold assembly from box.
a) Remove manifold assembly from anti-static packaging
b) Retain documentation for installation and configuration
3) Examine manifold assembly for any shipping damage such as:
a) Bent pins or connectors
b) Report any damage to shipping carrier immediately
4) Examine manifold assembly for proper ordered configuration. (Valves, I/O, Protocol, etc.)
2) G2-2 Introduction

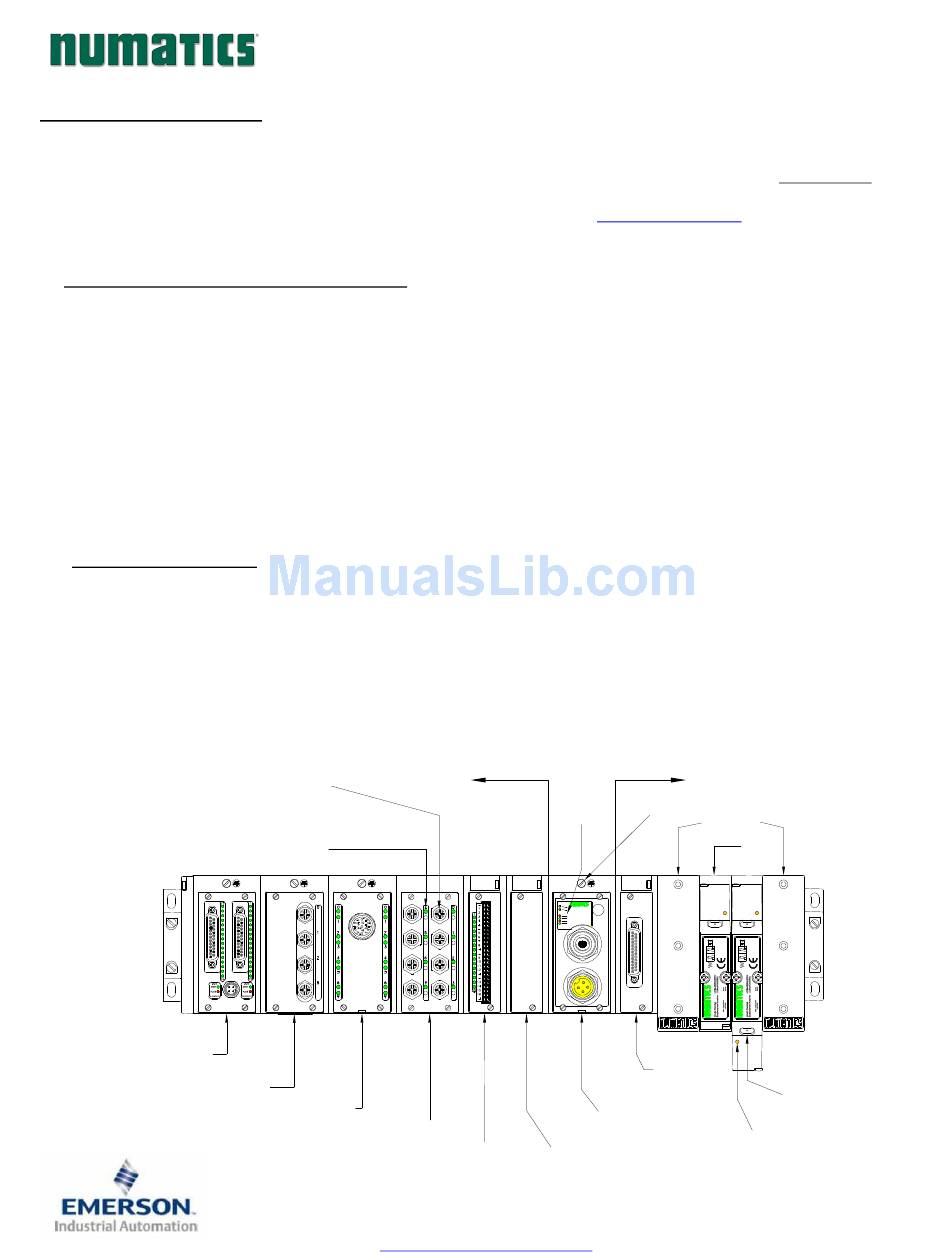

Below is an example of a 2012 series valve manifold. This fieldbus manifold series is capable of addressing a
total of 224 I/O. The manifold can be viewed as having two sections to it, the
Side
Valve Side
. The
maximum of 6 modules totaling 192 Outputs, 96 Inputs, or various combinations. The communication
module has two connectors: a 5-pin communication connector and a 4-pin power connector. The
communication connector either comes in a 12mm micro connector for 1.5 Mbps or a 12mm reverse key micro
connector for 1.5 thru 12 Mbps. Pin-outs for these, along with I/O connectors, and are labeled on the side of
the respective modules.
Dual 25 Pin Sub-D
w/Aux Power
Output Module
Analog Module
G2-2 Series Profibus-DP Quick Start Manual
supports a maximum of 32 solenoid coils and the
(Maximum of 6 Modules)
Discrete I/O
Connectors
I/O Point
LED Status
Indicator(s)
19 Pin Round
Connector Module
8 Connector I/O Module
Terminal Strip Module
TDG22PTQS2-0
Subject to change without notice
www.numatics.com/fieldbus
www.numatics.com
Discrete I/O Side
Discrete I/O Side
(Maximum of 32 Solenoids)
Module/
Network
Status LED's
BUS ERROR
MOD STATUS
Profibus-DP
FUSE 1
+24V VLV/OUT
FUSE 2
+24V NODE/IN
Communications
Module (Node)
Manual Configuration
Module (MCM)
1/07
or may be ordered by
Valve Side
Discrete I/O
and the
supports a
Valve Side
Chassis Ground
Connection
Valve
End Plates
Valve
Valve Side
Sub-D Output
Module
Manual
Override
Solenoid LED
Status Indicator
Page 1
Advertisement
Table of Contents
Related Manuals for Numatics G2-2 Series
Summary of Contents for Numatics G2-2 Series
- Page 1 This is a brief document designed to quickly get you started setting up your valve manifold with an integrated Numatics’ G2-2 Series Profibus-DP communication node. Please note that this document is not intended to replace the G2-2 Series Profibus-DP Technical Manual, which includes more detailed technical information.
- Page 2 G2-2 Series Profibus-DP Quick Start Manual 3) MCM - Manual Configuration Module (Optional when using Class 2 Profibus-DP Master) DIP Switch Rotary Switch (SW2) (SW3) DIP Switch Rotary Switch (SW1) (SW4) 5 6 7 8 5 6 7 8 All DIP switches shown in the "OFF" position The MCM is the module that allows the user to manually set address and other user definable options.
- Page 3 (turned OFF and ON). • Baud rate in Profibus-DP slaves is automatically configured. • Node address may only be assigned once per network. • GSD files may be downloaded from our web site at www.numatics.com. TDG22PTQS2-0 1/07 Subject to change without notice Page 3 www.numatics.com/fieldbus...
-
Page 4: Self-Test Mode
G2-2 Series Profibus-DP Quick Start Manual 4) Self-Test Mode An internal diagnostic tool can also be enabled using the optional MCM module. This tool allows the user to confirm that all of the Inputs and Outputs on the manifold are fully functional without needing a network connection or controller. - Page 5 G2-2 Series Profibus-DP Quick Start Manual 5) I/O Mapping Example Example: Assumed Settings - Single Z-Boards used with single solenoid valves - Double Z-Boards used with double solenoid valves - Valve Output Configuration = 32 Coils Discrete I/O Configuration Module Type Part No.
- Page 6 G2-2 Series Profibus-DP Quick Start Manual I/O Mapping Table Example Continued Output Table BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Valve Coil Valve Coil Valve Coil Valve Coil Valve Coil...
-
Page 7: Ground Wiring
National Electrical code IEC 60204-1 or EN 60204-1. There also is a, “ATTENTION: CONNECT TO EARTH GROUND FOR PROPER GROUNDING OF UNIT”, label attached to the chassis ground connection point on the G2-2 series communication node housing. This label also points out where the grounding guidelines can be found. - Page 8 G2-2 Series Profibus-DP Quick Start Manual 8) Communication Module Connector Pin-Outs Profibus-DP Communication Connector Pin-Out Pin No. Function Description +5 volt output from node, used for termination of network or +5 VDC auxiliary devices. Data Line A Profibus-DP Communication Line A (Green) 0VDC Common Common for +5V output and Data Lines A &...
-
Page 9: Led Functions
G2-2 Series Profibus-DP Quick Start Manual 9) LED Functions Upon power up, the LEDs indicate the status of the unit. There are six LEDs on the G2-2 Profibus-DP node; one for Bus Error, one for Mod Status, two for internal fuse integrity, and two for Aux. Power status. -
Page 10: Factory Default Settings
G2-2 Series Profibus-DP Quick Start Manual 10) Factory Default Settings Unless otherwise requested, all standard G2-2 Series Profibus-DP manifolds ship with specific factory default settings. Below is a list of the factory default settings: Description Default Settings Node Address Address Reset...
