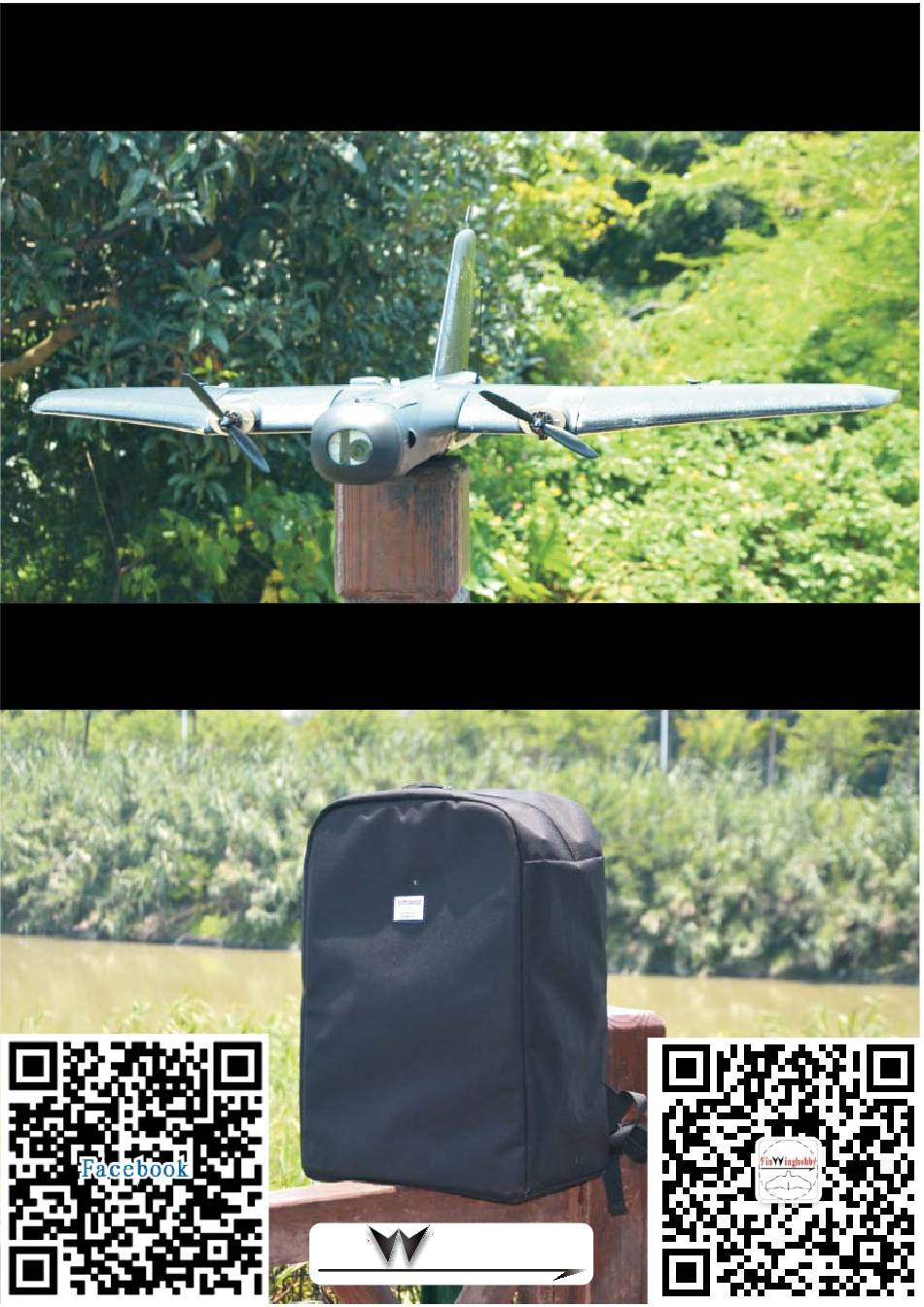

- Page 1 Transformer Wing Portable FPV Mapping User Manual FINWING TECHNOLOGY WWW FINWINGHOBBY COM PATENT OWNER FINWINGHOBBY Like us Facebook Page Subscribe WeiChat inghobby Finwinghobby...
- Page 2 Please read through the manual before installation and flying This manual as introductions to user on how to build ing this RC plane. Please visit the finwinghobby com official website for more introductions. Warning: 1 This model airplane is not a toy not recommended for children under 14 years old 2.
- Page 3 F 44 F 4 4 CG . 0 .0 M M- backward 4 0MM from the Plastic Pillar Recommed Manual maiden without flight contoller if your transmitter s trim function stop working while flight contoller installed Finger measurement: Different people finger size and method differently measurement F 33 C G : w ould...
-
Page 5: Specifications
Specifications Items F33 Specifications F44 Specifications Wing Span 840MM(33") 1120MM(44") Length 660MM(26") 660MM(26") Wing Area 22.0 Sq dm (341 sq in) 34.0 Sq dm (527 sq in) Fuselage and Wings: EPP (unbeatable foam material in the model world) Material Nose Fuselage: Durable&Flexible Blowing PE Plastic Nose Protector: Elastic EVA Completed Kits 0.55kg 0.78kg Weight Recommended 1.5‐1.65kg ≤1.1kg Max. AUW Electronics required(kits package not included) (2PCS) 2206/2207 ( KV please reference to (1PCS) 2210/2212 ( KV please reference Motor supplier and what propeller you chose, Motor to their motor testing report from which different propeller size the KV must be motor supplier you want to choose) differenctly) Note: Stock Brushless motor R2207 KV 1300, is quite powerful, don't recommend bigger than 2207 Propeller (1PCS)6045 CW/CCW 6" 7" or 8"... - Page 6 Props To Transformer Wing F44 " Props APC 8 Transformer Wing F44 high efficiency cruising but don t pull full throttle other will cause motor over heating 6" ( Props Quads To Traveler 1400 Transformer wing F44 and F33 "...
- Page 7 Rear Fuselage Reinforcement parts pre installed but two half not pre glued Glue to red marked contact surface and The tubes Must drying at least 24 hours after closing fuselage Glue Glue Glue Glue finwinghobby com...
- Page 8 Rear Fuselage Closing fuselage properly keep it parallel Don t be over tighten 158 5MM Tips: The best way to verify is to install the fuselage cover fitting It s perfect if fuselage cover fitting easily and properly finwinghobby com...
- Page 9 Rear Fuselage Install plywood first Drying at least 24 hours As below is how to Install F33 Motor mount and Motor Skip to the next page if you don t want to fly F33 right now F33 Pusher finwinghobby com...
- Page 10 EVA Protector Cut a proper hole size as per EVA Nose Protector closed naturally your camera required if no need nose camera Cut a hole as per the molded marks if need to installed nose camera Note 1 Les protector must be gluing to EVA protector 2 EVA Protector must be gluing to nose otherwise will affect its durability Glue is required Glass Lens Protector...
-
Page 11: Control Surface
Control Surface No need extra adjustment if use Stock servo Servo horn Control surface should be 18 20MM Right wing Use Circle servo horn Metal gear servo Push rod Be right side Servo Horn Metal Hinge reinforcement Hinge Servo Horn screws Screws finwinghobby com... - Page 12 Control Surface No need extra adjustment if use Stock servo Servo horn Control surface should be 18 20MM Left wing Use Circle servo horn Metal gear servo Push rod Be left side Servo Horn Metal Hinge reinforcement Hinge Servo Horn Screws screws finwinghobby com...
- Page 13 F33 is more sensitive Maiden recommned max travel 18MM you can adjust it later according to your preference F44 is less sensitive Maiden recommned max travel 20MM you can adjust it later according to your preference 1 8 MM 22 M M...
-
Page 14: Extension Wings
Extension wings Motor ESC Motor mount holes compatible with most of the 22 series motors " " ) Note:22 05 2 206 brushless Motor Prop Testing customized stock 2205 kV1400 8040 & is power enough unnecessary to install heavier bigger one finwinghobby com... - Page 15 Configuration1 Configuration2 Configuration3 finwinghobby com...
- Page 16 Note must glue to secure two extension wings and fuselage as well 60-65MM finwinghobby com...
- Page 17 Customized Module Specifically customized camera module for the following camera Options only not included in Airplane Kits H er o3/ Module A for XiaoYi and other small FPV camera Runcam Mobius Module B for and other similar size camera Module C: for H ero 3/ XiaoYi and other camera Bottom Airmapping WWW finwinghobby com...
- Page 18 Recommendations F44 CG Balance ut FC VTX and F devices to the rear fuselage is good to balance CG if no Bottom mapping camera Consider to cut that foam as pictures below so as to battery can be moved backward further is good to balance CG If your...
