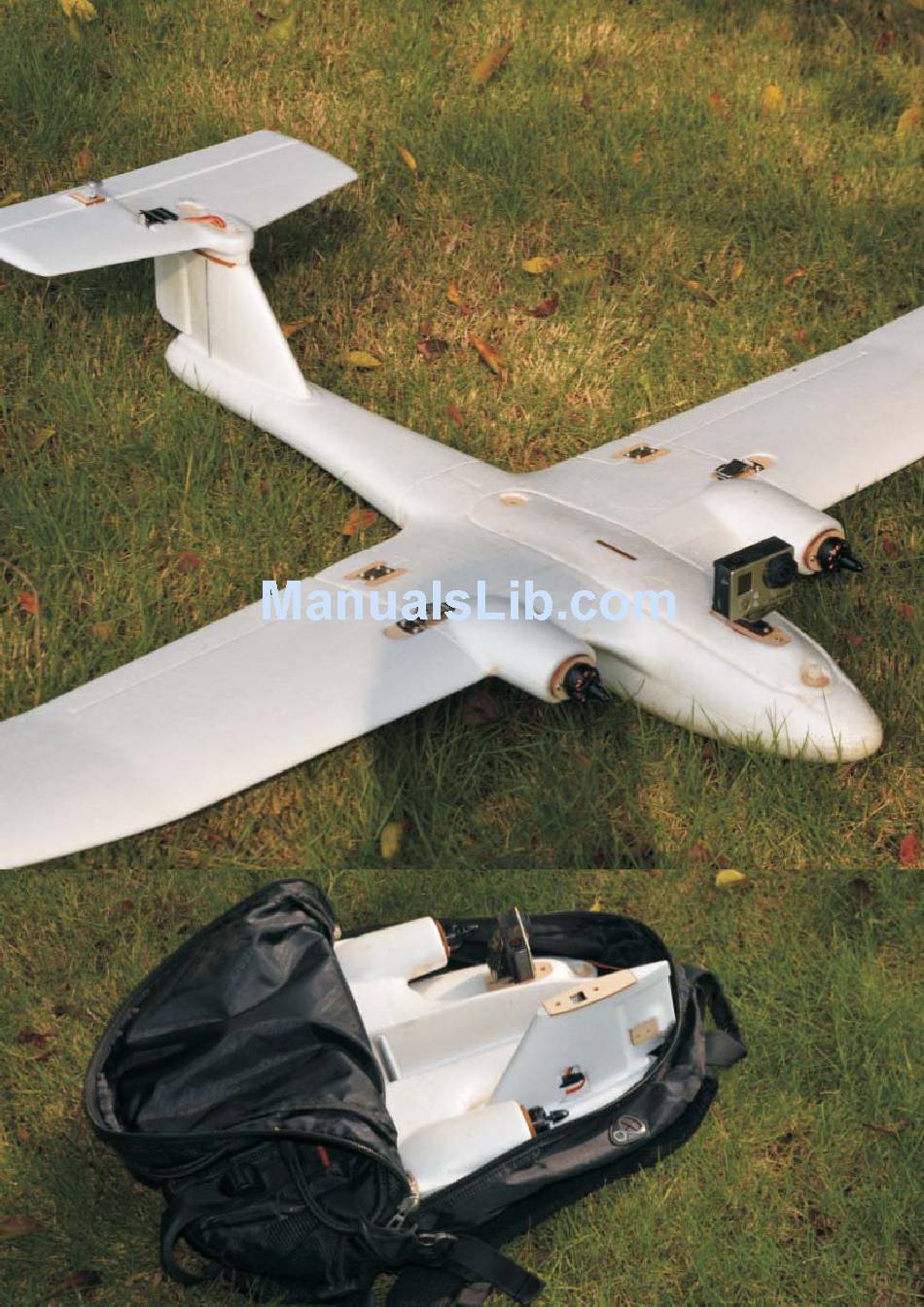

- Page 1 Finwing Traveler T1160 V2 U S E R M A N U A L FINWING TECHNOLOGY WWW FINWINGHOBBY COM PATENT PENDING...
- Page 2 Please read through the manual carefully before installation and flying This manual aims to help direct the user on how to build the Traveler RC plane. Please visit the finwing cn finwinghobby com official website for more introductions. Warning: 1 This model airplane is not a toy not recommended for children under 14 years old 2.
- Page 3 Finwing Travelerplane Specifications Wing Span 1160MM(46") Lenght 860MM(33 8”) Wing Area 20.0 sq dm (310.0 sq in) <Main-Wing Area) Material Color EPP (Black or White) EPO White Black EPP White EPP and EPO the wegiht is variable FPV Weight Approximately 1.0-1.2kg(2.2Ib-2.6Ib) 3S 4000mah-5200mah User Feedbacks she is capable of flying with upto 1.3kg, flight time around 30-40 minutes.
- Page 4 Setting Forward Backward Hole Black White EPP and EPO Neutralize Elevator control surface first Plane levelly at a platform measure the stabilizer before ready to fly It s inaccurate measurement if building not completely done Center of Rear edge Center of Leading edge Setting at Hole "...
- Page 5 Fuselage Gluing Covers and Plywood Please according to the following steps build Step 3 Locker s Plywood Step 2 Step 1 gluing Plywood gluing shoulder cover Step 3 Locker s Plywood Step Gluing fuselage tail cover Important Note be sure let glue dry at least 12 hours before installing other parts Step Gluing Motor Mount plywood...
- Page 6 Wings Left Right wing is the same Please according to the following steps build Reinforcement carbon tubes has already been pre glued Step 1 gluing Covers Recommend to reinforce the wrapping Aileron linkage with tape Step 2 Screws secure the Locker Cut off Be sure let glue dry at least hours before installing other parts...
- Page 7 T Tail Tail Boom Gluing Cover and Carbon Strip # Vertical wing Gluing plywood and Carbon Strip Servo Horn Cut off Choose the hole or the second hole won t be big difference recommend try the top hole Now please let glue dry about hours before continuing the next step...
- Page 8 T Tail Glue vertical wing to the tail boom Put vertical wing inside immediately after gluing to all the contact surface irremovable dry at least 12 hours Warning Reminder: & Please must have to glue vertical wing to the tail firmly and irremovable dry at least 12 hours. this is the only way to secure stabilizers, there is a horizontal mark line on the vertical wing ,keep it parallel to the tail surface.
- Page 9 T Tail during my later testing I removed the rudder servo basically can t tell any difference without rudder till flying very good without rudder Use the short wire servos for rudder and elevator if you have Finwing Stock V2 ARF Combo 7 0CM...
- Page 10 Fuselage Tail EPP EPO & Linkage Wing Lock Cut off For Metal linkage Φ2 0 Cut off For servo Horn Φ2 3 For Wing Lock Linkage Φ3 0 Note Black EPP White EPP and White EPO is the same Screw secure the lockers...
- Page 11 Fuselage EPP EPO Note Black EPP White EPP and White EPO is the same Use hobby knife cut a hole let ESC and Servo wire pass through ESC pass through the hole like this...
- Page 12 Install servos Fuselage Main Wing Black EPP White EPP and White EPO is the same Enlarge the servo bay to have enough space for the servo arm moving freely...
- Page 13 Install servos Main Wing Black EPP White EPP and White EPO is the same Neutralize servo first Install servo as photos displayed...
- Page 14 Install servos Main Wing The bottom hole first hole The bottom hole first hole...
- Page 15 Motor ESC Propeller...
- Page 16 Motor ESC Propeller Black EPP White EPP and White EPO is the same Note Move the heat shrink tubing inside first Solder in parallel...
- Page 17 Launch Cart Launch Cart is not must to everybody OPtions only Good to enjoying rolling take off and beginner < not included by kits ARF > Φ3 0 Φ4 0 Find out all the parts gluing the metal washers first Front wheel Rear wheel 4 0 Hole...
- Page 18 EVA Cushion What is this for ? Use it as cushion if you found the locker become loose...
- Page 19 Suggestions Chamfer edges of those carbon tubes would be more smooth and convenience to deployment Tail Main Wing...
- Page 20 Suggestions Tail Fuselage cover is possible protruded after gluing if you found big gap between fuselage and tail boom use hobby knife cut off few foam of the fuselage cover Please ignore this page if no obvious gap Good...
