Page 1: Operating Instructions

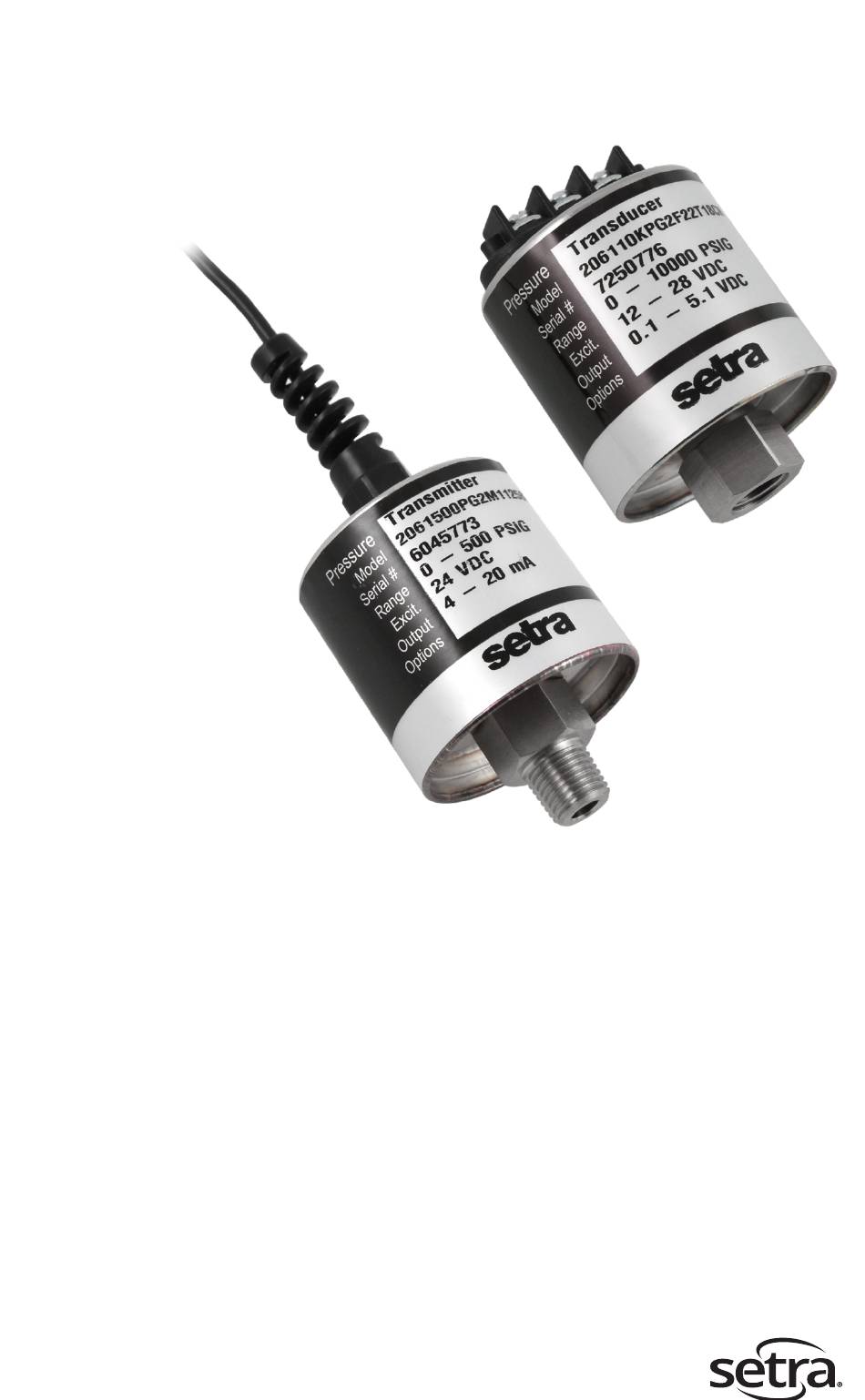

Model 206 Operating Instructions Setra Systems, Inc. 159 Swanson Road, Boxborough, MA 01719 800.257.3872 • www.setra.com... -
Page 2: General Information
1.0 General Information Every Model 206 has been tested and calibrated before shipment. Setra Systems Model 206 pressure transducers sense gauge and vacuum pressure and convert this pressure difference to a proportional high level analog output. Two standard output and excitation versions are offered:... - Page 3 2.4.1 Cable Termination and Hirschmann Models All 206 models with a cable termination or Hirschmann connector vent through the cable to maintain proper accuracy. Connection to the unit should be made in a junction box that is vented to atmosphere, with care taken to ensure that the end of the cable is not blocked or sealed.
-
Page 4: Electrical Installation
Connect to system or earth ground. NOTE 1: Model 206 can be wired as a three wire device by connecting -output and –excitation and shield to a common ground. However, accuracy will be reduced because of voltage drops in the leads. - Page 5 3.2 Current Output Units Current output model 206 are true 2-wire, 4-20 mA current output devices and deliver rated current into an external load of 0-800 Ω. Cable termination models have a 2-wire cable where red is positive and black is negative. On the Hirschmann connector, pin 1 is positive; pin 2 is negative and pin 4 is the ground/shield.
- Page 6 Many times only minor field adjustments may be necessary. When returning a product to Setra, the material should be carefully packaged and shipped prepaid to: Setra Systems, Inc. 159 Swanson Road Boxborough, MA 01719-1304...
- Page 7 6.0 Limited warranty & limitation of repair SETRA warrants its products to be free from defects in materials and workmanship, subject to the following terms and conditions: Without charge, SETRA will repair or replace products found to be defective in materials or workmanship within the warranty period; provided that: a) the product has not been subjected to abuse, neglect, accident, incorrect wiring not our own, improper installation or servicing , or use in violation of instructions furnished by SETRA;...
- Page 8 Telephone Number: ____________________________ Date of Product Return: ___________________ I have made reasonable inquiry and I have supplied accurate information in this Declaration. I have not withheld any information. I have followed the Return of Setra Systems Product Procedure. Signed: ________________________________________ Date: ___________________...
