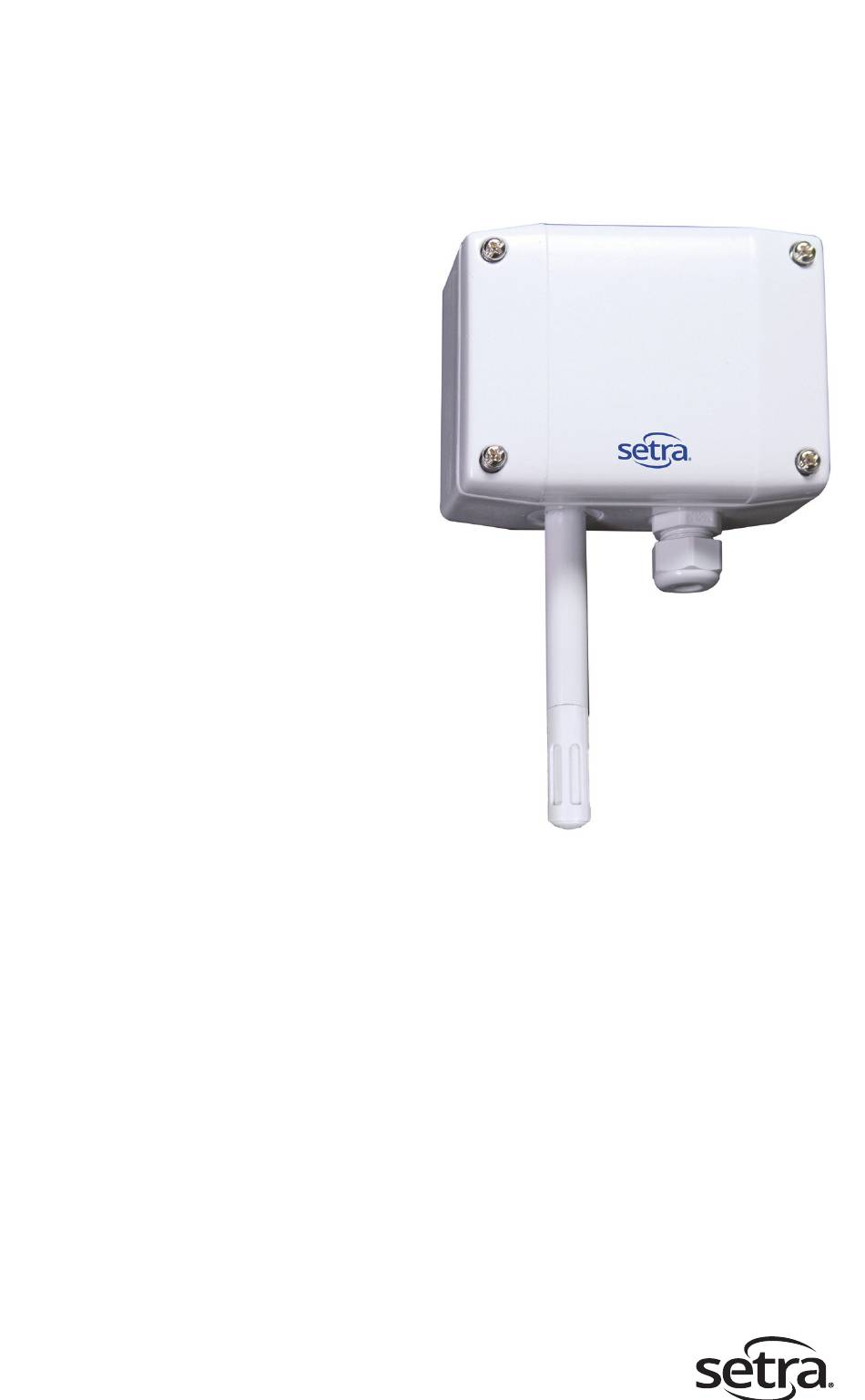

- Page 1 Model SRH200 Operating Instructions Setra Systems, Inc. 159 Swanson Road, Boxborough, MA 01719 800.257.3872 • www.setra.com...
-
Page 2: Table Of Contents
Contents 1.0 General information .......................3 2.0 Caution ..........................3 3.0 Connection diagrams......................3 4.0 LED indication........................4 5.0 Scope of supply........................4 6.0 BACnet or modbus setup ....................5 6.1 BACnet address using address switch ............5 6.2 BACnet address using software ...............6 6.3 Modbus address using software ..............8 6.4 Modbus address using address switch ............10 6.5 Modbus setup ....................11 7.0 Technical data .......................12... -
Page 3: General Information
• For accurate measurement, it is essential that the temperature of the sensing probe and the sensing head is same as the temperature of the air to measure. Avoid mounting the SRH200 transmitter in a way which creates temperature gradients along the probe. -
Page 4: Led Indication
Model (Type A) (Type B) SRH200 Transmitter according to ordering guide Cable fitting Mounting kit Mounting flange Calibration & inspection certificate according to DIN EN10204 - 3.1 Quick Guide - SRH200 RS485 Setup included with all BACnet & Modus units... -
Page 5: Bacnet Or Modbus Setup
For Example: ID 127=0111111 BACnet PICS for this unit are available for download at www.setra.com. This unit’s ID as well as many other properties are also read/writable from your BACnet console. SRH200 Default=2 Permitted=0...127 (BACnet) SRH300 Default=1... -
Page 6: Bacnet Address Using Software
6.2 Sitting BACnet address using the software Remove the unit’s faceplate. You will see an address switch (pictured below). If you wish to set the address of the unit using the Setra product configuration software, verify all these switches are set to “0”. Prior to adding unit to your network, power up the unit according to diagram on page 3. - Page 7 Click on the communication settings found on left menu. The screen below will be displayed. Here you can set band rate, data, parity, and stop bits. In the bus address cell, you can enter the following ranges. SRH200 Default=2 Permitted=0...127 (BACnet)
-
Page 8: Modbus Address Using Software
6.3 Setting Modbus address using the software Remove the unit’s faceplate. You will see an address switch (pictured below). If you wish to set the address of the unit using the Setra product configuration software, verify all these switches are set to “0”. Prior to adding unit to your network, power up the unit according to connection diagram on page 3. - Page 9 Click on the communication settings found on left menu. The screen below will be display. Here you can set baud rate, data, parity and stop bits. In the Bus address cell, you can enter the following ranges. SRH200 Default=245 Permitted=0...247 (modbus)
-
Page 10: Modbus Address Using Address Switch
Before connecting the device to your network, set the address you wish to have on the switch following the above format and table below. SRH200 Default=245 Permitted=1...247 (Modbus) SRH300 Default=242 Permitted=1...247 (Modbus) -
Page 11: Modbus Setup
The factory setting for the Slave-ID is 245 as an integer 16Bit value. This ID can be customized in the register 60001 (0x00) (value margin 1 - 247 permitted). For Modus outputs the required units (metric or non-metric) must be selected in the “Ordering guide”, see SRH200 data sheet. INFO (read register): FLOAT (read register): Register Comm. -
Page 12: Technical Data
(tolerance class B, DIN EN 60751) T-accuracy at 20°C ±0.3 °C Outputs Analog output 0-10 V: -1 mA < I < 1 mA 4-20 mA (2-wire): < 500 Ω RS485 (BACnet MS/TP or Modbus RTU), Digital output max.32 SRH200 units in one bus... -
Page 13: Setup And Adjustment
8.0 Setup and adjustment The SRH200 transmitter is ready to use and does not require any configuration by the user. The factory setup of SRH200 corresponds to the type number ordered. For ordering guide please see data sheet at www.setra.com. If need, the user can change the factory setup by using the optional Setra Configuration Adapter and the Setra Product Configuration Software. -
Page 14: Maintenance
9.0 Maintenance 9.1 Humidity calibration and adjustment Depending on the application and the requirements of certain industries, there might arise the need for periodical humidity calibration (comparison with a reference) or adjustment (brining the device in line with a reference). Calibration and adjustment at Setra Calibration and/or adjustment can be performed by the Setra calibration laboratory. -
Page 15: Accessories
Plastic mounting flange 12mm; black Part configuration adapter SETRAPCA1 Configuration adapter transmitter to RS23 and USB Part configuration adapter SETRAPCA2 Configuration cable for SRH200 analog Part configuration adapter SETRAPCA3 configuration cable for SRH200 digital & SRH300 Calibration SRH200SCAL SRH200 calibration (ISO) -
Page 16: Returning Products For Repair Or Replacement
If a return is required please call 1-800-257-3872 or email orders@setra.com to obtain an RMA number before sending unit(s) back to us. Once an RMA number has been assigned to you, please send the package back to the below address. Setra Systems, Inc. 159 Swanson Road Boxborough, MA 01719-1304 Attn: RMA # To download return form, please visit Setra’s service page. -
Page 17: Limited Warranty And Limitation Of Repair
No representative or person is authorized to give any warranty other than as set out above or to assume for SETRA any other liability in connection with the sale of its products. For all CE technical questions, contact Setra Systems, USA. EU customers may contact our EU representative Hengstler GmbH, Uhlandstr 49, 78554 Aldingen, Germany... - Page 18 Setra Systems, Inc. 159 Swanson Road, Boxborough, MA 01719 800.257.3872 • www.setra.com...
