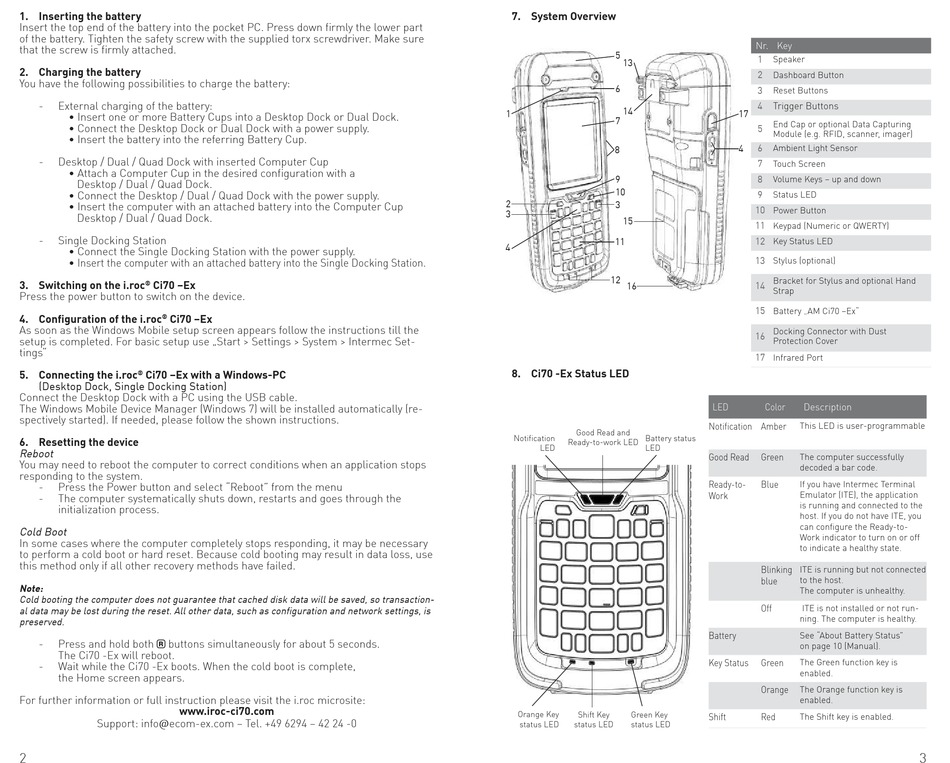

Ecom i.roc Ci70 -Ex Getting Started page 2

1. Inserting the battery
Insert the top end of the battery into the pocket PC. Press down firmly the lower part
of the battery. Tighten the safety screw with the supplied torx screwdriver. Make sure
that the screw is firmly attached.
2. Charging the battery
You have the following possibilities to charge the battery:
- External charging of the battery:
• Insert one or more Battery Cups into a Desktop Dock or Dual Dock.
• Connect the Desktop Dock or Dual Dock with a power supply.
• Insert the battery into the referring Battery Cup.
- Desktop / Dual / Quad Dock with inserted Computer Cup
• Attach a Computer Cup in the desired configuration with a
Desktop / Dual / Quad Dock.
• Connect the Desktop / Dual / Quad Dock with the power supply.
• Insert the computer with an attached battery into the Computer Cup
Desktop / Dual / Quad Dock.
- Single Docking Station
• Connect the Single Docking Station with the power supply.
• Insert the computer with an attached battery into the Single Docking Station.
®
3. Switching on the i.roc Ci70 –Ex
Press the power button to switch on the device.
4. Configuration of the i.roc
® Ci70 –Ex
As soon as the Windows Mobile setup screen appears follow the instructions till the
setup is completed. For basic setup use „Start > Settings > System > Intermec Set-
tings"
®
5. Connecting the i.roc Ci70 –Ex with a Windows-PC
(Desktop Dock, Single Docking Station)
Connect the Desktop Dock with a PC using the USB cable.
The Windows Mobile Device Manager (Windows 7) will be installed automatically (re-
spectively started). If needed, please follow the shown instructions.
6. Resetting the device
Reboot
You may need to reboot the computer to correct conditions when an application stops
responding to the system.
- Press the Power button and select "Reboot" from the menu
- The computer systematically shuts down, restarts and goes through the
initialization process.
Cold Boot
In some cases where the computer completely stops responding, it may be necessary
to perform a cold boot or hard reset. Because cold booting may result in data loss, use
this method only if all other recovery methods have failed.
Note:
Cold booting the computer does not guarantee that cached disk data will be saved, so transaction-
al data may be lost during the reset. All other data, such as configuration and network settings, is
preserved.
Press and hold both R buttons simultaneously for about 5 seconds.
-
The Ci70 -Ex will reboot.
- Wait while the Ci70 -Ex boots. When the cold boot is complete,
the Home screen appears.
For further information or full instruction please visit the i.roc microsite:
www.iroc-ci70.com
Support: info@ecom-ex.com – Tel. +49 6294 – 42 24 -0
2
7. System Overview
5
13
6
14
1
7
8
9
10
2
3
3
15
11
4
12
16
8. Ci70 -Ex Status LED
Good Read and
Notification Ready-to-work LED Battery status
LED LED
Orange Key
Shift Key Green Key
status LED status LED
status LED
Nr. Key
1
Speaker
Dashboard Button
2
3 Reset Buttons
Trigger Buttons
4
17
End Cap or optional Data Capturing
5
Module (e.g. RFID, scanner, imager)
6 Ambient Light Sensor
4
7
Touch Screen
8 Volume Keys – up and down
9
Status LED
10 Power Button
Keypad (Numeric or QWERTY)
11
12
Key Status LED
13
Stylus (optional)
Bracket for Stylus and optional Hand
14
Strap
Battery „AM Ci70 –Ex"
15
Docking Connector with Dust
16
Protection Cover
17
Infrared Port
LED Color Description
Notification Amber This LED is user-programmable
The computer successfully
Good Read Green
decoded a bar code.
Blue
If you have Intermec Terminal
Ready-to-
Emulator (ITE), the application
Work
is running and connected to the
host. If you do not have ITE, you
can configure the Ready-to-
Work indicator to turn on or off
to indicate a healthy state.
Blinking
ITE is running but not connected
to the host.
blue
The computer is unhealthy.
Off ITE is not installed or not run-
ning. The computer is healthy.
Battery See "About Battery Status"
on page 10 (Manual).
Key Status Green The Green function key is
enabled.
Orange The Orange function key is
enabled.
Shift Red The Shift key is enabled.
3
