Summary of Contents for MedViron OBT 46

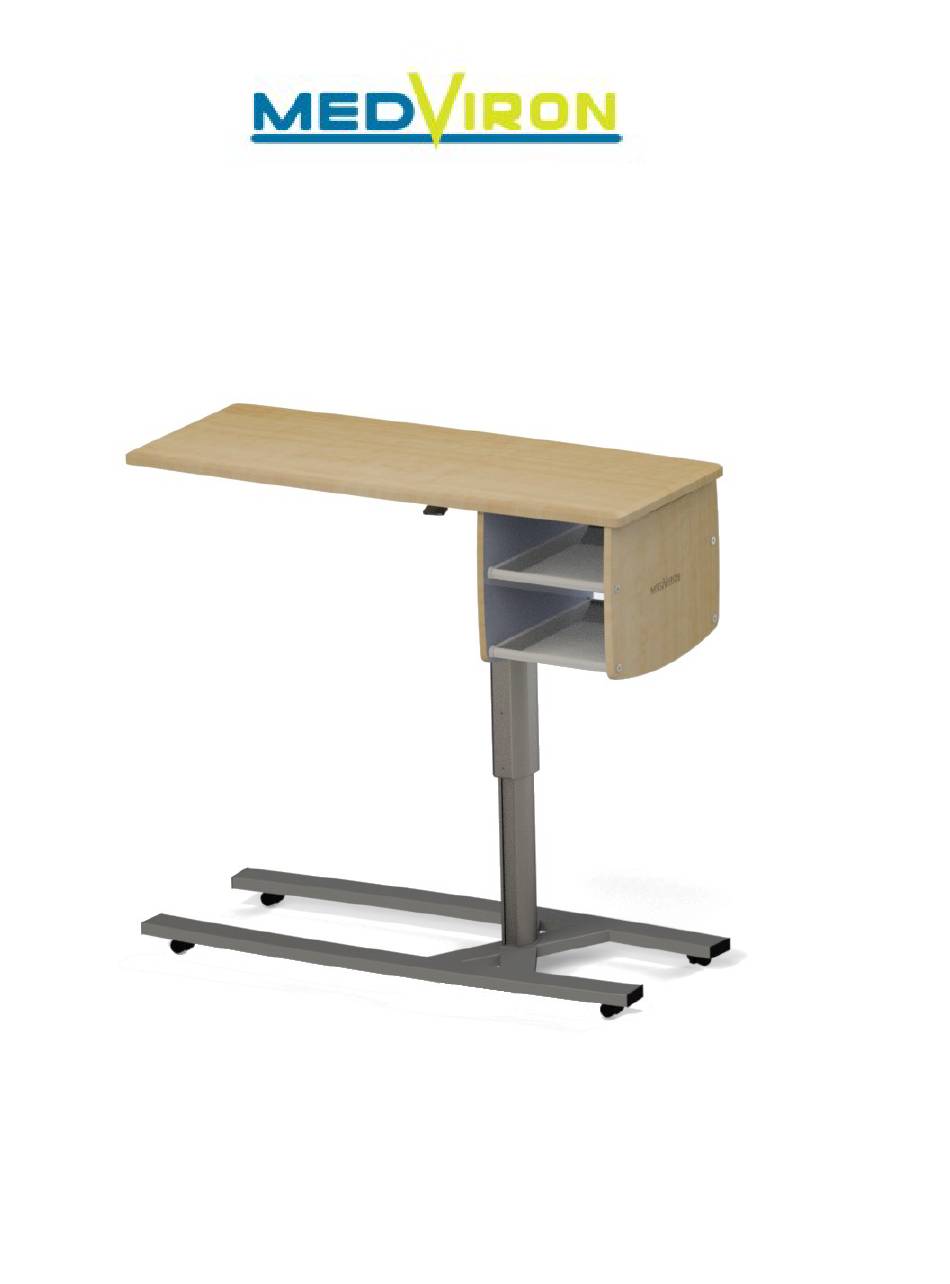

- Page 1 Service Manual 46” Medviron Overbed Table...
- Page 2 Table of Contents Section 1 Cable Tension Adjustment Section 2 Caster Replacement Section 3 Plug Replacement Section 4 Top Replacement Section 5 Gas Spring Replacement Section 6 Pedestal Service Section 7 Vanity Service...
- Page 3 Section 1: Service Instructions OBT 46” – Cable Tension Adjustment This manual is intended for trained professionals for adjustment of the Knú Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. The overbed table is designed with a system that allows for adjustment of the gas spring cable tension in the field.
- Page 4 Section 2: Service Instructions for MedViron Overbed Table Caster Replacement This manual is intended for trained professionals for adjustment of the MedViron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools required ½”...
- Page 5 Section 3: Service Instructions MedViron Overbed Table Base Plug Replacement This manual is intended for trained professionals for adjustment of the MedViron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools required Soft Mallet or Hammer ...
- Page 6 Section 4: Service Instructions OBT 46” Top Replacement This manual is intended for trained professionals for adjustment of the Medviron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools required #3 Phillips Screwdriver (powered driver not recommended) 4.0 Remove the top...
- Page 7 Section 5: Service Instructions – Gas Spring Replacement MedViron 46” Overbed Table This manual is intended for trained professionals for adjustment of the MedViron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty.
- Page 8 Remove the top as shown in Section 4. Remove the cover plate and wrench as shown in Section 1. Loosen the cable turnbuckle by first loosening the lock nut, then unfasten the end of the cable attached to the handle. Next remove the other end of the cable from the gas spring lever (Figure 1).
- Page 9 Remove the base. Place the shelf or drawer pedestal unit on a soft surface such as a blanket. Place another blanket or padding on the top side of the pedestal. Lay the column on the pedestal and remove four bolts (Figure 3). Remove the bottom washer.
-
Page 10: Section 6: Service Instructions
Attach the hanging pedestal and shelves as described in Section 6. 5.16 Let the unit sit for 10 minutes to check for downward drift. If unit drifts, adjust as shown in Section 1. 5.17 Reattach cover plate with wrench and gasket. Section 6: Service Instructions MedViron Overbed Table 46” Pedestal... - Page 11 This manual is intended for trained professionals for adjustment of the MedViron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools that may be required #2 & #3 Phillips screwdriver 5mm Hex drive ...
- Page 12 6.2 Replacing sides With the pedestal on its side, loosen (2 or 4, depending on configuration) connector bolts with a 5mm hex drive or wrench. Remove the side (Figure 3). Make sure the washers stay on top of the rods. If this is a two shelf unit, place the new side on the washers and reattach with the connector bolts.
- Page 13 Section 7: Service Instructions Vanity Tray Replacement This manual is intended for trained professionals for adjustment of the Medviron Overbed Table. Any action not outlined in this manual may result in voiding of the warranty. Tools that may be required...
- Page 14 (3) screws on the same rail. If the vanity is too tight, use the same process but move the rail slightly farther away from the vanity. Figure 2...
