3.
INSTALLATION
If the sensor is to be mounted in a radiation shield, refer to the radiation shield manual
section for mounting details. Typical installations are shown below.
Sensors not installed in a radiation shield should be mounted in a representative
location having good airflow and shaded from sunlight or other heat radiation sources
that would affect measurement of relative humidity or temperature.
3.1.
Mounting Instructions
085-9800 Manual Rev A.doc

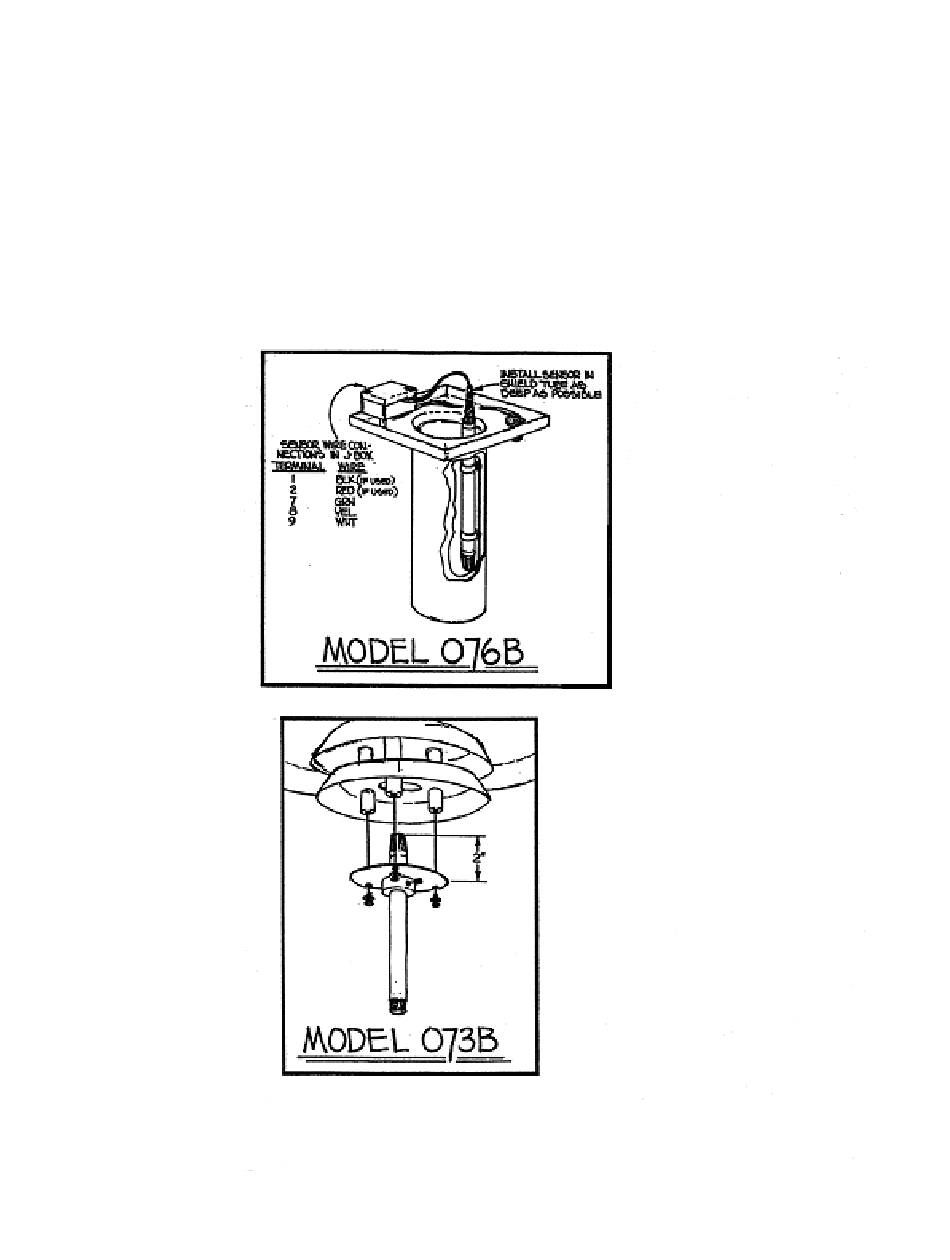

Figure 2 Radiation Shield Installation
Page 9
