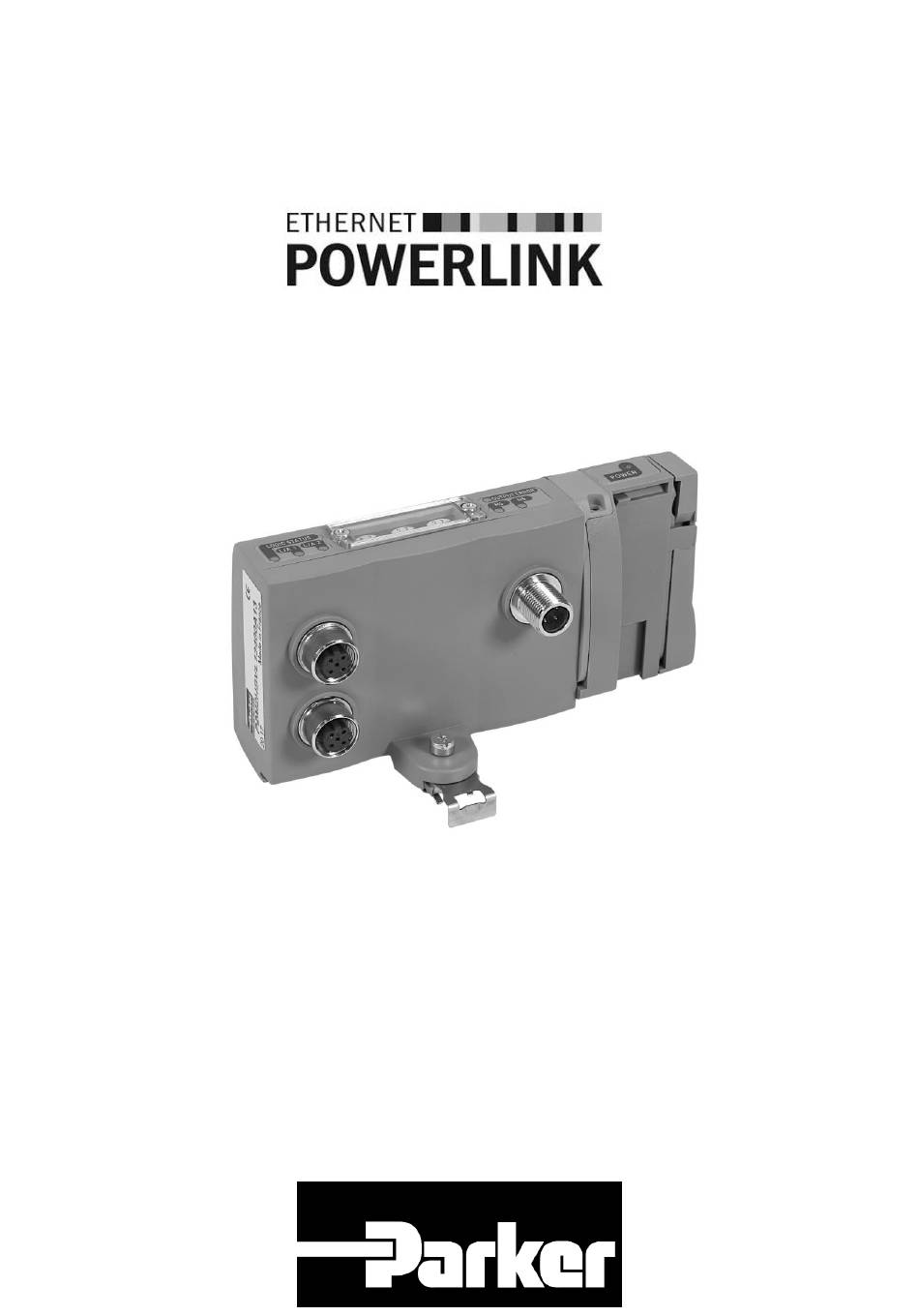

- Page 1 P2M Node 24 DO P2M2HBVW12400 USER MANUAL...
- Page 2 P2M2HBVW12400 User Manual Pneumatic Division Page 2 /15 30060921501W05 27031 Evreux - France Feb. 2019...
-
Page 3: Table Of Contents
P2M Node 24 DO addressing used with Moduflex Valve System P2M Node 24 DO addressing used with H Micro Valve Series P2M Node 24 DO addressing used with H Universal ISO Series – 15407-2 & 5599-2 P2M Node 24DO Electrical Connections... -
Page 4: Product General Overview
User Manual Product general overview Purpose of the P2M Node 24 DO The P2M Node 24DO can be used with either the Moduflex Valve System, H Micro or H ISO 15407-2 and 5599-2 Valves Series. Depending on the valve series the module is connected to, it can control up to 24 pilot solenoid valves, as shown on the... -
Page 5: Technical Data
P2M2HBVW12400 User Manual Technical Data P2M Node 24DO electrical specifications Description Value Network power supply According to Ethernet PowerLink standard Speed communication According to Ethernet PowerLink standard Auxiliary power supply Voltage 20,4 Vdc to 26,4 Vdc Current limit per channel 150 mA Max. -
Page 6: P2M Node 24 Do Addressing Used With Moduflex Valve System
P2M2HBVW12400 User Manual Solenoid Pilots addressing and Process Data mapping P2M Node 24DO addressing used with Moduflex Valve System The P2M Node 24DO used with Moduflex Valve System can handle up to 19 pilot solenoid valves. Addressing is as shown below: EV01 EV02 EV03 EV04 EV05 EV06 EV07 EV08 EV09... -
Page 7: P2M Node 24 Do Addressing Used With H Universal Iso Series – 15407-2 & 5599-2
P2M2HBVW12400 User Manual P2M Node 24DO addressing used with H Universal ISO Series – 15407-2 & 5599-2 The P2M Node 24DO used with H ISO Series – 15407-2 – sizes 02 & 01 – sizes 1, 2 & 3 – can handle up to 24 pilot solenoid valves. -
Page 8: Diagnostic
P2M2HBVW12400 User Manual Local Visual Diagnostic The P2M Node 24DO module offers local diagnostics through 6 LED’s status with interpretation described in the table below: Green / Red LED Green LEDs Red LED Green / Red LED Description Troubleshooting Description Troubleshooting Description Troubleshooting... -
Page 9: Auxiliary Power Management
P2M2HBVW12400 User Manual Auxiliary Power Management Power supply diagnostic through LED The P2M Node 24DO monitors the auxiliary power supply voltage and manages two levels of diagnostics; warning and error range. The normal range can be modified through parameter data. Auxiliary Power Supply Green LED Description... -
Page 10: Rotary Switches
(see Local Visual Diagnostic section for details) P2M Node Configuration File The XDD file, documentation and Function Blocks can be downloaded from the P2M Node 24DO web site: • www.parker.com/pde/P2M_IE Mapping of I/O Process Data Process Output Data Mapping: RPDO Byte... -
Page 11: Manufacturer Specific Objects
P2M2HBVW12400 User Manual Manufacturer Specific Objects The manufacturer object are: Index Subindex Type Access Name 0x2001 0x00 USINT Number of entries (0x03) 0x2001 0x01 USINT Solenoids (Channel 1 to 8) ** 0x2001 0x02 USINT Solenoids (Channel 9 to 16) ** 0x2001 0x03 USINT... -
Page 12: Manufacturing Specific Object – System Commands
P2M2HBVW12400 User Manual Process Data Outputs The 24 solenoids are represented by one bit each and they are grouped in 3 Bytes. The LSB (Least Significant Bit) is associated with Solenoid-1 and the MSB (Most Significant Bit) is associated with Solenoid-24. Byte 3 (Index 0x2001 | Subindex 0x03) 1 (Index 0x2001 | Subindex 0x01) -
Page 13: Manufacturing Specific Object – Channel Error
P2M2HBVW12400 User Manual Status / Diagnostic Data and Parameters Manufacturer Specific Object “Clear Switching Cycles” The Manufacturing Specific Object “Clear Switching Cycles” allows the switching cycle counter for the solenoids to be reset to zero. The counter for each solenoid can be reset individually by setting the associated bit on the object –... -
Page 14: Manufacturing Specific Object – Module Info Flag
P2M2HBVW12400 User Manual Status / Diagnostic Data and Parameters Manufacturer Specific Object “Module Info Flag” The Manufacturing Specific Object “Module Info Flag” contains information about possible module states and faults / errors that might affect the module. The faults identified in the module error flag are not recoverable; therefore a power cycle is required to clear them. -
Page 15: Manufacturing Specific Object – Module Error Input
P2M2HBVW12400 User Manual Status / Diagnostic Data and Parameters Manufacturer Specific Object “Module Error Input” The Manufacturing Specific Object “Module Error Input” contains user-friendly diagnostics (in case of errors or faults) provided as Process Data Input. Index Data Type Subindex Access Name Min Value... - Page 16 PARKER Hannifin Manufacturing France SAS Pneumatic Division Europe Parc d'Activités de la Forêt BP 3124 534, rue Henri Becquerel 27031 EVREUX CEDEX - FRANCE P2M Node 24DO User Manual UK30060921501W05 - Release February 2019 www/parker.com/pde/P2M_IE...
