Summary of Contents for Parker P2M Node 24 DO

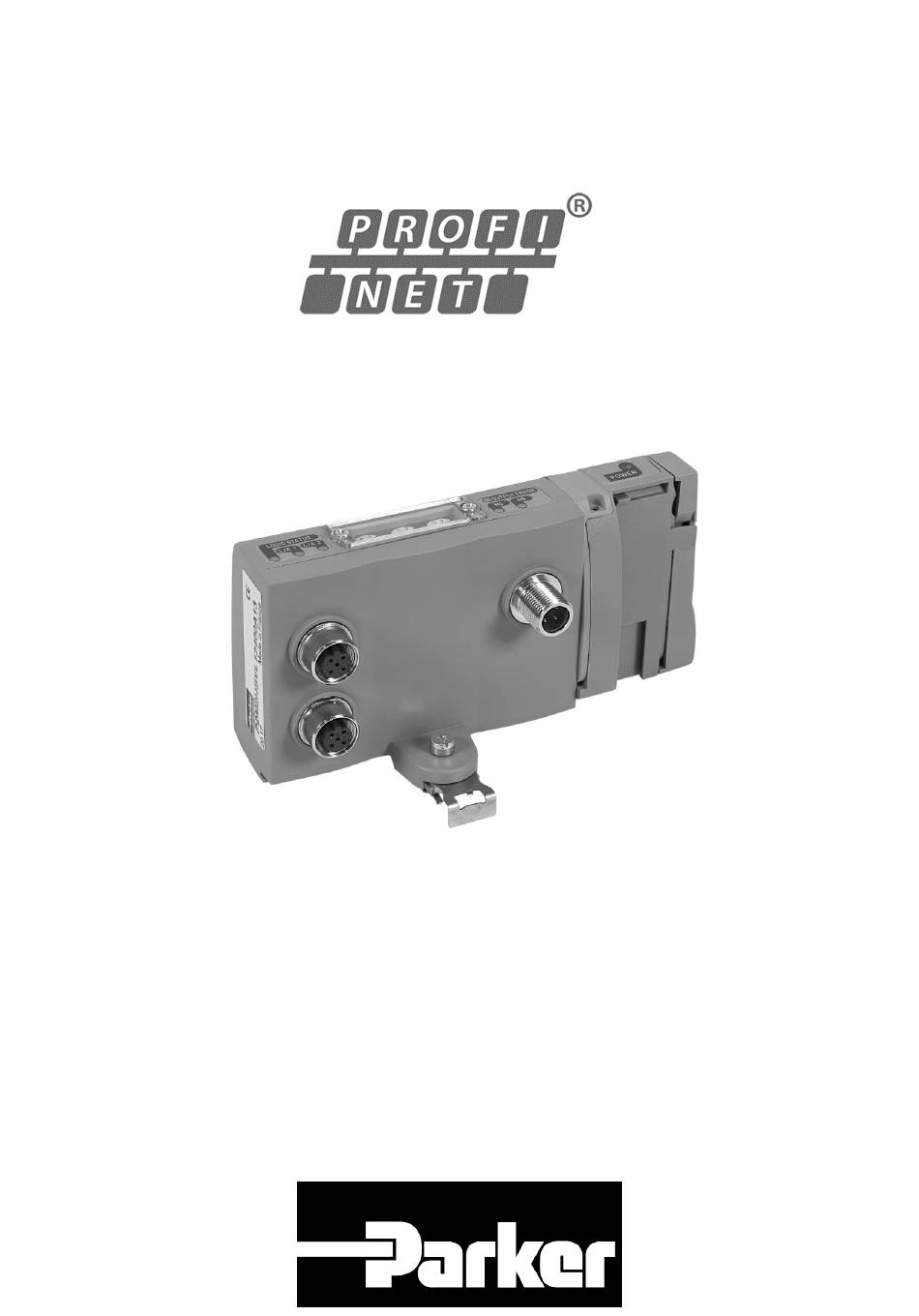

- Page 1 P2M Node 24 DO P2M2HBVN12400 USER MANUAL...
- Page 2 P2M2HBVN12400 User Manual Pneumatic Division Page 2 /17 30060921201W05 27031 Evreux - France Feb 2019...
- Page 3 P2M Node 24 DO addressing used with Moduflex Valve System P2M Node 24 DO addressing used with H Micro Valve Series P2M Node 24 DO addressing used with H Universal ISO Series – 15407-2 & 5599-2 P2M Node 24DO Electrical Connections...
- Page 4 User Manual Product general overview Purpose of the P2M Node 24 DO The P2M Node 24DO can be used with either the Moduflex Valve System, H Micro or H ISO 15407-2 and 5599-2 Valves Series. Depending on the valve series the module is connected to, it can control up to 24 pilot solenoid valves, as shown on the...
- Page 5 P2M2HBVN12400 User Manual Technical Data P2M Node 24DO electrical specifications Description Value Network power supply According to PROFINET standard Speed communication According to PROFINET standard PROFINET Fast Start-Up (FSU) Supported Auxiliary power supply Voltage 20,4 Vdc to 26,4 Vdc Current limit per channel 150 mA Max.
- Page 6 P2M2HBVN12400 User Manual Solenoid Pilots addressing and Process Data mapping P2M Node 24DO addressing used with Moduflex Valve System The P2M Node 24DO used with Moduflex Valve System can handle up to 19 pilot solenoid valves. Addressing is as shown below: EV01 EV02 EV03 EV04 EV05 EV06 EV07 EV08 EV09...
- Page 7 P2M2HBVN12400 User Manual P2M Node 24DO addressing used with H Universal ISO Series – 15407-2 & 5599-2 The P2M Node 24DO used with H ISO Series – 15407-2 – sizes 02 & 01 and 5599-2 – sizes 1, 2 & 3 – can handle up to 24 pilot solenoid valves.
- Page 8 If the reset is performed via hardware, a valid IP-Address must be set and a power cycle is required to restart to normal operations. P2M Node Configuration File The configuration files and integration tools are available for download from the P2M Node 24DO web site: • www.parker.com/pde/P2M_IE Pneumatic Division Page 8 /17 30060921201W05...
- Page 9 P2M2HBVN12400 User Manual Local Visual Diagnostic The P2M Node 24DO module offers local diagnostics through 6 LED’s status with interpretation described in the table below: Green / Red LED Green LEDs Red LED Green / Red LED Description Troubleshooting Description Troubleshooting Description Troubleshooting...
- Page 10 P2M2HBVN12400 User Manual Auxiliary Power Management Power supply diagnostic through LED The P2M Node 24DO monitors the auxiliary power supply voltage and manages two levels of diagnostics; warning and error range. The normal range can be modified through parameter data. Auxiliary Power Supply Green LED Description...
- Page 11 P2M2HBVN12400 User Manual Process Data Outputs Object #01 - Solenoids The Object #01 contains the process output data to the valves. A value of 1 assigned to a bit in the Object #01 indicates that the associated solenoid shall be energized, whereas zero indicates that the power at the solenoid shall be off.
- Page 12 P2M2HBVN12400 User Manual Status / Diagnostic Data and Parameters Object #02 – Switching Cycles Counters The Object #02 contains the 24 switching cycle counters for the valves. The counter values are automatically stored by the module every 30 minutes. Data N°...
- Page 13 P2M2HBVN12400 User Manual Status / Diagnostic Data and Parameters Object #07 – Module Info Flags (Continued) Bit # Module Error Header Fault Description Watchdog Valve µC Set if the watchdog caused the last reset of the output stage Set if any of the (expected) data stored in the EEPROM has been EEPROM Error detected as not-valid Reserved...
- Page 14 Module Info Flags Web Server The P2M Node 24 DO module has web-server capability for monitoring and controlling purposes. The user’s write access to the Objects via web-sever is protected by username / password (Default: PARKER / PARKER). For accessing the module web-server, simply power it up and connect it to the Ethernet Network. The web- server is then accessible by entering the IP-address of the module in the web browser’s address field.
- Page 15 The web server will require the user to enter the current password (left image below) before entering the new value for the field (right image below). The password can be restored to default values (PARKER) with a “Reset to Factory”. The Web-server has four tabs: •...
- Page 16 P2M2HBVN12400 User Manual Web Server Parameters Page Pneumatic Division Page 16 /17 30060921201W05 27031 Evreux - France Feb 2019...
- Page 17 P2M2HBVN12400 User Manual Web Server Network Status Page Ethernet/IP Network Configuration Page Pneumatic Division Page 17 /17 30060921201W05 27031 Evreux - France Feb 2019...
- Page 18 PARKER Hannifin Manufacturing France SAS Pneumatic Division Europe Parc d'Activités de la Forêt BP 3124 534, rue Henri Becquerel 27031 EVREUX CEDEX - FRANCE P2M Node 24DO User Manual UK30060921201W05 - Release February 2019 www/parker.com/pde/P2M_IE...
