5.4.1

Selecting, changing and saving parameters

Display
5.4.1.1

Ramp time for wire inching (P1)

The wire inching starts with a speed 1.0 m/min for 2 secs. It is subsequently increased to a ramp function
to 6.0 m/min. The ramp time can be set between two ranges.
During wire inching, the speed can be changed by means of the welding power rotary knob. Changing the
speed has no effect on the ramp time.
099-0M37XM-EW501
16.07.2018
B
A
B
Setting/selection
Wire inching / wire return ramp time
0 = -------- normal inching (10 s ramp time)
1 = -------- fast inching (3 s ramp time) (ex works)
Tapping start for latched and special latched operation
0 = -------- no 4-cycle inching start
1 = -------- 4-cycle inching start possible (ex works)
HOLD function
0 = -------- HOLD values are not displayed
1 = -------- HOLD values are displayed (Ex works)
Correction or nominal voltage display
0 = -------- Correction voltage display (ex works).
1 = -------- Absolute nominal voltage display.
Unit system > see 5.4.1.5 chapter
0 = -------- metric system (ex works)
1 = -------- Imperial system
Functional characteristics
Special parameters (advanced settings)
+
A
B

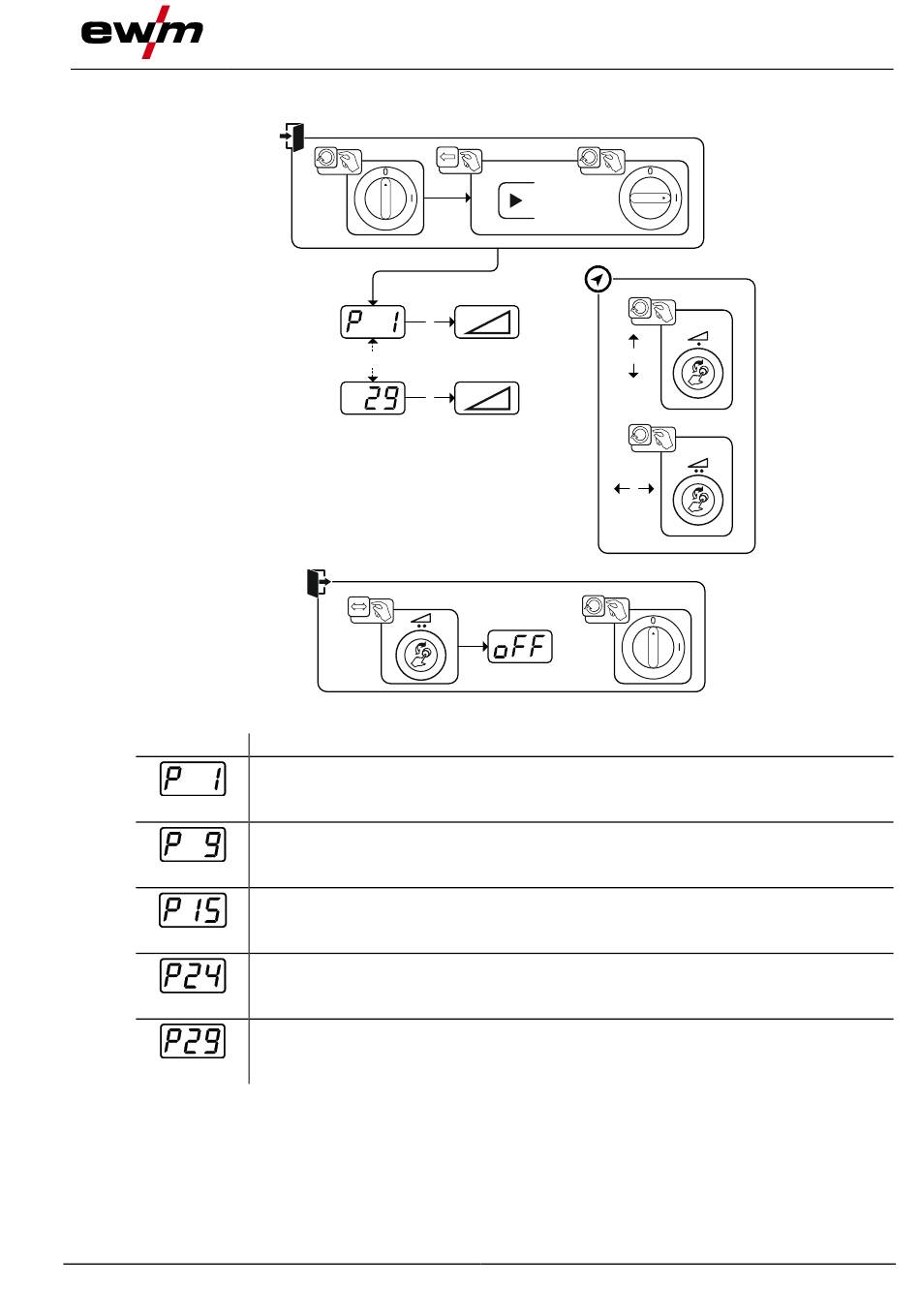

Figure 5-20
