Functional characteristics
MIG/MAG welding
5.2.1.3

Welding power (operating point)

The welding power is adjusted according to the principle of one-knob operation. The user can set their
operating point optionally as wire feed speed, welding current or material thickness. The optimum welding
voltage for the operating point is calculated and set by the welding machine. If necessary, the user can
correct this welding voltage > see 5.2.1.5 chapter.
5.2.1.4

Accessory components for operating point setting

The operating point can be set at various accessory components as well, such as remote control, special
welding torches or robot and industrial bus interfaces (optional interface for automated welding required,
not available for all machines of this series).
See the operating instructions for the machine in question for a more detailed description of the individual
machines and their functions.
5.2.1.5

Arc length

When required, the arc length (welding voltage) can be adjusted for the welding task in hand by +/– 9.9 V.
16

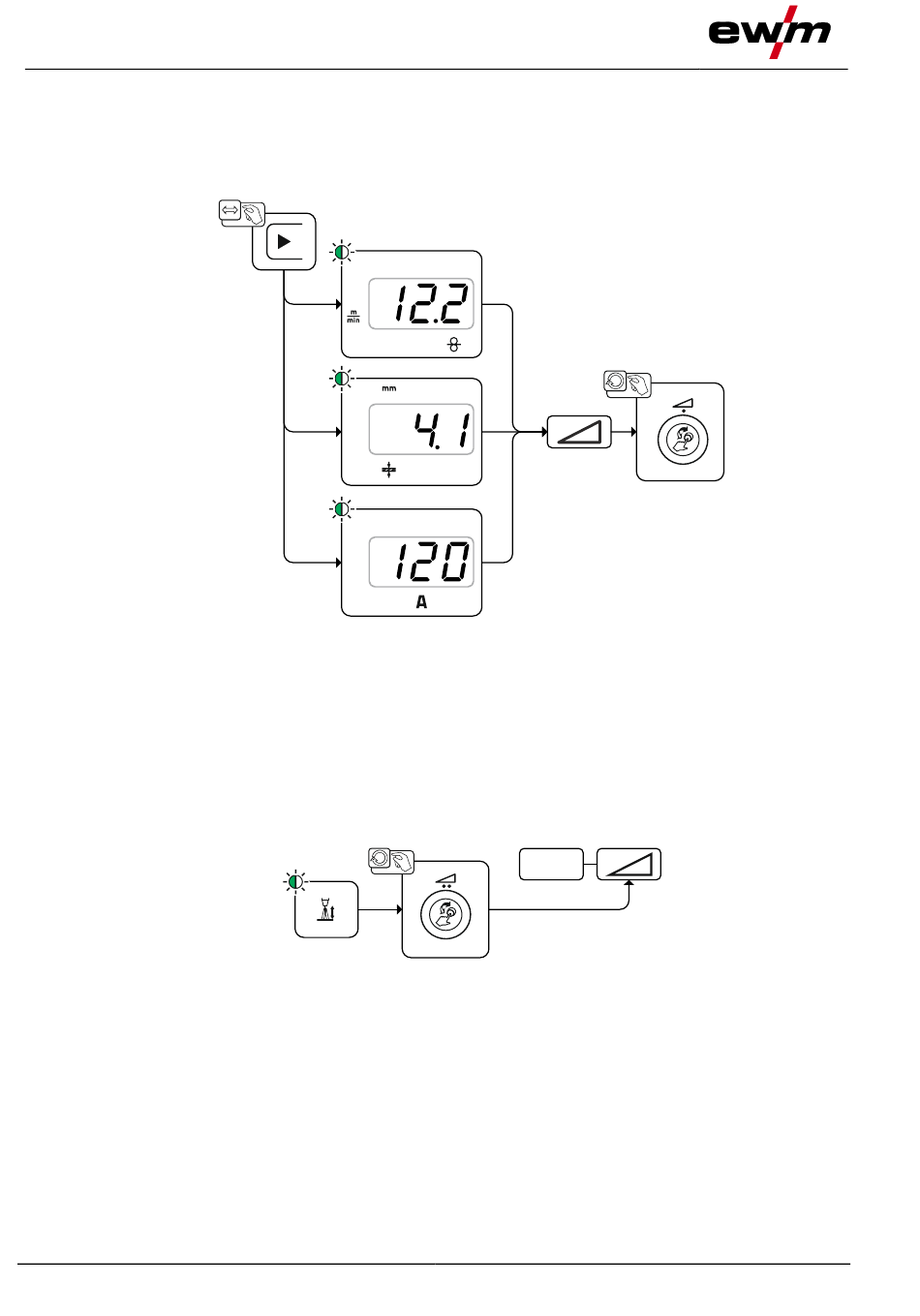

Figure 5-7
Figure 5-8
