Summary of Contents for Grundig GSB 600 NFC

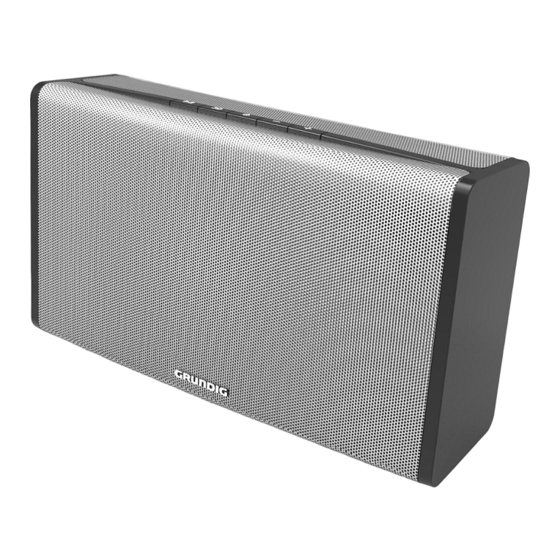

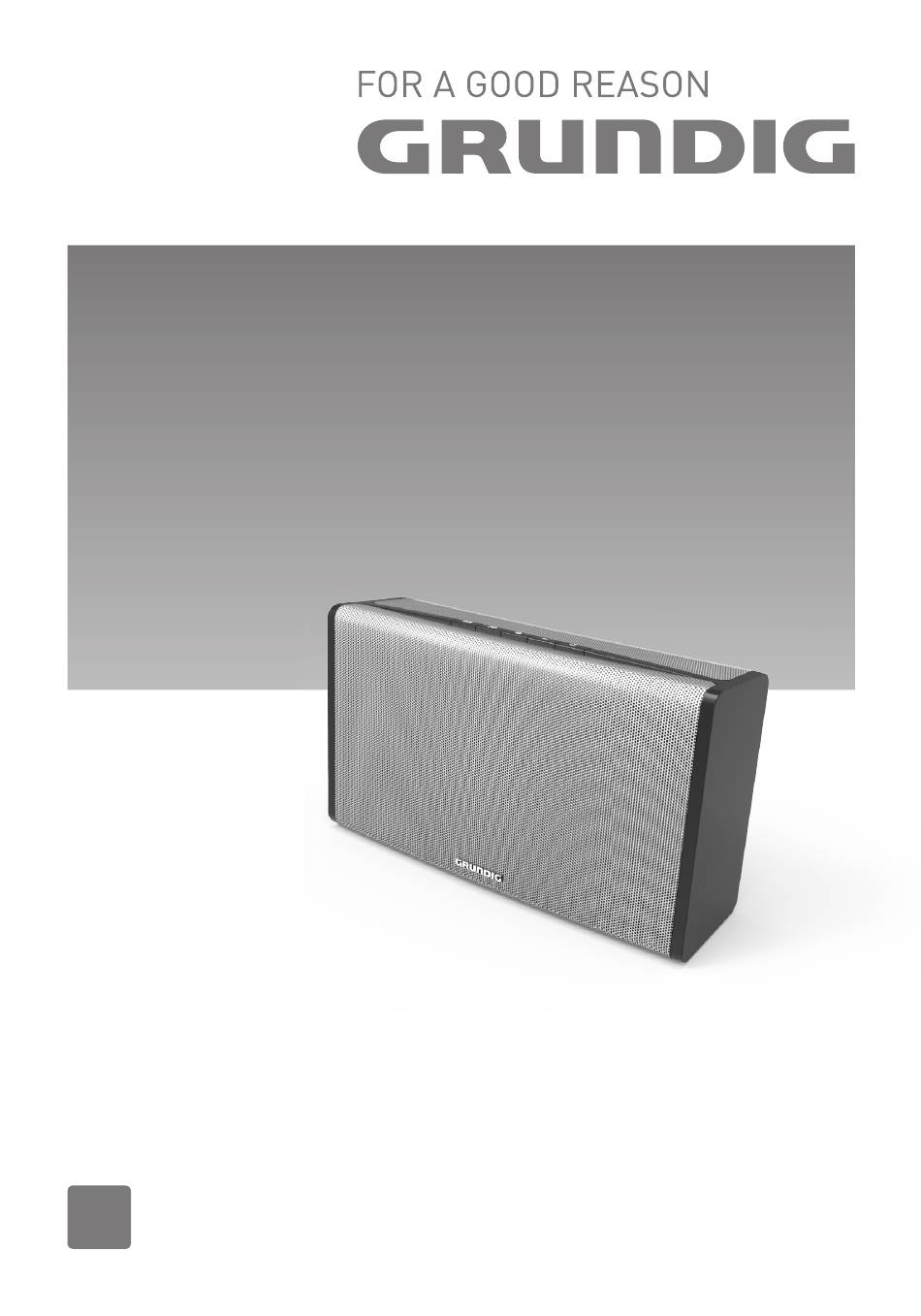

- Page 1 BLUETOOTH SPEAKER GSB 600 NFC...
-
Page 2: Table Of Contents
CONTENTS ---------------------------------------------------------------------------------------------------------------------------------- 3 SET-UPANDSAFETY RF Exposure Warning Important battery information Warning 4 OVERVIEW Bluetooth device compatibility Control elements Connections LED indicator 6 CONNECTIONANDPREPARATION Connecting the power adapter Charging the device Connecting external devices Charging a Bluetooth/USB Device Attaching the tilt lock 8 OPERATING Bluetooth function Disconnect the Bluetooth device L ogging on and connecting a mobile telephone or a tablet PC (NFC standard) Speaker phone Play Audio signal from an external device Power saving mode Switch off 11 INFORMATION Technical data Environmental note ENGLISH 2... -
Page 3: Rf Exposure Warning
SET-UPANDSAFETY - ---------------------------------------------------------------------------- Please note the following instructions when set- Note: ting up the device: D o not connect any other equipment while the device is switched on. Switch off the oth- This device is designed for playback of audio er devices as well before connecting them. signals. Any other use is expressly prohibited. O nly plug the power adapter into the mains Make sure there is adequate ventilation when socket after you have connected the exter- positioning the device. There must be a free nal devices. Make sure the power adapter space of at least 10 cm behind the device. Do is freely accessible. not place objects on the ventilation slots. RFExposureWarning Do not cover the device with newspapers, ta- ble cloths, curtains, etc. This equipment must be installed and operated in acordance with provided instructions and Please note when deciding where to put the the antenna(s) used for this transmitter must be device that furniture surfaces are covered by installed to provide a separation distance of... -
Page 4: Overview
OVERVIEW ----------------------------------------------------------------------------------------------------------------------------------- – Ó AUXIN 5V > 1A DCIN16V ENGLISH 4... -
Page 5: Bluetooth Device Compatibility
OVERVIEW ----------------------------------------------------------------------------------------------------------------------------------- Bluetoothdevicecompatibility Controlelements Your GSB 600 NFC connects with all Bluetooth See the figure on page 3. Devices that support the A2DP profile including S tarts the Bluetooth pairing . the most smartphones, laptops and tablets. S tarts playback; pauses playback. S witches between Bluetooth mode and accept call/hang up. Surround sound On/Off. S witches the device in and out of standby mode. – D ecreases the volume. I ncreases the volume. P osition for NFC login (near field communication) of smartphones and tablet PCs. A B luetooth LED. C harging LED. T hread for tilt lock. Connections USB USB port for charging a USB 5V... -
Page 6: Connectionandpreparation
CONNECTIONANDPREPARATION - ---------------------------------- Connectingthepoweradapter Chargingthedevice 1 The power adapter to the device will automat- Note: ic recharge the internal rechargeable battery. Check that the mains voltage on the type – T he display lights up orange during the plate on the power adapter corresponds to charging process and goes out once the your local mains supply. battery is charged. If this is not the case, contact your specialist dealer. Notes: Charging takes up to approx. 4 hours. 1 Connect the single plug of the power adapter into the »DCIN16V« socket. -
Page 7: Connecting External Devices
CONNECTIONANDPREPARATION - ---------------------------------- Connectingexternaldevices Attachingthetiltlock The tilt lock can be used to improve the stability Note: of the device. Switch the device off before you connect external devices. 1 Screw the tilt lock into the »C« thread. 1 U se a standard audio adapter to connect the audio outputs of the external device to the »AUXIN« (ø 3.5 mm) socket. Notes: The GBS 600 NFC will auto-switch into AUX IN mode from Bluetooth mode after insert AUX IN cable to the device. -
Page 8: Operating
OPERATING - ----------------------------------------------------------------------------------------------------------------------------- ConnectingapairedBluetooth Device Notes: Y ou will only need to pair your Bluetooth Bluetoothfunction device with the unit one time. PairingBluetoothdevice T he next time your Bluetooth device and the unit are in range of each other, and the Blue- Note: tooth feature is turned on, they will automati- M ake sure that AUX IN cable is removed cally connect. IN« socket. Otherwise, it from the »AUX... -
Page 9: Disconnect The Bluetooth Device
OPERATING - ----------------------------------------------------------------------------------------------------------------------------- DisconnecttheBluetoothdevice Loggingonandconnectinga mobiletelephoneoratabletPC 1 Log out the Bluetooth device currently logged II« on the GSB on or press and hold down » (NFCstandard) 600 NFC. As an alternative to the Bluetooth log on you – The indicator »A« will flash blue can simply log on a mobile telephone or a tablet PC which conforms to the standard NFC (near ReconnectingtheBluetoothdevice field communication) on to your GSB 600 NFC. 1 If you move out of range or turn off the Blue- Mobile phones and tablet PCs with appropriate tooth feature on your device, the unit will dis- hardware and software are suitable. connect from your device. 1 Press and hold » « for 2 seconds to turn on the 2 To reconnect, simply access the Bluetooth unit. Manager on your Bluetooth device and select 2 Hold the mobile phone or the tablet PC on the GSB 600 NFC. -
Page 10: Speaker Phone
OPERATING - ----------------------------------------------------------------------------------------------------------------------------- Speakerphone Powersavingmode You can also use your GSB 600 NFC as a The device will enter a power saving mode if no speaker phone for telephone conversations. audio signal is played for 30 minutes. 1 To accept a call, press » II«. 1 Press and hold » « for 2 seconds to switch on the device again. 2 To end a call, press » II« again. Switchoff PlayAudiosignalfromanexter- naldevice 1 Press » « to switch off the unit. Alternative you can listen to the sound of a con- nected external device (e.g. a MP3 player) through your device. Notes:... -
Page 11: Technical Data
Therefore, do not dispose the product with normal domestic waste at the end The type plate is located on the bottom of the of its service life. device. Take it to a collection point for the recycling of CEdeclarationofconformity electrical and electronic equipment. This is indi- cated by this symbol on the product, in the oper- You can find the CE declaration of conformity for ating manual and on the packaging. the device in the form of a pdf file on the Grundig Homepage www.grundig.com/download/doc. Please consult your local authorities to learn the nearest collection point. Powersupply Help protect the environment by recycling used Power Adaptor:: products Input: AC 100 – 240 V ~ 50/60 Hz Output: 16 V > 1.59 A Maxpowerconsumption Operation: < 32 W Stand-by: < 0.5 W... - Page 12 Grundig Intermedia Gmb H Beuthener Strasse 41 D–90471 Nürnberg, Germany www.grundig.com 72011 412 6200 14/44...
