USER'S MANUAL
RCTI-DY(II)
Endo Motor
*The unit must be installed by a qualified engineer.
*Only for user by dental professionals.
*Read this operation manual carefully before installation or operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCTI-DY and is the answer not in the manual?

Questions and answers

Related Manuals for Denjoy RCTI-DY

Summary of Contents for Denjoy RCTI-DY

  • Page 1 Rev. 02/01/18 VER SMS-GG02 20140828-EN USER’S MANUAL RCTI-DY(II) Endo Motor *The unit must be installed by a qualified engineer. *Only for user by dental professionals. *Read this operation manual carefully before installation or operation.

  • Page 2: Table Of Contents

    Rev. 02/01/18 VER SMS-GG02 20140828-EN CONTENTS SECTION 1: GENERAL INTRODUCTION SECTION 2: MAIN TECHNICAL INDEX SECTION 3: SYMBOL SECTION 4: PRODUCT STRUCTURE SECTION 5: INSTALLATION AND SETTING SECTION 6: PREPARATION SECTION 7: OPERATION SECTION 8: OPERATION AFTER USE SECTION 9: MANTENANCE & SERVICE SECTION 10: PRECAUTION SECTION 11: SELF-CHECKING SECTION 12: TOUBLESHOOTING GUIDE...
  • Page 3 The whole operation process should follow user’s manual strictly. DENJOY DENTAL CO., LTD has right to improve shape and structure of the device, change any information and technical specification of this manual all the time, and no need to notice the user in advance.

  • Page 4: Section 1: General Introduction

    Rev. 02/01/18 VER SMS-GG02 20140828-EN SECTION 1: GENERAL INTRODUCTION RCTI-DY (II) Endo Motor is an endodontic operation instrument which combined with both endo motor and apex locator function. Endo motor function is a kind of endodontic micromotor to drive NiTi instruments,...
  • Page 5 10, The Apex locator function can preset the Apex area, when the rotary file arrived to the preset Apex area, the machine will stop rotary. Product performance introduction RCTI-DY (II) Endo Motor 2in1 adapted micro-electronic control technology in order to reduce the working intensity for the dentists. Following the feature: 1:1 HP contra angle can provide 100-650 r/min adjustable speed.

  • Page 6: Section 2: Main Technical Index

    5, Long press POWER button for turn on/off. 6, When the battery need to be charged, the machine will alarm. SECTION 2: MAIN TECHNICAL INDEX Model Name RCTI-DY (II) Trade Name JoySmart Anti-shock type Built-in power supply Anti-shock level...

  • Page 7: Section 3: Symbol

    Rev. 02/01/18 VER SMS-GG02 20140828-EN CE Port Output Voltage Peak: <350mV Apical Constriction Reference Value: 0.0±0.1、0.5±0.1 Measuring Error: 0.0-0.5 Apical Constriction Error: <0.5mm SECTION 3: SYMBOL The following symbols may appear in this manual, on the label, or on it’s accessories.

  • Page 8: Section 4: Product Structure

    Rev. 02/01/18 VER SMS-GG02 20140828-EN Refer to instruction manual / booklet The device should not be used after the end of the shown or the day DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

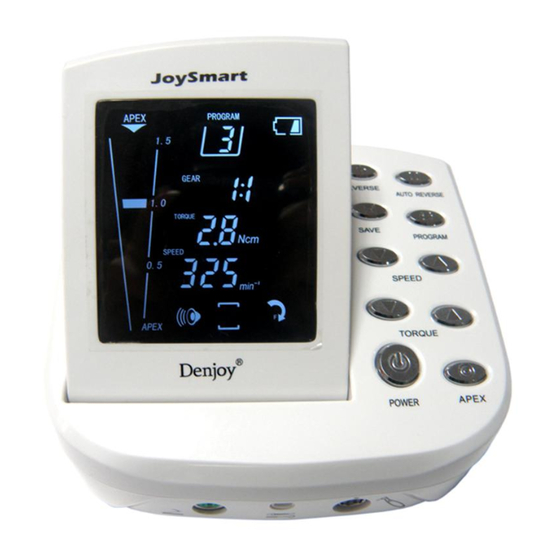

  • Page 9 Rev. 02/01/18 VER SMS-GG02 20140828-EN RCTI-DY (II) Endo Motor 2in1 is mainly combined by main unit, handle, foot pedal connecting wire and adapter. Main unit is mainly combined by the outer shell, controlling circuit, L-Battery, output connector and operation display LCD screen. Handle is mainly combined by the metal shell, Motor.
  • Page 10 Rev. 02/01/18 VER SMS-GG02 20140828-EN Foot Petal Charger Handpiece Motor Holder NEW MOTOR HANDPIECE The material of motor handpiece for the current JoySmart endo motor with apex locator is white special plastics. The new motor handpiece will be much lighter and can match better with the contra angle.
  • Page 11 Rev. 02/01/18 VER SMS-GG02 20140828-EN...

  • Page 12: Section 5: Installation And Setting

    Rev. 02/01/18 VER SMS-GG02 20140828-EN SECTION 5: INSTALLATION AND SETTING...
  • Page 13 Rev. 02/01/18 VER SMS-GG02 20140828-EN 1, How to connect the foot pedal Connected foot pedal and then put the foot pedal plug into the related socket 2 How to connect the handpiece Connect the handle set cable into the related socket, please connect the point according to the red indication showed on the plug.
  • Page 14 Rev. 02/01/18 VER SMS-GG02 20140828-EN Torque setting: Hold press torque increase or decrease button and the torque will keep lasting increase or decrease quickly. Press the torque increase or decrease button once, then the torque will increase or decrease 0.1N.cm。 When the gear displays 1:1 on the LCD, then only 1:1 contra angle is needed.
  • Page 15 Rev. 02/01/18 VER SMS-GG02 20140828-EN Picture Description This button only can be adjusted when the machine stops working. After setting up the convenience program, please hold press the saving button for memorize the setting. If you didn’t memorize the setting by pressing this button, the program will go back to the original setting.
  • Page 16 Rev. 02/01/18 VER SMS-GG02 20140828-EN Picture Description Apex setting button, press once for determine the apex position and in the same time displays on the LCD screen. During the operation, when the file exceeds the preset apex position, then the machine will reverse automatically.

  • Page 17: Section 6: Preparation

    Rev. 02/01/18 VER SMS-GG02 20140828-EN Picture Description then the file go back to normal rotation again. NOTE: During the use of both Endo motor and Apex locator function, Endo file will reverse automatically according to the preset torque as well as the preset Apex position. A display for the conditions between the preset torque and working torque Apex locating display...

  • Page 18: Section 7: Operation

    Rev. 02/01/18 VER SMS-GG02 20140828-EN 6,Adjust the specification of the machine according to the process of the endodontic treatment. 7, Make sure the LCD display shows exact specification of the needed endodontic treatment. SECTION 7: OPERATION 1,Charger 1) Connect the charger to the main unit and then connect the plug of the charger to the Power outlet 2) When the machine is charging, connect the charger to the power outlet and the mark of battery indicates will flash.

  • Page 19: Section 8: Operation After Use

    Rev. 02/01/18 VER SMS-GG02 20140828-EN When activate the functions of endo motor and apex locator together, the following spare parts are needed. During this function status, the machine will start Endo motor and Apex location function in the same time, when the rotary file reaches the preset Apex area, the machine will automatically withdraw until the resistance released.
  • Page 20 Rev. 02/01/18 VER SMS-GG02 20140828-EN 2,Please pull out the rotary file after use. During install or Disassemble the rotary file,please be careful and don’t get your finger hurt. 3,Please disassemble the handpiece cable and foot pedal after use the machine. 4,Please recharge the machine until the power is enough for next operation。...

  • Page 21: Section 10: Precaution

    Rev. 02/01/18 VER SMS-GG02 20140828-EN sterilize the operation handpiece and handpiece connection cable. 3) Cleaning for other parts ·When the main unit, adapter and foot pedal need to be cleaned, please wipe them with Neutral detergent and then wipe with damp cloth. Please note: Main unit, adapter and foot pedal can not be cleaned by Paint thinner, gasoline type cleaning solution.
  • Page 22 Rev. 02/01/18 VER SMS-GG02 20140828-EN whole operation process should according to user’s manual strictly. WARNING Please wear a pair of insulated gloves during the operation. This product is not waterproof, so as far as possible without rendering, or liquid such as water on the machine to prevent short circuit caused by heat or rust and other damage to the machine.

  • Page 23: Section 11: Self-Checking

    Rev. 02/01/18 VER SMS-GG02 20140828-EN phenomena in advance in the oral cavity, operating outside inspection. If feel any abnormal phenomenon, users are requested to promptly stop using and contact the dealer. SECTION 11: SELF-CHECKING Please self-checking the machine at the following process 1) Please check the power can be turned on/off in good condition.
  • Page 24 Rev. 02/01/18 VER SMS-GG02 20140828-EN The setting The machine is still on operation, Release the foot cannot be pedal. changed. Button is broken. Contact with your dealer. The operation Make sure the connection is correct. handpiece Hanpiece or connection cable is broken. does not Contact with your dealer working...

  • Page 25: Section 13: Environmental Requirements

    Rev. 02/01/18 VER SMS-GG02 20140828-EN SECTION 13: ENVIRONMENTAL REQUIREMENTS OPERATING CONDITIONS Ambient temperature: 5℃ ~ 40℃ Relative humidity range: ≤80% Atmospheric pressure: 70kPa~ 106kPa STORAGE AND SHIPPING CONDITIONS Ambient temperature: -40℃ ~ 55℃ Relative humidity range: ≤80% Atmospheric pressure: 50kPa ~ 106kPa Equipment is not suitable for storage in the presence of sunlight, rain, dust, and corrosive gasoline and volatile without poor ventilation.
  • Page 26 Table 1 Guidance and manufacturer’s declaration - electromagnetic emissions The [RCTI-DY （Ⅱ） ] is intended for use in the electromagnetic environment specified below. The customer or the user of the [RCTI-DY（Ⅱ）] should assure that it is used in such an environment...
  • Page 27 It may be necessary to take mitigation measures, such as re-orienting or relocating the [RCTI-DY （Ⅱ） ] or shielding the location. Table 2 Guidance and manufacturer’s declaration - electromagnetic emissions...
  • Page 28 Rev. 02/01/18 VER SMS-GG02 20140828-EN The [RCTI-DY （Ⅱ） ] is intended for use in the electromagnetic environment specified below. The customer or the user of the [RCTI-DY（Ⅱ）] should assure that it is used in such an environment Immunity Test IEC 60601...
  • Page 29 61000-4-11 for 5 cycle for 5 cycle mains interruptions, it is recommended the 70% U 70% U [RCTI-DY（Ⅱ）] be (30% dip in (30% dip in powered from an uninterruptible power for 25 cycle for 25 cycle supply or a battery.
  • Page 30 Table 3 Guidance and manufacturer’s declaration - electromagnetic emissions The [RCTI-DY （Ⅱ） ] is intended for use in the electromagnetic environment specified below. The customer or the user of the [RCTI-DY（Ⅱ）] should assure that it is used in such an environment...
  • Page 31 Rev. 02/01/18 VER SMS-GG02 20140828-EN d RF 150KH transmitter. Recommended separation 61000-4-6 80MHz 3 V/m distance 3 V/m Radiated 80MHz 2.5GHz 61000-4-3 where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m) Field strengths from fixed RF...
  • Page 32 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the [RCTI-DY （ Ⅱ ） ] is used exceeds the applicable RF compliance level above, the [RCTI-DY（Ⅱ）] should be observed to verify normal operation.
  • Page 33 Rev. 02/01/18 VER SMS-GG02 20140828-EN communications equipment (transmitters) and the [RCTI-DY （ Ⅱ ） ] as recommended below, according to the maximum output power of the communications equipment. Rated Separation distance according to frequency of maximum transmitter output power of transmitter...
  • Page 34 Rev. 02/01/18 VER SMS-GG02 20140828-EN WARRANTY REGISTRATION FORM Item Name: Model Name: Serial No.: Date of Purchase: Name: Address: Phone: Email: Name of Distributor: Authorized Distributors: Stamp and Signature...
