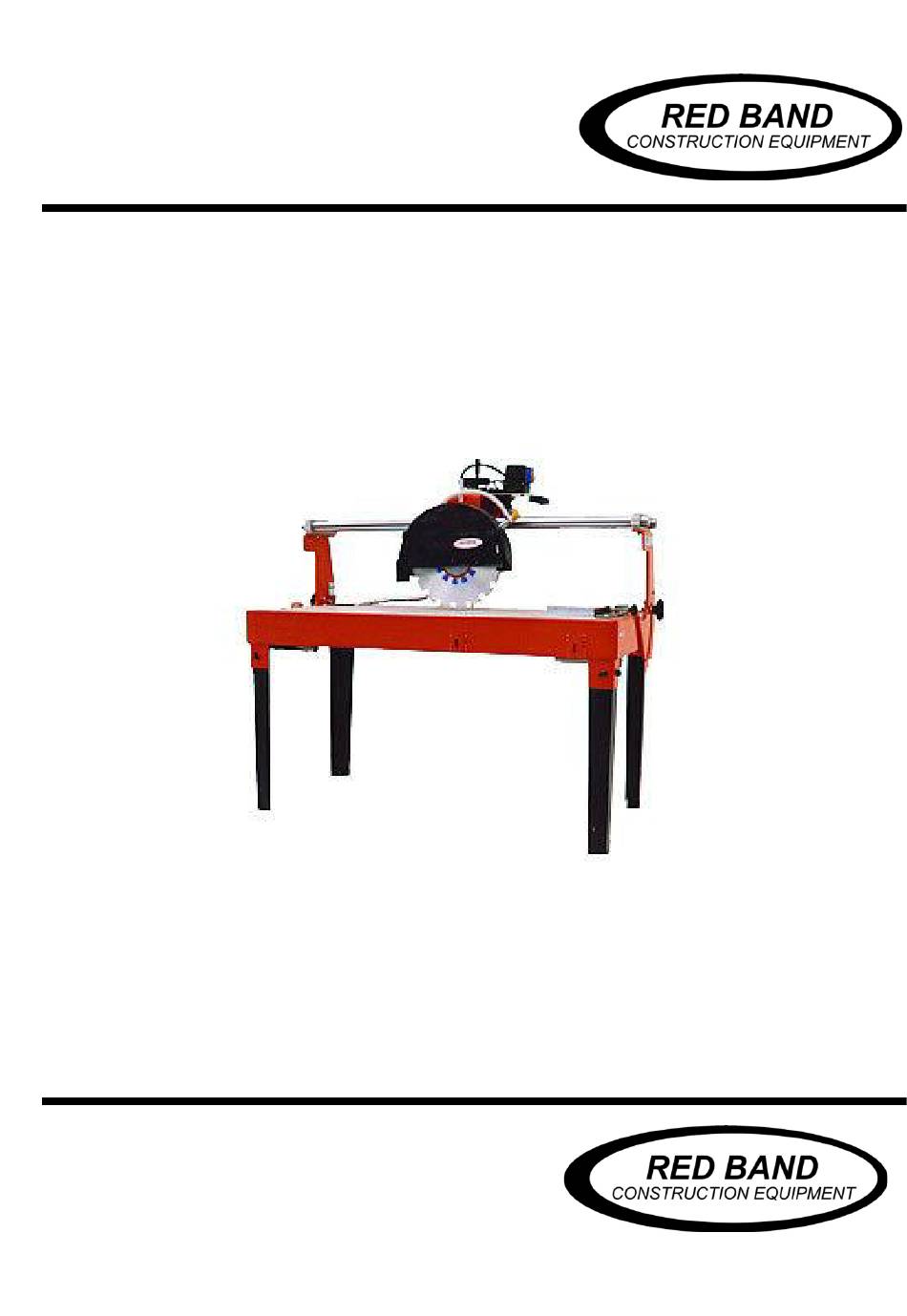

- Page 1 ’ PERATOR AFETY ERVICE ANUAL Red Band MB Masonry Bridge Saw RED BAND UK LTD Tel: 0116 260 2601 Unit 70 • The Warren Fax: 0116 260 2603 East Goscote Ind. Est. sales@redbanduk.co.uk East Goscote • Leicester www.redbanduk.co.uk LE7 3XA...
-
Page 3: Basic Safety Instructions
Basic Safety Instructions The Red Band MB range of Masonry Bridge Saws is exclusively designed for the cutting of construction products mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user. - Page 4 Before commencing work Before commencing work, make yourself familiar with the working environment at the place of use. The working environment includes: obstacles in the area of work and manoeuvre, the firmness of the floor, necessary protection at the site relating to public thoroughfares and the availability of help in the event of accidents.
-

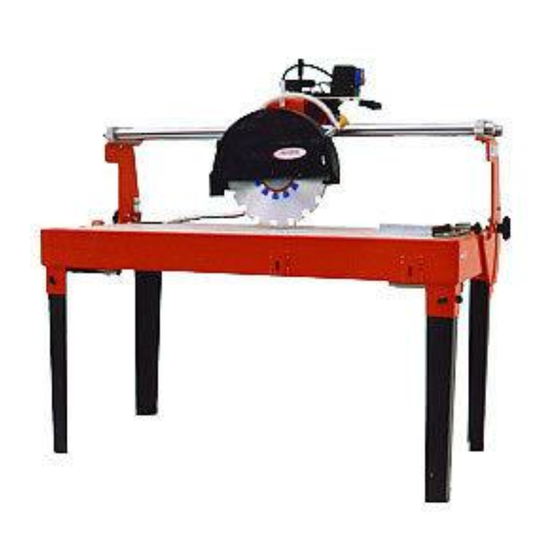

Page 5: Machine Description
Machine description Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Red Band UK Ltd who shall confirm that the machine is still in conformity with the safety regulations. -
Page 6: Technical Data
Technical Data MB65 MB100 MB120 MB150 350 mm 350 mm 350 mm 350 mm Blade Diameter 25.4mm / 1” 25.4mm / 1” 25.4mm / 1” 25.4mm / 1” Bore 110 mm 110 mm 110 mm 110 mm Max. Cutting Depth (90°) 45 mm 45 mm 45 mm... -
Page 7: Assembly And Commissioning
Assembly and Commissioning The machine is delivered fully equipped (although without diamond blade) and is ready for operation after assembly of the blade and the legs, to assemble the legs, they have to be placed at the four corners of the water tray in the brackets and fixed with two bolts and nuts each. Finally connect to the appropriate power supply. -
Page 8: Electrical Connections
Electrical Connections Check that, the voltage/phase supply corresponds to the information indicated on the motor plate. Available power supply must have ground connection in conformity with safety regulations. The connecting cables should have at least a 2.5mm -section per phase. -
Page 9: Transport And Storage
Transport & Storage Securing for transport Before transporting or lifting the machine, always remove the blade and empty the water pan. Also lock the cutting head on the axles. Long period of inactivity If the machine is not going to be used for a long period, please take the following measures: ... -
Page 10: Operating The Machine
Operating the Machine Site of work Siting the machine Remove from the site anything, which might hinder the working procedure! Make sure the site is sufficiently well lit! Observe manufacturer's conditions for connecting to power supplies! Place electric cables in such a way that damage by the device is excluded! ... - Page 11 General advice for the cutting Before commencing work make sure tools are firmly seated! Select the right tools as recommended by the manufacturer depending on the material to be worked, the working procedure (dry or wet cut) to be carried out and the required efficiency. ...
-
Page 12: Maintenance And Servicing
Maintenance and Servicing To ensure a long-term quality from the cutting with the MB, please follow the maintenance plan below: Whole machine Visual control (general aspect, watertightness) Clean Flange and blade fixing devices Clean Motor cooling fans Clean Water pump Clean Water pan Clean... -
Page 13: Faults: Causes And Cures
Faults: Causes and Cures Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician. -
Page 14: Spare Parts
Spare Parts When ordering spare parts, please mention: The code of the part. The exact denomination. The number of parts required. The delivery address. Clear instructions will avoid problems and faulty deliveries. If not sure, please send us the defective part. In the case of a warranty claim, the part must always be returned for evaluation. - Page 15 Code Description GM01 STARTER ASSY - 110V GM01A STARTER ASSY - 220V GM01B STARTER ASSY - 415V GM02 HANDLE GM03 STARTER PLATE GM04 HANDWHEEL GM05 BEARING GM06 FEED SCREW GM07 MOTOR CONSOLE GM08 MOTOR - 110V GM08A MOTOR - 220V GM08B MOTOR - 415V GM09...
- Page 16 GM19A BRACKET - R/H GM20 ANGLE ADJUSTER GM21 LOCKING HANDLE GM22 PIVOT AXLE GM23 WATER PUMP - 110 or 220V GM24 LOCKING SCREW GM25 GM26 HANDLE GM27 CAPACITOR - 110V GM28 TABLE TOP GM29 BACK GUIDE GM30 GUIDE A CUT GM31 LOCK SCREW GM32...
-
Page 18: Declaration Of Conformity
Conformity Notice RED BAND UK LTD DECLARATION OF CONFORMITY The Undersigned Manufacturer : Red Band UK Ltd Unit 70, The Warren East Goscote Industrial Estate East Goscote Leicester LE7 3XA Declare that the product : MB Masonry Bridge Saw Is in conformity with the European Machine Directive 98/37/EC And BS EN 12418 : 2000 …………………………….
