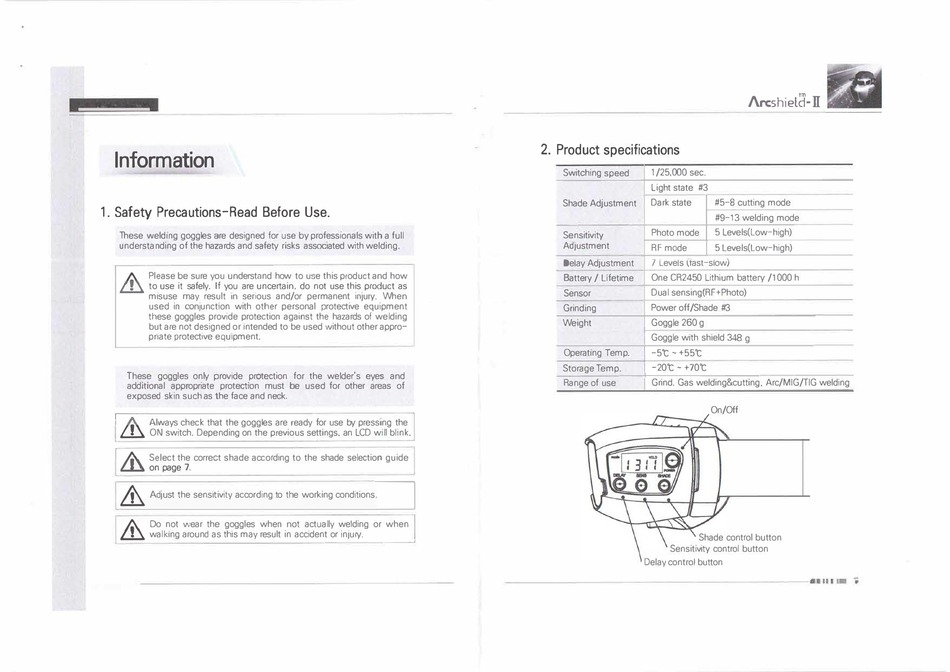

Product Specifications - Servore ArcShield-II User Manual

Information
1. Safety Precautions-Read Before Use.
These welding goggles are designed for use by professionals with a full
understanding of the hazards and safety risks associated with welding.
� Please be sure you understand how to use this product and how
L!..l
to use it safely. If you are uncertain. do not use this pr
misuse may result In serious and/or permanent mIury. When
used in conj u nction with other personal protective equipment
these goggles provide protection against the hazards of welding
but are not designed or intended to be used without other appro­
pnate protective equipment.
These goggles only provide protection for the welder's eyes and
additional appropriate protection must be used for other areas of
exposed skin such as the face and neck.
�lvvays check that the goggles are ready for use by pressing the
L.m
ON switch. Depending on the previous settings. an LCD will blink.
'r
I Select the correct shade according to the shade selection guide
� on page 7.
&
Adjust the sensitivity according to the working conditions .
� Do not wear the goggles when not actually welding or when
L!..l
walking around as this may result in accident or injury.
duct as
o
.=]
- - - - - ---'

2. Product specifications

1 /25.000 sec.
Switching speed
Light state #3
#5-8 cutting mode
Shade Adjustment Dark state
#9-13 welding mode
--
Photo mode 5 Levels(Low-high)
Sensitivity
AdIustment
RF mode 5 Levels(Low-high)
Delay AdIustment I Levels \tast-slow)
One CR2450 Lithium battery /1000 h
Battery/ Lifetime
Dual sensing(RF+Photo)
Sensor
Grinding - Power off /Shade #3
Goggle 260 g
Weight
Goggle with shield 348 g
Operating Temp. -5t - +55t
-20t - + 70t
Storage Temp.
--+----------
Grind. Gas welding&cutting. Arc/MIG/TIG welding
Range of use
On/Off
Shade control button
Sensitivity control button
Delay control button
J\rcshield· Il
