Summary of Contents for Dual WCP165GH

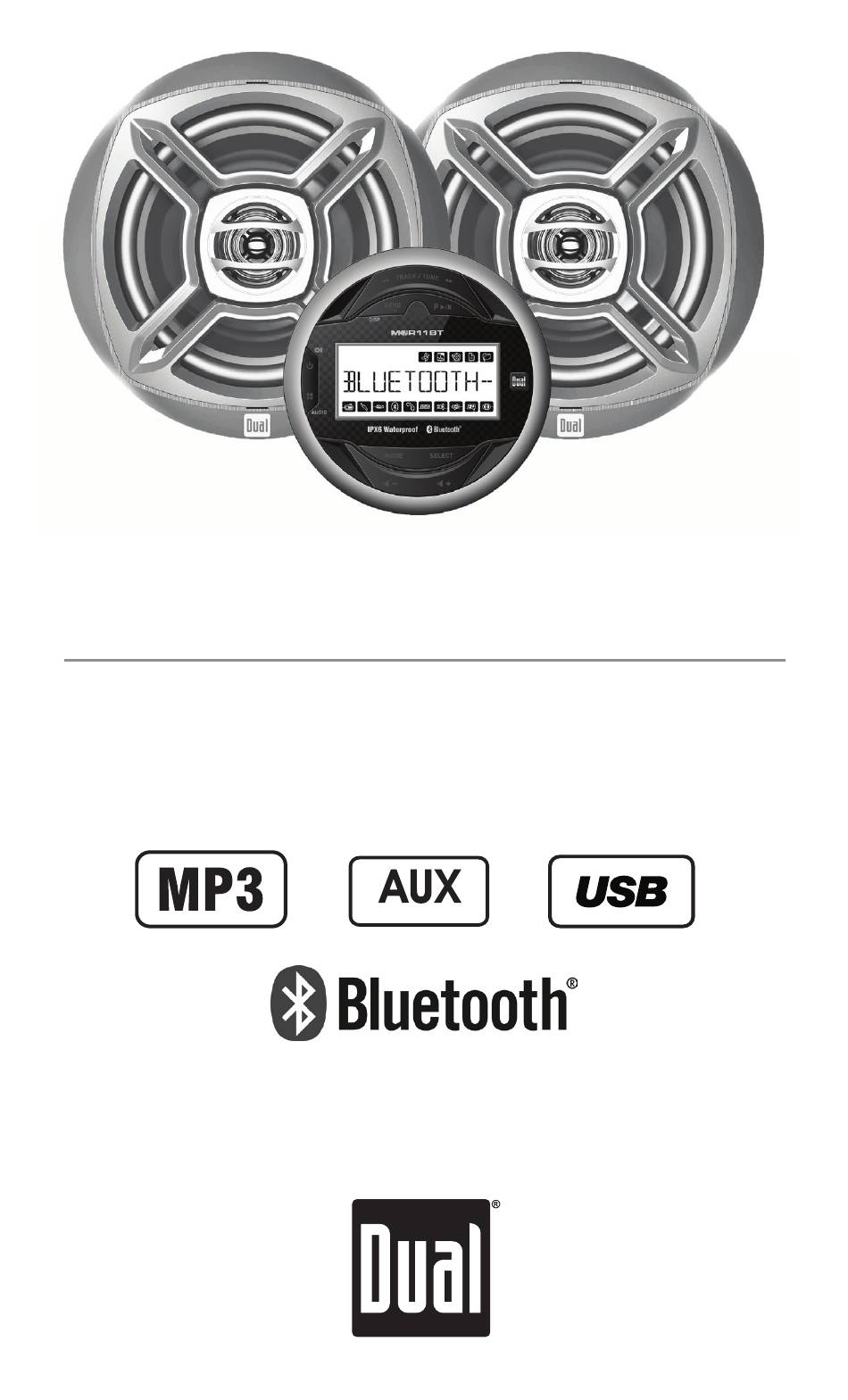

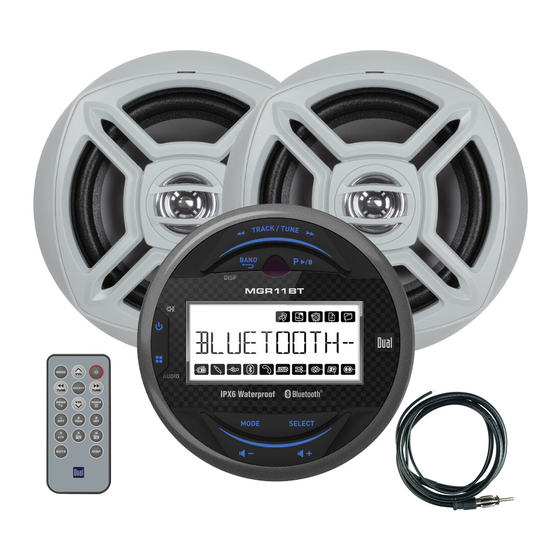

- Page 1 WCP165GH INSTALLATION/OWNER'S MANUAL MGR11BT AM/FM Gauge Hole Receiver and WSM651 6.5" Car Audio Speakers Rear Inputs...
- Page 2 WCP165GH INSTALLATION Mounting Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Installation
WCP165GH INSTALLATION Installation Installation 3 Inch Hole Mounting the Radio 1. Choose a mounting location on the dash board or instrument panel that will allow room behind to run radio cables to the power source. Consider how you will use the AUX IN, LINE OUT and USB connectors and route the appropriate extension cables to an accessible area. - Page 4 WCP165GH OPERATION Wiring USBØ5(BLACK) ANTØ3(BLACK) WHITE MOLDING 2P RCA CABLE(GRAY) REAR LINE OUT RED MOLDNNG WHITE MOLDING 2P RCA CABLE(YELLOW) RED MOLDNNG PHONE JACK(Ø3.5) STEERING WHEEL...
-
Page 5: Control Locations
WCP165GH OPERATION Control Locations Power / Mute Band / Go Back / Display Tune Down Tune Up Play / Pause / Presets Select Volume Up Volume Down Mode Audio / Menu Mode Preset 6 / Folder Up Volume Up Display... -
Page 6: General Operation
WCP165GH OPERATION General Operation Power On/Off Press to turn the unit on. Press and hold to turn the unit off. Press MODE to select between AM/FM, auxiliary, USB and Mode Bluetooth. Modes of operation are shown in the display. NOTE: USB mode will not appear unless a USB device is connected. - Page 7 WCP165GH OPERATION General Operation - Setup Menu Menu Function Options Action Auto Station Press SELECT to seek and save 6 strong stations in the AUTO STORE Store current band. (Tuner mode only) LOCAL OFF Activates distance tuning (Tuner mode only).
- Page 8 WCP165GH OPERATION General Operation Press AUDIO/MENU momentarily to select between Bass, Audio Middle, Treble, Balance, Fader, Loudness, EQ and Source Volume Level. BASS TREBLE BALANCE FADER LOUD STEREO Press AUDIO/MENU until BASS appears then press VOL+ or Bass VOL- to adjust ( -7 minimum / +7 maximum).
-
Page 9: Weather Band Operation
WCP165GH OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE for more than one second to seek to the next strong station. Manual Tuning Press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. Press and hold to advance quickly. -
Page 10: Usb Operation
WCP165GH OPERATION USB Operation Connecting a USB Device To play MP3 files from most USB mass storage devices, line (sold separately) up the USB connector and insert the USB device into the MGR11BT's USB port. Playing Music When a USB device is first connected, “USB READ” will appear in the display and playback will begin momentarily. - Page 11 WCP165GH OPERATION USB Operation Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select beween song title, artist, file name, folder name, track number and clock/ elapsed time. "NO TITLE" will be displayed if no song title information is available.
- Page 12 WCP165GH OPERATION USB Operation Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 32 character maximum • *Artist name – 32 character maximum *Song title and artist ne will only be displayed if included with the MP3 file.
- Page 13 WCP165GH OPERATION USB Operation Additional MP3Information Only MP3 files with filename extension (.mp3) can be played. Do not attempt to play non-MP3 files with the MP3 extension. Sampling Frequency Rates 8kHz ~ 48kHz Transfer Bit rates 32kbps ~ 320kbps constant...
-
Page 14: Bluetooth Operation
WCP165GH OPERATION Bluetooth Operation Pairing a Device Preparation Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. Pairing a New Device The MGR11BT broadcasts the pairing signal constantly when no devices are currently connected. -
Page 15: Troubleshooting
WCP165GH OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground... - Page 16 WCP165GH OPERATION Speaker Preparation & Installation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Use extreme caution when drilling holes to avoid damaging fuel lines, hydraulic lines or existing wiring.
-
Page 17: Radio Specifications
WCP165GH OPERATION Radio Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4~8 ohms... -
Page 18: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2. -
Page 19: Fcc Compliance
WCP165GH OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 20 Dual Electronics Corp. Toll Free: 1-866-382-5476 9AM-5PM EST, Monday-Friday Trademarks and trade names are those of their respective owners. www.dualav.com ©2018 Dual Electronics Corp. All rights reserved. NSA0518-V01...
