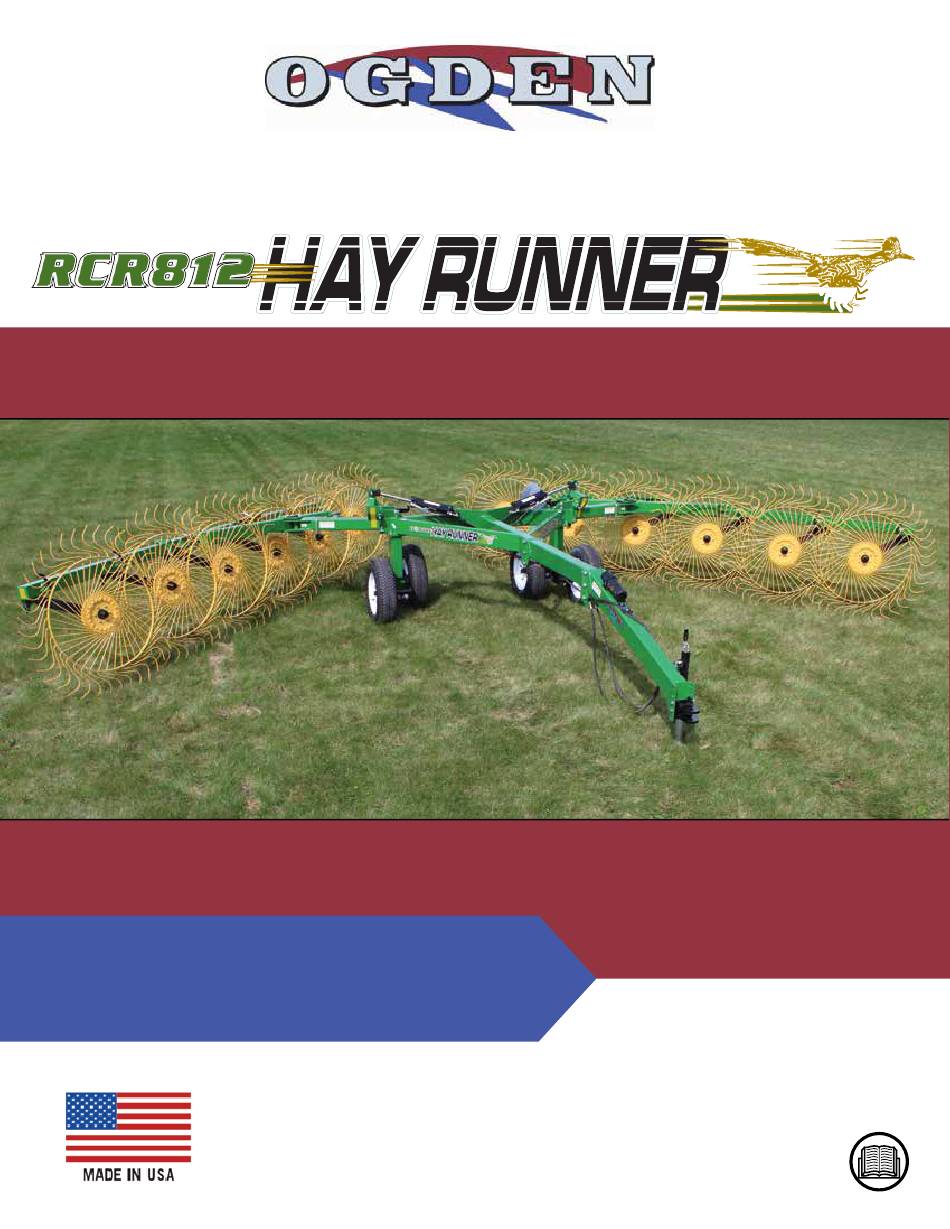

- Page 1 Owner’s Manual For Hay Rakes after serial #01425 Read, Understand, and Follow the information and procedures in this manual to safely operate and maintain the Hay Runner wheel rake.
-
Page 3: Table Of Contents
7. TRANSPORTING ......28 Transporting Safety (Road) ..28 Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... -
Page 4: Introduction
1. Introduction 1.1 Welcome RCR812 Hay Runner™ Family of Wheel Rakes Congratulations on your choice of an Ogden Metalworks, Inc. RCR812 family of wheel rakes. The Hay Runner wheel rake has been engineered and built for ease of operation and long service life. -
Page 5: Intended Usage
1.8 Disposal of Equipment at End of Useful Life 1.6 Operator Orientation The Ogden Metalworks family of wheel rakes have The directions left, right, front, and rear, as been designed for the specific purpose of raking hay mentioned throughout this manual, are as seen from and other forage crops. -
Page 6: Serial Number Location
Please use this number when requesting the tongue. service, seeking information, or ordering parts. Record the serial number in the space provided for easy reference when contacting Ogden Metalworks with questions. 1.11 Unanswered Questions If you have any questions not answered in this... -
Page 7: Safety
WARNING could occur to you or other persons. Indicates a potentially hazardous situation Ogden Metalworks cannot anticipate every which, if not avoided, could result in death or possible circumstance that might involve serious injury. -
Page 8: Safety Icons Nomenclature
Pinch point hazard Place in neutral Pinch point hazard Remove key Pinch point hazard Stop engine STOP Electrocution hazard Set parking brake Tip over hazard 2.3.2 Prohibited Actions No riders No children Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 9: General Safety Instruction
• Hearing protection Crush Hazard Hydraulic or mechanical failure can allow a wing to drop suddenly without warning. Do not allow anyone to walk under or stand near a raised rake arm. Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... -
Page 10: Operation Safety
Safety Signs If you do not understand any information in Replace any missing or hard‑to‑read safety this manual, see your dealer or contact Ogden signs or instructional labels. Use care Metalworks before proceeding. when washing or cleaning the wheel rake. - Page 11 Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102). Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552...
-
Page 12: Safety Signs And Labels
5. Replacement parts must have replacement labels attached during installation and/or before the wheel rake is used. 6. Labels are available from your authorized dealer or from Ogden Metalworks at no charge. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 13: Safety Sign Locations
Number HR169 Decal, Warning Operating HR170 Decal, Overhead Hazard 0-70 Decal, Caution Stay Clear HR171 Decal, Warning Pinch Point 0-82 Decal, Hydraulic Caution 0-71 Decal, Red Reflector B489A Decal, Yellow Reflector Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... - Page 14 3.4.1 Wheel Rake Safety Signs Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake...
- Page 15 Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552...
-
Page 16: Assembly
Assembly” on page 15. 5. Connect hydraulic supply and return hoses. 6. Release the transport lock on both rake arms. For detailed information refer to “4.5 Rake Arm Transport Locks” on page 16. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 17: Attach The Tongue Assembly
Position the strap to balance the weight of the tongue as it is removed. Remove the six 5/8” bolts, lock washers, and nuts connecting the tongue to the main frame. Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... -
Page 18: Rake Arm Transport Locks
Tighten the nuts to the standard torque. 4.5 Rake Arm Transport Locks The wheel rake is shipped with the transport locks in the locked position to prevent the wings from lowering unexpectedly. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 19: Hay Rake Wheels
Use of a lesser grade bolt could result in failure of the hitch causing property damage or personal injury. The zerks for the rake arms are on the bottom side of the tube. Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... -
Page 20: Optional Center Wheel Kit
U-bolts (5), four lock washers (6), and four hex in the system’s supply hose. nuts (7). 6. Position the back of the cylinder mount plate 42-1/4” from the front of the pivot mount plate. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... - Page 21 Note: Install the rake wheel labeled LH (left-hand) on the right side, and the rake wheel labeled RH (right-hand) on the left side. This orientation is opposite from the main rake wheels. Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552...
-
Page 22: Initial Set Up
3. Turn off the tractor engine, set the parking brake, and dismount. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 23: Level The Rake
2. Position the back of the tractor near the hitch. 3. Remove the two retaining bolts and adjust the hitch to the required height. Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... -
Page 24: Rake Angle Adjustment (Rear Center Rake Wheels)
4. Retighten the threaded lock tab. 5. Repeat the process for the other wing. 2. Reinsert the lock pin. Install the flat washer and nut and securely tighten the nut. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 25: Adjust Rake Wheel Ground Pressure
2. Tightening the eyebolt decreases the ground pressure. This work well with lighter hay. Minimum Ground Pressure 3. Loosening the eyebolt increases the ground pressure. This work well with heavier hay. Maximum Ground Pressure Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... -
Page 26: Wheel Rake Operation
3000 psi. rush Hazard The weight of the tractor, plus the wheel rake, if it rolls onto a person, could cause serious crushing injury or death. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 27: Using The Wheel Rake
6.3.1 Raising Front Wheel Rakes The front one (10 wheel model) or two (12 wheel model) rake wheels can be raised off the ground. 1. Remove the wire lock pin from the front wheel clip. Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... - Page 28 4. Open (handle in line with valve) the center bypass valve. 5. Be sure to close this bypass valve (handle perpendicular) when using both rakes. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake...
-
Page 29: Detaching From Tractor
4. Disconnect the hydraulic hoses from the tractor. Secure the hoses up off the ground. Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... -
Page 30: Transporting
Apply brakes early. Extra distance is required to stop the tractor and wheel rake. Use care around unmovable objects that prevent clear vision of the complete work area. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 31: Storage
6. If the unit is stored outdoors, cover the exposed cylinder rods with grease. 7. Touch up all paint nicks and scratches to prevent rusting. Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... -
Page 32: Maintenance
Be sure electrical outlets and tools are properly grounded. Use adequate light. Keep all parts in good condition and properly installed. Fix damage immediately. Replace worn or broken parts. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 33: Hydraulic System Safety
Before performing any type of welding repair instructions could result in serious injury and to the wheel rake, contact Ogden possibly even death. Metalworks for approval. Repair welding must be done with care and with procedures that 9.4 Hydraulic System Safety... -
Page 34: Replacing Tines
2. Remove the retaining bolts and the tine clamps. 2. Lubricate the dual spindle axle seasonally. 3. Reinstall the tines, as shown. The tine clamp is shown removed for clarity of the assembled tines around the retaining bolt. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 35: Inspection
Replace defective hoses immediately with factory replacement parts only. 3. Check tightness of lug bolts after one hour of operation and every six months thereafter. Check tire pressure whenever maintenance is performed. Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552... -
Page 36: Replacing Rake Wheel Tension Spring
CAUTION away from the spring. 7. Remove the clamp and lower the rake wheel to the ground. Retention the eye bolt to obtain the desired ground pressure on the rake wheel. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... - Page 37 3 Radial Lines 6 Radial Lines No Marking Grade 5 Grade 2 Grade 8 N·m ft.lbs. N·m ft.lbs. N·m ft.lbs. 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1320 Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552...
-
Page 38: Troubleshooting
Narrow or deep ditches or furrows, Avoid or cross at a slow speed. rocky ground. Too much ground pressure. Decrease the ground pressure. Refer to “5.8 Adjust Rake Wheel Ground Pressure” on page 23. Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake... -
Page 39: Replacement Parts
Contact Information For replacement decals, questions, or to order parts, contact your local dealer / distributor. If a local dealer cannot be found, contract Ogden Metalworks. Ogden Metalworks Inc. PO Box 128 301 N. Marilyn Avenue Ogden, IL 61859 PH: 217‑582‑2552... - Page 40 11.2 Wheel Rake Frame Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake...
- Page 41 U Bolt Spacer CRS16GA Shim Plate CR22 Slide Plate CRBP14 Bumper Plate H12-1 Hex Capscrew, 1/2" x 1” RCR20R Wing Weldment (Right) Heavy Nut Wrench H34-4-534UB U Bolt, 3/4" x 4" x 5-3/4" Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552...
- Page 42 Heavy Duty Nut, 5/8” HR222 2 Wh Rake Arm Extension, LH CR26 Adjustment Pin I-series RCR HRB125 Bushing HRH580 Nylock Nut, 5/8" VM-605 Grease Zerk, 1/4" OE-154 Hex Nut, 5/8" * As Required Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake...
- Page 43 Grease Zerk, M6 953005 Hex Castle Nut, 1" -14 913576 Washer 909454 Cotter Pin, .15" x 1.5" N807-P Seal Protector 910253 Bearing Cone, L44649 910250 Bearing Cup, L44610 3819 Stud 3/8" Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552...
- Page 44 11.5 Single and Tandem Axles Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake...
- Page 45 Qty. OE-155 Lockwasher, 5/8" HR117 Tire HRH58175-8 Hex Capscrew, 5/8" x 1-3/4" GR8 HR133 Wheel HRH34125 Hex Capscrew, 3/4" x 1-1/4" 909900 Dust Cap OE-154 Hex Nut, 5/8" 905936 Cotter Pin Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552...
- Page 46 Cotter Pin, 3/16" x 2 ¼” 8FJ-CAP 8MJ-TEE HC-V-CB20 Flow Divider FW14 Flatwasher, 1/4" HRH140 Nylock Hex Nut, 1/4" HRH143 Hex Capscrew, 1/4" x 3” CR205 Hose, 3/8” x 20” 8MJX-8MB Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake...
- Page 47 Cylinder Mount Weldment HR124 Flange VM-605 Grease Zerk, 1/4" 912576 Washer 16TB16 Bushing, 1" x 1" 953005 Hex Castle Nut, 1" 10200 Linkage Pin 909454 Cotter Pin, .15" x 1.5" 909176 Hub Ca Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552...
-
Page 48: Warranty
Ogden Metalworks, Incorporated’s obligation under this warranty is limited to the replacement of any part or parts which are determined defective by Ogden Metalworks, Inc. due to factory workmanship and/or material. Parts or components, if requested by Ogden Metalworks, Inc., must be returned through the selling dealer or distributor directly to Ogden Metalworks, Inc. - Page 49 NOTES Hay Runner™ Hay Rake Ogden Metalworks, Inc. — 217-582-2552...
- Page 50 NOTES Ogden Metalworks, Inc. — 217-582-2552 Hay Runner™ Hay Rake...
- Page 52 Manufactured by: Ogden Metalworks Inc. PO Box 128 <> 301 N. Marilyn Avenue Ogden, IL 61859 PH: 217-582-2552 <> Fax 217-582-2746 www.ogdenmetalworks.com...
