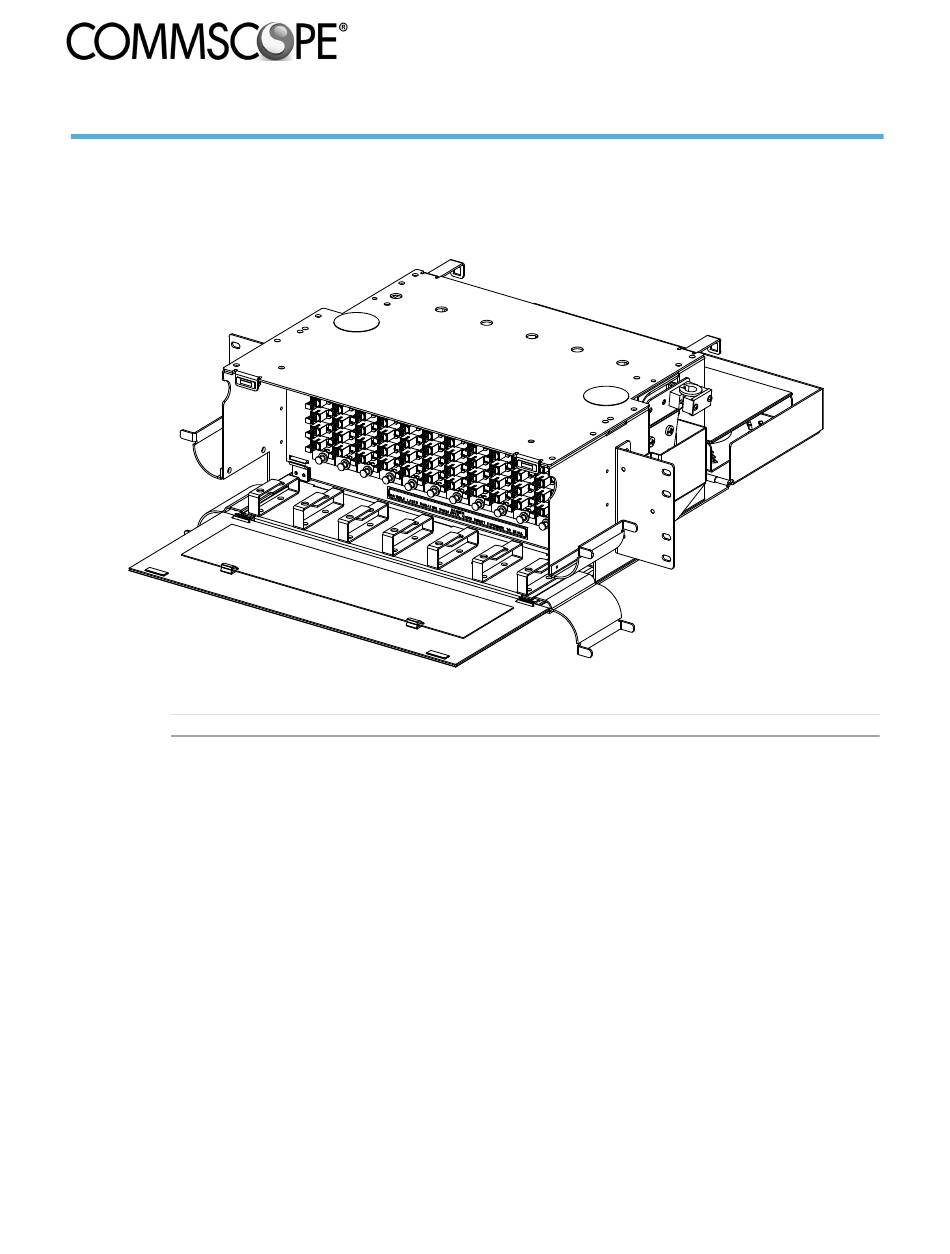

ADCP-93-095  Rev B  April 2018
LGX
Termination/Splice Panel With Pigtails
Content
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1
DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4
UNPACKING THE PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.1
5.2
5.3
5.4
5.5
6
PATCH CORD ROUTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.1
6.2
ADCP-93-095 Rev B
®
-Compatible (LSX) Preterminated
Installing the Combination Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grounding an Armored Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Breaking Out a Cable for Splicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing a Cable Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Feeder Cable Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.5.1
Cable Routing for 7-Inch and 9-Inch High Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.5.2
Cable Routing for 1.75 Inch High Panels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.5.3
Cable Routing for 3.5 Inch High Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Patch Cord Routing Within the LSX Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Routing Patch Cords on the LGX Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
User
Manual
17521-A
Page
(Continued)
Page 1
© 2018, CommScope, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSX and is the answer not in the manual?

Questions and answers

Related Manuals for CommScope LSX

Summary of Contents for CommScope LSX

  • Page 1: Table Of Contents

    Patch Cord Routing Within the LSX Module ........

  • Page 2: Introduction

    (GND-STPKIT) Installation Instructions 90-382 1 DESCRIPTION The LSX Preterminated Termination/Splice Panel With Pigtails is an LGX style, rack-mounted panel that provides a splicing transition between one or more fiber optic cables and a termination bulkhead for fiber optic patch cords.
  • Page 3 ADCP-93-095 • Rev B • April 2018 In a typical application, the LSX panel serves as a splicing and distribution point to transition from Outside Plant (OSP) or Intra Facility Cable (IFC) to inbuilding circuits connected to with patch cords. The panel may be used in either an interconnect or cross-connect configuration, and in either singlemode or multimode applications.
  • Page 4 ADCP-93-095 • Rev B • April 2018 The LSX panel is shipped with pre-terminated, factory-installed ribbon or stranded pigtails. The panel is available in five chassis heights with different numbers of termination positions, as follows: 1.75-inch high with 12 or 24 termination positions; 3.5-inch high with 48 termination positions;...
  • Page 5 ADCP-93-095 • Rev B • April 2018 • Mounting Brackets—may be oriented for either 19-inch or 23-inch rack mount. Every LSX Termination/Splice Panel has a rear splice area such as shown in Figure 3 for the 7- inch panel. The other height panels have analogous features.

  • Page 6: Dimensions

    (2.5 CM) FRONT VIEW 17524-A 7.0 IN. (17.8 CM) HEIGHT ON 72 OR 96 POSITION MODULES OR 9.0 (22.9 CM) HEIGHT ON 144 POSITION MODULES. Figure 4. Dimensions for 7-Inch and 9-Inch High Panel Page 6 © 2018, CommScope, Inc.
  • Page 7 12.0 IN. (30.5 CM) 5.0 IN. (12.7 CM) 16.84 IN. (42.8 CM) 19.33 (49.1 CM) 19-IN. RACK MOUNT (48.26 CM) FRONT VIEW 23500-A 5.23 IN. (13.3 CM) Figure 6. Dimensions for 3.50-inch High Panel Page 7 © 2018, CommScope, Inc.

  • Page 8: Specifications

    ADCP-93-095 • Rev B • April 2018 3 SPECIFICATIONS Table 1 lists specifications for the LSX panel. Table 1. LSX Combination Module Specifications PARAMETER SPECIFICATION REMARKS General Color Putty white Rack mounting 19- or 23-inch EIA or WECO hole spacing Connector Types Singlemode ASC, USC, UFC...

  • Page 9: Unpacking The Product

    For instructions, refer to the following subsections. Installing the Combination Module Note: Because of its extra depth due to its rear splice area, the LSX panel should be installed on an LGX fiber distribution frame with a depth of at least 15 inches (38.1 cm).

  • Page 10: Grounding An Armored Cable

    When installing an armored cable, a procedure is required, before breaking out the cable, to sever and ground the armor. A CommScope kit is available for grounding the armor (catalog # GND-STPKIT). For details, refer to the instructions shipped with the kit (ADCP-90-382).

  • Page 11: Breaking Out A Cable For Splicing

    CommScope. For information on installing blocking and grounding kits, if required, refer to the instructions contained in the kits. Note: Kits for stranded cable breakouts are available from CommScope. Refer to catalog # 804, or contact CommScope Customer Assistance. For contact information, see...

  • Page 12: Installing A Cable Clamp

    Figure 9. Recommended Breakout Dimensions for Stranded Cable Installing a Cable Clamp Every LSX panel is shipped with a cable clamp that can be used to secure a cable to the chassis. This section contains instructions for the 7-inch and 9-inch high panels. For other panel heights, refer to the instructions provided in the cable clamp kit.
  • Page 13 7. If desired, install a cable shield using any of the three shields shipped with the panel. The purpose of the shield is to protect the cable where it enters the panel. Figure 13 shows the Page 13 © 2018, CommScope, Inc.
  • Page 14 SCREW (2) CABLE ENTRY HOLE CABLE CLAMP BRACKET 17534-A (OVERHEAD CABLE POSITION) Figure 11. Installing a Cable Clamp (9-Inch Module) GROMMET CABLE 0 - 0.30 IN. (0 - 8 MM) 1440-A Figure 12. Grommet Selection Page 14 © 2018, CommScope, Inc.

  • Page 15: Feeder Cable Routing

    Separate procedures are provided in this section for different panel heights. For 7-inch and 9- inch high panels, refer to Section 5.5.1 on Page 16. For 1.75-inch and 3.5-inch high panels, refer Section 5.5.2 on Page Page 15 © 2018, CommScope, Inc.

  • Page 16: Cable Routing For 7-Inch And 9-Inch High Panels

    CLAMP LOOP TWICE THROUGH ENTRY CURLEYLOKS HOLE IN SAME LOOP AS PIGTAILS SPLICE AREA MASS FUSION ACCESS DOOR SPLICE CHIP REAR VIEW 17602-A BREAKOUT POINT Figure 14. Cable Routing (7- and 9-Inch High Panel) Page 16 © 2018, CommScope, Inc.

  • Page 17: Cable Routing For 1.75 Inch High Panels

    4. Tie down the cable at the point where the exposed fibers emerge from the breakout per the breakout dimensions provided insubsection 5.3. TIE POINTS (SIX PLACES) 23604-A Figure 15. Cable Routing (1.75 Inch High Panel) Page 17 © 2018, CommScope, Inc.

  • Page 18: Cable Routing For 3.5 Inch High Panels

    4. Tie down the cable at the point where the exposed fibers emerge from the breakout per the breakout dimensions provided insubsection 5.3. TIE POINTS 23605-A (TEN PLACES) Figure 16. Cable Routing (3.5 Inch High Panel) Page 18 © 2018, CommScope, Inc.

  • Page 19: Patch Cord Routing

    ADCP-93-095 • Rev B • April 2018 6 PATCH CORD ROUTING Cross-connect patch cords on the LSX panels and LGX frame must be carefully routed to ensure they are properly protected. For details, refer to the following subsections. Danger: Infrared radiation is invisible and can seriously damage the retina of the eye. Do not look into the ends of any optical fiber.

  • Page 20: Routing Patch Cords On The Lgx Bay

    3. Route the left side of the patch cord down through the left vertical trough to the LSX panel where the left side of the patch cord will be terminated.
  • Page 21 ADCP-93-095 • Rev B • April 2018 VERTICAL UPPER VERTICAL VERTICAL UPPER VERTICAL TROUGH RACEWAY TROUGH TROUGH RACEWAY TROUGH JUMPER RETAINERS 17536-A OPPOSITE SIDE SAME SIDE TERMINATIONS TERMINATIONS Figure 18. Routing Patch Cords on a Stand-Alone Bay Page 21 © 2018, CommScope, Inc.

  • Page 22: Cross-Connecting Between Adjacent Bays

    RETAINERS 17537-A Figure 19. Routing Patch Cords Between Adjacent Bays 1. Terminate one end of the patch cord on the originating LSX panel and bay, then route the patch cord left or right to the nearest vertical trough. Page 22...

  • Page 23: Cross-Connecting To Non-Adjacent Bays

    Patch cords may be routed through upper or lower raceways to non-adjacent bays in an LGX or LSX lineup. As a general rule, patch cords originating in LSX panels located in the upper half of an originating bay are routed to the upper raceway. Conversely, patch cords originating in panels located in the lower half of an originating bay are routed to the lower raceway.

  • Page 24: Routing Patch Cords Starting In The Lower Raceway

    RACEWAYS TROUGH RETAINERS TROUGHS TROUGHS TROUGHS TROUGH BRACKET ORIGINATING TERMINATION DESTINATION LOCATIONS TERMINATION LOCATIONS 17538-A LOWER LOWER LOWER RACEWAY RACEWAY RACEWAY Figure 20. Routing Patch Cords Starting in the Lower Raceway (Bottom to Bottom) Page 24 © 2018, CommScope, Inc.
  • Page 25 VERTICAL VERTICAL VERTICAL VERTICAL VERTICAL SUPPORT RACEWAYS TROUGH RETAINERS TROUGHS TROUGHS TROUGHS TROUGH BRACKETS DESTINATION ORIGINATING TERMINATION TERMINATION LOCATIONS LOCATIONS 17540-A Figure 21. Routing Patch Cords Starting in the Lower Raceway (Bottom to Top) Page 25 © 2018, CommScope, Inc.

  • Page 26: Routing Patch Cords Starting In The Upper Raceway

    UPPER VERTICAL VERTICAL VERTICAL VERTICAL VERTICAL SUPPORT RACEWAYS TROUGH RETAINERS TROUGHS TROUGHS TROUGHS TROUGH BRACKETS DESTINATION ORIGINATING TERMINATION TERMINATION LOCATIONS LOCATIONS 17540-A Figure 22. Routing Patch Cords in the Upper Raceway (Top to Top) Page 26 © 2018, CommScope, Inc.
  • Page 27 UPPER VERTICAL VERTICAL VERTICAL VERTICAL VERTICAL SUPPORT RETAINERS RACEWAYS TROUGH TROUGHS TROUGHS TROUGHS TROUGH BRACKETS ORIGINATING TERMINATION LOCATIONS DESTINATION TERMINATION LOCATIONS 17541-A Figure 23. Routing Patch Cords in the Upper Raceway (Top to Bottom) Page 27 © 2018, CommScope, Inc.

  • Page 28: Mounting 144-Position Modules Adjacent To 72 Or 96 Position Modules

    Frames with a depth of 15 inches (38.1 cm) are recommended to accommodate the 15 inch depth of the LSX termination/splice panel. The additional depth of the termination/splice panel is due to the due to the additional room required for the splice deck on the rear of the panel.
  • Page 29 ADCP-93-095 • Rev B • April 2018 Testing and patching of optical circuits are done on the front of the LSX panel using patch cords. Whenever patch cords are installed, route them down and to the side, as with cross- connect patch cords.

  • Page 30: Customer Information And Assistance

    ADCP-93-095 • Rev B • April 2018 8 CUSTOMER INFORMATION AND ASSISTANCE To find out more about CommScope® products, visit us on the web at www.commscope.com For technical assistance, customer service, or to report any missing/damaged parts, visit us at http://www.commscope.com/SupportCenter...
