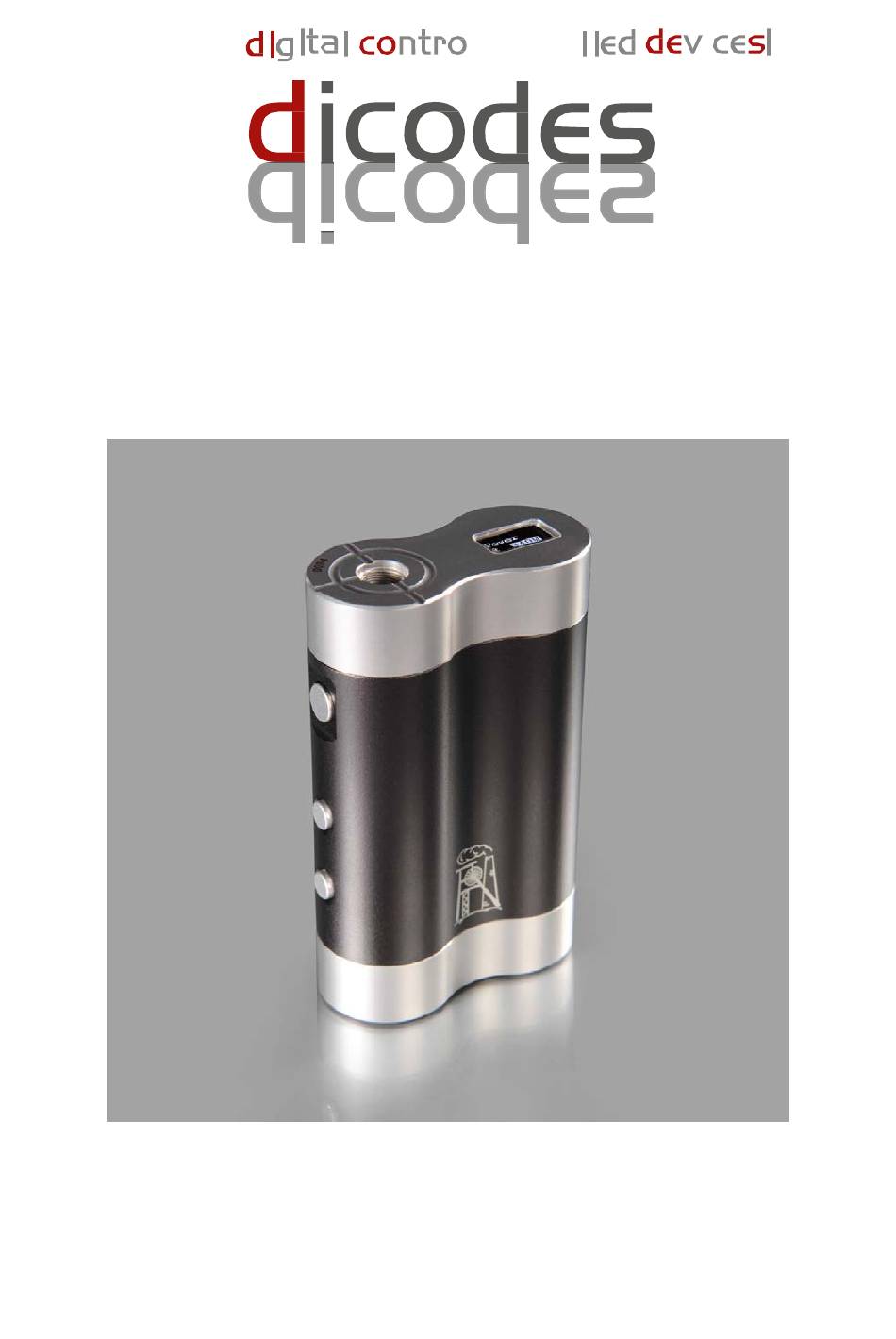

- Page 1 Dani Box manual...

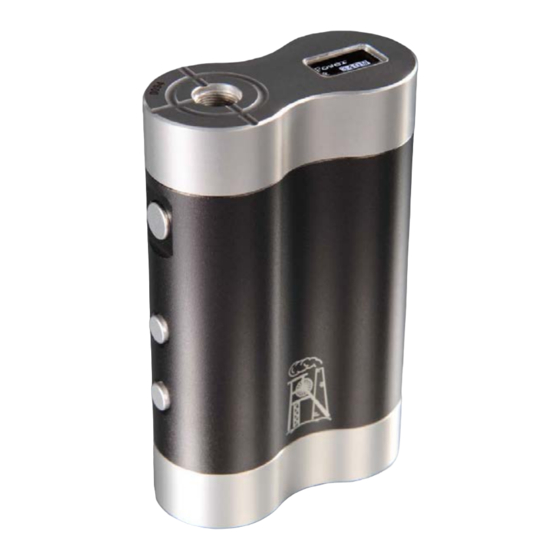

- Page 2 01 Dani Box The dicodes Dani Box is an electronically controlled MOD that can be used with various atomizers of different sizes and diameters. It’s engineered to use one 18650 battery. The mod has a very ergonomic soft touch design and is equipped with three buttons on the long side for stepping through the menu and for firing.
-
Page 3: Display Operation
03 Display Operation The MOD is equipped with an OLED display which provides status information during—and for 4 seconds—after each vape. Temperature controlled mode: Battery-voltage during Temperature during vape the vape, including voltage Other modes: battery symbol drop. Wattage setting Coil-Resistance during vape, In Direct-Mode (Bypass) including temperature dependent... - Page 4 (*1) not displayed Power (*1) Value Menu in Bypass-Mode Mod-Menu Heater Menu Adjustment Temp.-coefficient Temperature Level Puffs “Other” Only Adjustment Display Vaping displayed in Power Luminosity Time Temperature temp.-contr. Limit Calibration Operation Switch Off Energy Time (Joule=Ws) mode Heater Protection Coil Resistance Setting (*2) Menu On...
- Page 5 05 Main Menu (Page 1) Switching On/Off, Key Locking and Menu-Operation The dicodes Dani Box has three buttons—the big vape/fire button and two smaller plus and minus buttons. The mod can be turned on by clicking any button 5 times.
- Page 6 Always perform a calibration when a new atomizer is attached, even if the coil is made from the same material as the previous one. For further information about this topic, please read the “Application Note for Temperature Controlled Vaping”, on the dicodes-mods website. Coil Resistance and Coil Temperature The coil resistance is displayed in a range from 0.00 to 9.90 Ohms.
- Page 7 “TempCof”. The range for the coefficient is 050 to 650. If you use the dicodes wire (RESISTHERM) it’s guaranteed the wire will always have the same coefficient, because the wire was especially engineered for temperature regulation. Regulation accuracy is optimized...
- Page 8 05 Main Menu (Page 4) 2. Heater Protection Mode (only when Expert Mode=1) Main Menu The heater protection mode is a periodic interruption of the power applied to the coil. The duration and the frequency of the interrupts can be selected under “Heater Prot” in the Extended Functions Menu.
- Page 9 0 OvrVolt: The input voltage is too high. The is prepared for the use of one battery. dicodes Dani Box If the input voltage exceeds 4.5V this error message is displayed. Reduce the input voltage to the specified range. 1 ChkAtom: No atomizer detected or open coil.
- Page 10 (*1 ) The temperature coefficient selects the type of wire material, range 050 to 650: When TC-mode is selected (Main menu HCtrl=1), the user must select the wire type to be NiFe30 (dicodes wire), Ni200, Titanium, Tungsten (Wolfram), Stainless Steel (Inox) or “Other”. The value for “Other” is adjusted here. The values of the predefined wire-types are 320=dicodes-wire, 620=Nickel, about 105=Stainless Steel, 350=Titanium (varying literature values, danger: fire hazard), 440=Tungsten (Wolfram).
- Page 11 Power Limit sets the power during the boost-phase in the Power Boost Mode. All dicodes devices allow the user to set the minimum discharge level of the battery between 2.5V and 3.0V (older models 3.5V). Almost all batteries specify a minimum discharge level of 2.5V to 2.7V.
- Page 12 Additional explanation to several menu items, page 2 can be used in 5 different modes. 3 of the modes are only dicodes Dani Box available if the Expert-Mode is set to 1. The additional modes available with Expert Mode set to 1 are “Power Boost”, “Heater Protection” and “Bypass”.
- Page 13 06 Extended Functions Menu Additional explanations to several menu items, page 3 The Extended Functions Menu has another sub-menu showing several statistical values. There are two types of value-counters, either re-settable to zero or not. The statistic counters are saved whenever the mod is automatically or manually switched off.
- Page 14 Friedrich der Große 70 D-44628 Herne Germany Phone: +49 2323 1463635 Email: info@dicodes-mods.de Web: www.dicodes-mods.de Errors excepted. Subject to technical or other changes without prior notice. c copyrights dicodes GmbH, Germany, no unauthorized reprint. 10.12.2015 dicodes Dani Box manual, ENG, revision 1...
