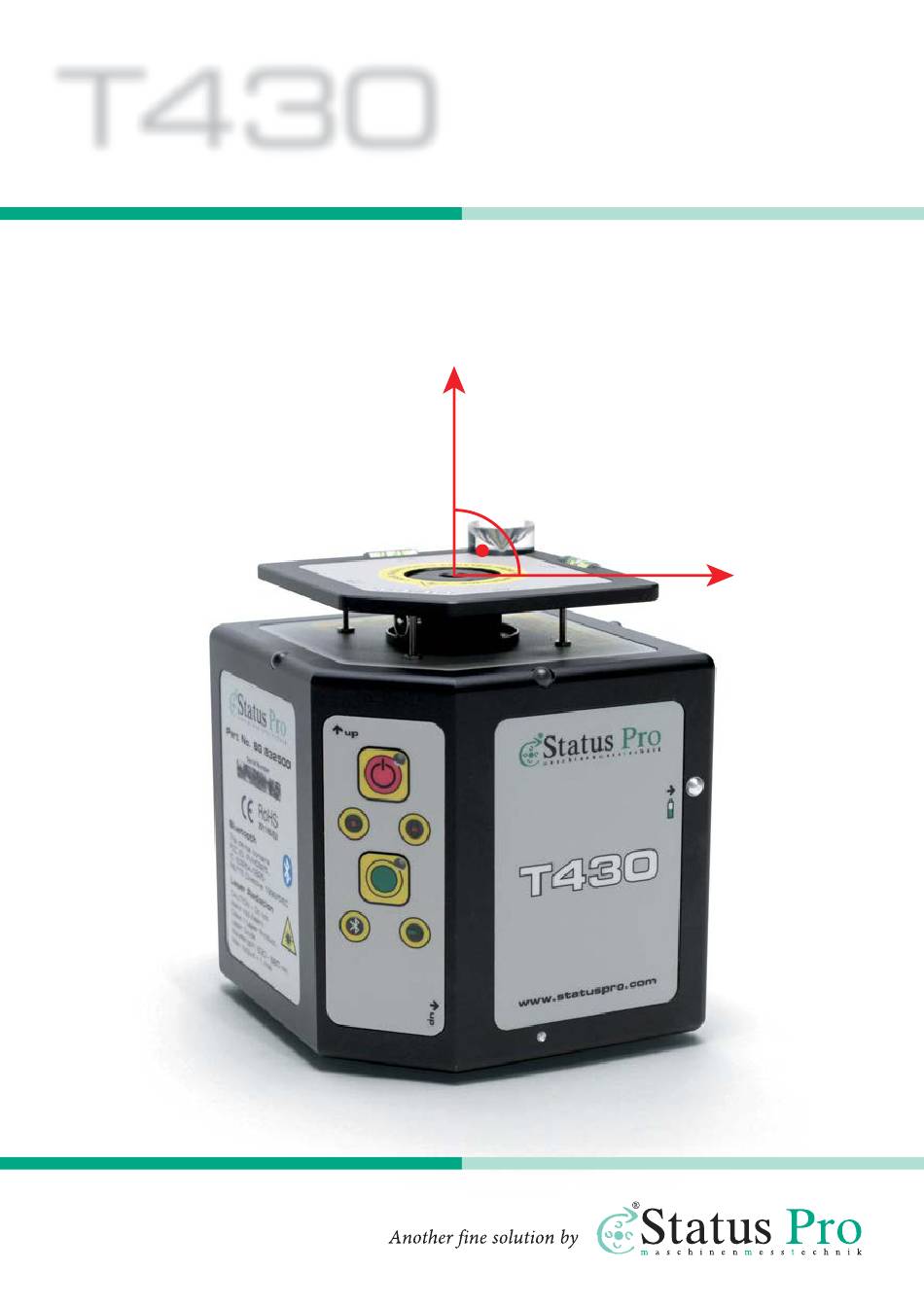

- Page 1 T430 Lasertransmitter User Guide BA 1146 E...
-
Page 2: Table Of Contents
Rotational Laser T430 (BG 832500) We would like to congratulate you on the purchase of your Status Pro T430 Laser trans - mitter. Before initial usage you should carefully read the safety instructions as well as the user guidelines contained in this manual. We wish you every success when using this measurement instrument. - Page 3 Laser position without controlling function ........16 Laser position with remote controlling of the T430 Laser ......16 Calibration command from the RC310 .
-
Page 4: S Fety Instructions
1.1 Class of Laser The laser light emitted from a Status Pro Laser has an output rating of < 1,0 mW. The Laser is placed in the category „Class 2“ and is classified as safe for the use as a measurement instrument. -
Page 5: Standards
SAFETY INSTRUCTIONS 1.2 Standards All Status Pro Laser and Receiver Instruments are developed and manufactured according to the following CE Standards: • EN 61000-6-3:2007 • EN 61000-6-2:2005 • EN 61000-4-2 • EN 61000-4-3 1.3 Advice on rechargeable cells If the equipment is being stored for a longer period of time or being powered using mains, then the batteries should be removed to prevent damage of the instrument through leak- age. -
Page 6: Instrument Care
To be able to identify the equipment when seeking advice always quote the serial number of the equipment. The manufacturer does not accept any responsibility for damage incurred through incorrect maintenance carried out by non-authorized personnel. Status – T430 User Guide... -
Page 7: Calibration And Repair
Within the scope of the service checks, the complete system will also be examined for possible wear or damage, as well as receiving any software updates. The date of the next service check for your equipment is stamped on the Status Pro calibration sticker. -
Page 8: Getting St Rted
GETTING STARTED 2. Getting started 2.1 The T430 Keypad Laser aperture (rotating beam) Opening-button for battery compartment Infrared receiver Laser aperture (static beam) Keypad Power button Horizontal spirit level (coarse) Vertical spirit level (coarse) Self-levelling button Bluetooth connection readout Battery display Status –... -
Page 9: Power Supply
10 hours of measurement time. It is necessary to charge the batteries on an extern charging station. The battery compart- ment is located on the back side of the T430. Open the battery compartment by pressing the button. -
Page 10: Setting Up T430
GETTING STARTED 2.3 Setting up T430 Position The T430 Laser, depending on the task, can be positioned vertically (upright), horizontally (lying or prone), or at a freely selectable angle. Upright Position In the upright position, the static beam is in the vertical plane and the rotating beam is in the horizontal plane. -
Page 11: Starting The T430
The narrow front side houses the necessary buttons to start the T430 Rotational Laser. Turn the T430 on by pressing the power button, turn off by pressing the button again. Pressing the button once starts the rotation of the laser beam. -
Page 12: Adjust The T430
2.5 Adjust the T430 Levelling The T430 has different internal electronic spirit levels enabling the laser beam or plane to be “aligned“ or levelled parallel to the earths gravitational “pull“. Using this function, a reference plane (laser plane), against which the measurement object can be measured, is quickly and easily established. -
Page 13: Control Via Infrared
Its primary use is to enable operation of the T430 without physically touching the laser unit, all functions of the T430 are possible using the RC310 except for turning on and off. The RC310 can also be used for showing the measurement value of a R310 reveiver if the sensor is at a distance from the Laser. -
Page 14: Function Keys On The Rc310
If the power button is pressed and held for longer than 1,5 seconds, the RC310 will be switched off. (Note: If the RC310 is pointing in the direction of the IR opening on the T430 Laser, the Levelling function could be turned on or off unintentionally). -
Page 15: Configuring The Rc310
Display contrast: 0 - 63 T u r n o f f : 1 0 m i n Auto turn-off time: 2 – 240 min / Off Instrument information: software version, internal check sum, battery level and temperature Status – T430 User Guide... -
Page 16: Reset Function
R310 can differ slightly from the value being displayed by the RC310 as the values for the laser positioning are evaluated slightly differently. Again, to achieve laser positioning of the T430 Laser and obtain values on the RC310 the infra-red on the R310 must be activated. -
Page 17: Calibration Command From The Rc310
The RC310 receives and displays a new value every 500ms, signalised by a “click”. Calibration command from the RC310 For Information only, when the R310 has sent a command to the T430 for re-calibration, the axis which has been calibrated will be shown in the RC310 display. -
Page 18: Sign Ls Nd Speci L Fe Tures
4.4 Levelling-LED for X-/Phi-axis Permanently lit • Axis is in levelling mode • Power-On- / Power-Off-Sequence 5Hz-Flash • Levelling not possible, outside of measurement range 1Hz-Flash • Temperature drift too large (usually during warm-up) – WAIT Status – T430 User Guide... -
Page 19: Levelling-Led Für X-/Z-Achse
Calibration could not be conducted 5Hz-Flash • Limiter for the Y-axis has been triggered (the end of position or the travel range has been reached or cannot be exited) Short Pulses • Single steps in direction of Y- Status – T430 User Guide... -
Page 20: Red (X+)-Led
Levelling: Y-axis is more than 1000 steps away from calibrated levelling value • Levelling: Y-(Z-)axis displays restive values 5Hz-Flash • Levelling not possible, outside measurement range • 2-Sensor-Control: Y-axis is more than 5 steps away from target position Status – T430 User Guide... -
Page 21: Green (Y-)-Led
• Levelling demand (after power on): Device in warming phase 0,5Hz-Flash (1 min) • Levelling demand (after power off): Warning for unreliable values • 2-Sensor-Control: Y-axis is more than 5 steps away from target position Status – T430 User Guide... -
Page 22: Green (X+)-Led
Levelling: Y-axis is more than 1000 steps away from calibrated levelling value • Levelling: Y-(Z-)axis displays restive values 5Hz-Flash • Levelling not possible, outside measurement range • 2-Sensor-Control: Y-axis is more than 5 steps away from target position Status – T430 User Guide... -
Page 23: Technic L Det Ils
Usable rotation plane: 360° Power supply: Li-Ion accumulator (changeable) Weight: 802g ccuracies of the T430 (optimal conditions) Straightness measurement: < ((0,5 µm)² + (0,75 µm/m)²) Flatness measurement: < ((10 µm)²“ + (1,2 µm/m)²) Flatness with ProLevel SW: < ((4 µm)² + (1,5 µm/m)²) -
Page 24: Ccessories
Rugged UMPC for industrial on-site. The UMPC offers shockproof design and rubber grips with handstraps. The computer is suitable for use “in the field”. Internal data connection to the Status Pro sensor technology over USB and Bluetooth • Accumulator exchangeable while operating •... - Page 25 The R280 measures the position of the rotating laser beam with respect to a surface in much the same way as an R310 Sensor. The measurement range is up to 80metres and it has a built-in bluetooth pack for PC communication. Status – T430 User Guide...
- Page 26 µm. It can be used for machine alignment as well as squareness and perpendicularity measurements. The R290 Receiver in combination with the T430 Laser is a highly precise measurement system. R540 Laser Receiver (BG 830440) The R540 is a very accurate and yet robust Laser Position Sensor especially developed for measuring linearity.
- Page 27 The toolkit offers you help for every measuring situation for quick and efficient installation on various machines. Of course all following articles are also available separately. Content: 1x T430 Adapter for large L bracket Interface to BG 832254 (BG 832253) 1x Switch Magnet Base for T430 Interface Plate BG_832251...
-
Page 28: Products Nd Services
The use of a laser beam reference together with tradition industrial measurement tech - niques has made it possible to build tools which simplify these alignment procedures. Status Pro develops and manufactures laser alignment equipment and we are committed to this process. Most... -
Page 29: Status Pro Services
PRODUCTS AND SERVICES Status Pro Services Field Measurement Over the past 20 years Status Pro has developed a great deal of experience in industrial geometrical measurement. The nature of the business is that the measurements and alignment applications are spread across a wide range of industries. -
Page 30: Notes
NOTES 8. Notes Status – T430 User Guide... - Page 31 NOTES Status – T430 User Guide...
- Page 32 B 1146 E 11/18 · Design / DTP: Seichter & Steffens Grafikdesign, D-44229 Dortmund. Copyright 2018 Status Pro Maschinenmesstechnik GmbH. This brochure or parts thereof may not be copied or repro- duced in any other way without prior approval by Status Pro GmbH. Technical correctness and completeness remain reserved and may be subject to changes without prior information.
