9

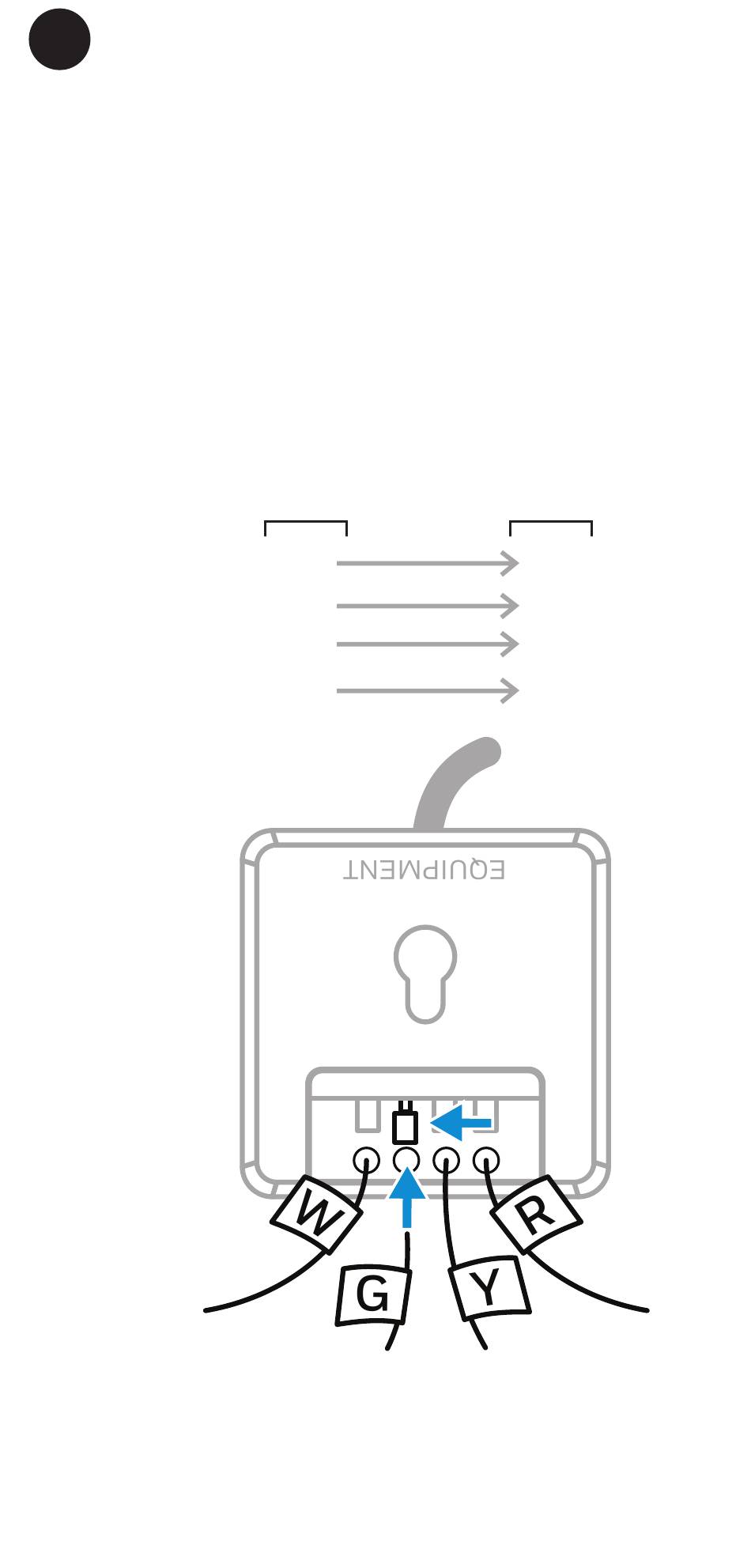

Connect wires to the C-Wire Adapter
Firmly depress the terminal tabs
and insert the labeled wires into the
"Thermostat" side of your C-Wire
Adapter.
Insert the wires into their
corresponding terminals as shown
below.
8
Wires
W
G
Y
R
THERMOSTAT
This will convert the G
into C and Y into K wires
at your thermostat.
Terminals
W
C
K
R
