Capanivo

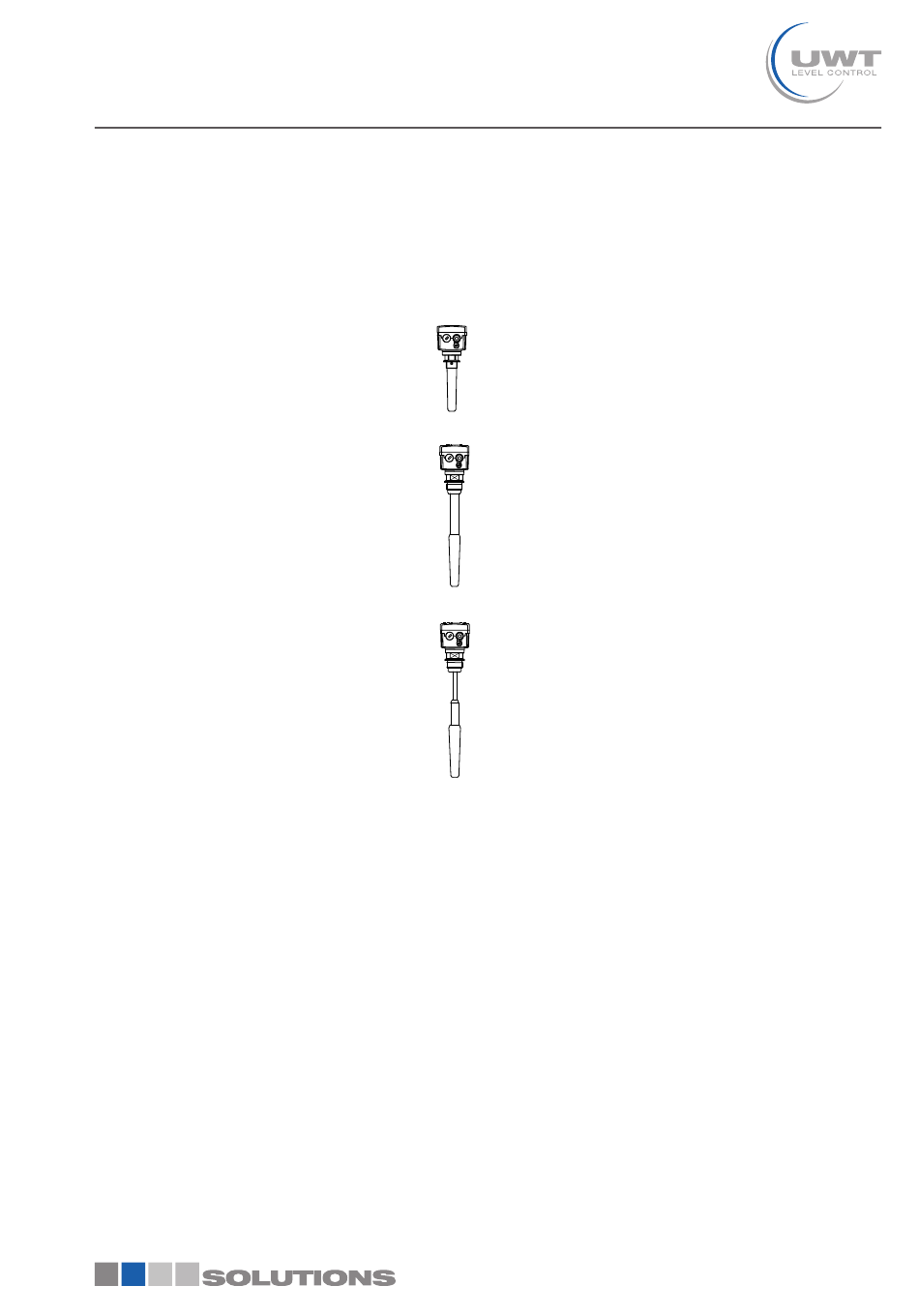

Table of contents
------------------------------------------------------------------------------------------------------------
CN 4020
------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------
Subject to change.
All dimensions in mm (inches).
All prices in Euro, excluding VAT.
All prices are EXW Betzigau, excluding
packaging costs.
CN 4000
®
Level limit switch
Series CN 4000
Selection list
Valid: From 01.04.2016 until 31.03.2017, unless otherwise agreed.
By publishing this selection list all other lists become invalid.
We assume no liability for typing errors.
Different variations to those specified are possible.
Please contact our technical consultants.
pl010416
Page
2
4
5
7
8
9
11
12
13
page
1
Advertisement
Table of Contents
Related Manuals for UWT Capanivo CN 4000 Series
Summary of Contents for UWT Capanivo CN 4000 Series
-
Page 1: Table Of Contents
Capanivo ® Level limit switch Series CN 4000 Selection list Table of contents Page Specifications Applications ------------------------------------------------------------------------------------------------------------ CN 4020 Short extension length ------------------------------------------------------------------------------------------------------------ CN 4030 Pipe extension ------------------------------------------------------------------------------------------------------------ CN 4050 Cable extension ------------------------------------------------------------------------------------------------------------ Options / accessories Dimensions Electrical installation Spare parts Subject to change. -
Page 2: Specifications
Capanivo Level limit switch ® Series CN 4000 Selection list Specifications • Level limit detection in bulk goods / solids • Sensitivity: dielectric constant ≥1,6 • Compact unit • Precalibration allows measurement of most applications without • Wide range of applications, no maintenance calibration on site •... - Page 3 Capanivo ® Level limit switch Series CN 4000 Selection list Specifications Length of extension 210 .. 3.000mm (8.3 .. 118”) -40 .. +60°C (-40 ..+140°F) Ambient temperature -20 .. +60°C (-4 .. +140°F) (Ex) -40 .. +110°C (-40 .. +230°F) Process temperature -20 ..
-
Page 4: Applications
Capanivo Level limit switch ® Series CN 4000 Selection list Applications Detection of solids CN 4020 optional CN 4030 sliding sleeve Version 180°C application in down pipe CN 4050 page CN 4000 pl010416... -
Page 5: Short Extension Length
Capanivo ® Level limit switch Series CN 4000 Selection list CN 4020 (120°C) Short extension length Version: 120°C, G1", L=155mm, PPS (food grade) Dimensions: see page 11 Cable entries: M20x1,5 (1x cable gland + 1x blind plug)* Housing material: Plastics PA6* *Options see page 9 Basic type CN 4020 (120°C) -
Page 6: Short Extension Length
Capanivo Level limit switch ® Series CN 4000 Selection list CN 4020 (180°C) Short extension length Version: 180°C, G1 1/2", 1.4305/PPS (food grade) Dimensions: see page 11 Cable entries: M20x1,5 (1x cable gland + 1x blind plug)* Housing material: Plastics PA6* *Options see page 9 Basic type CN 4020 (180°C) -
Page 7: Cn 4030 Pipe Extension
Capanivo ® Level limit switch Series CN 4000 Selection list CN 4030 Pipe extension Version: G1 1/2", Aluminium/1.4305/PPS (food grade) Dimensions: see page 11 Cable entries: M20x1,5 (1x cable gland + 1x blind plug)* Housing material: Plastics PA6* *Options see page 9 Basic type CN 4030 •... -
Page 8: Cn 4050 Cable Extension
Capanivo Level limit switch ® Series CN 4000 Selection list CN 4050 Cable extension Version: G1 1/2", extension PE/PPS/PBT Dimensions: see page 11 Cable entries: M20x1,5 (1x cable gland + 1x blind plug)* Housing material: Plastics PA6* Cable length can be shortened at site *Options see page 9 Basic type CN 4050... -
Page 9: Options / Accessories
Capanivo ® Level limit switch Series CN 4000 Selection list Options / Accessories Options Guarantee extension to 5 years pos. 11x • ....................Weather-protection cover • pos. 21 ......................(for Ex only approved for Zone 22) Housing material • pos. 22a Aluminium .......................... - Page 10 Capanivo Level limit switch ® Series CN 4000 Selection list Options / Accessories pos. 21 Adapter Weather protection cover G 1" to G 1 1/2" 100mm (3.94“) 165mm (6.30“) 95mm (3.54“) pos. 27 Bulb in cable gland Pos. 35x Valve connector Enclosure plastic Protection IP65 pos.
-
Page 11: Dimensions
Capanivo ® Level limit switch Series CN 4000 Selection list Dimensions Housing versions Plastics Aluminium CN 4020 Version 120°C Version 180°C Version 180°C L = 190mm L = 400mm CN 4030 CN 4030 CN 4050 CN 4050 CN 4000 page pl010416... -
Page 12: Electrical Installation
Capanivo Level limit switch ® Series CN 4000 Selection list Electrical installation Relay SPDT Power supply: 21..27V DC ±10%* 1,5W *incl. 10% of EN 61010 Fuse on power supply: max. 10A, fast or slow, HBC, 250V Signal output: see "Functional grounding"... -
Page 13: Spare Parts
Capanivo ® Level limit switch Series CN 4000 Selection list Spare parts For type Electronics Article number CN 4020 Relay SPDT pl406100 • Version 120°C 21..27V DC Relay DPDT pl406110 • 21..230V AC 21..45V DC pl406120 • 20..40V DC CN 4020 Relay DPDT pl406111 •...
