UWT Capanivo CN 4000 Series Instruction Manual

Hide thumbs Also See for Capanivo CN 4000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Capanivo
®
CN 4000
Series
Instruction manual
010523
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Capanivo CN 4000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UWT Capanivo CN 4000 Series

Summary of Contents for UWT Capanivo CN 4000 Series

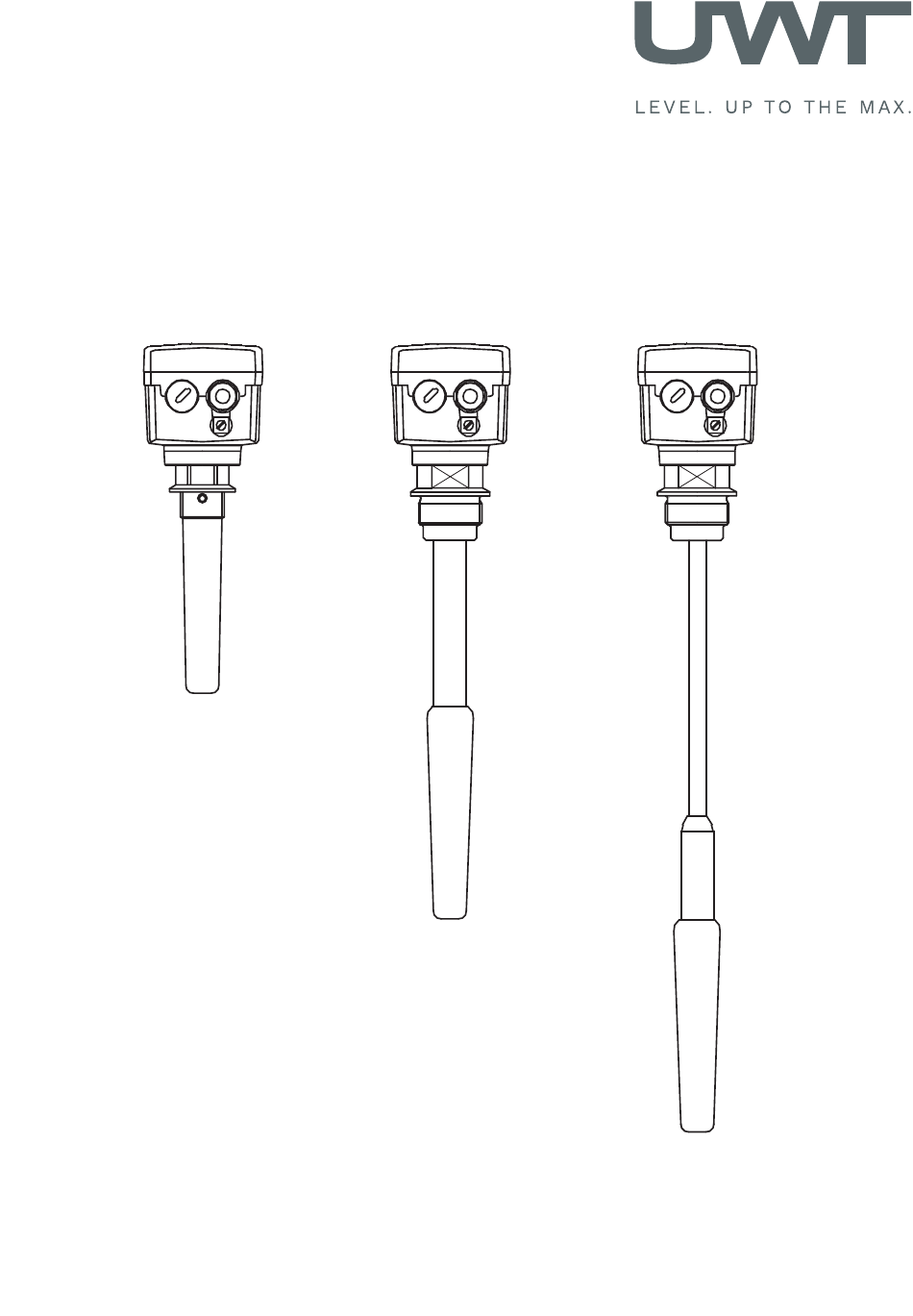

  • Page 1 Capanivo ® CN 4000 Series Instruction manual 010523...
  • Page 2 UWT GmbH Westendstraße 5 Tel.: +49 (0)831 57123-0 Internet:www.uwtgroup.com D-87488 Betzigau Fax: +49 (0)831 76879 E-Mail: info@uwtgroup.com Scope of this Types CN 4020 / 4030 / 4050 instruction / ATEX / IEC-Ex Approval CE / TR-CU manual: Electronic modules Relay (SPDT, DPDT)

  • Page 3: Table Of Contents

    Table of Contents Safety /warning notes Page Fields of application Page Technical Data Page Installation Page Electrical connection Page Settings Page Switching logic Page Maintenance Page Spare parts Page ATEX / IEC-Ex Notes Page...

  • Page 4: Safety /Warning Notes

    Safety /warning notes Installation, maintenance and commissioning may be accomplished only by qualified technical personnel. For terminal connection of the device, the local regulations or VDE 0100 (Regulations of German electrotechnical Engineers) must be observed. All field wirings must have insulation suitable for at least 250V AC. The temperature rating must be at least 90°C (194°F).

  • Page 5: Technical Data

    Technical Data Plastics PA Aluminium...
  • Page 6 CN 4020 120°C Material according to order data Accessory min. -1bar (-14.5psi) max. +25bar (+363psi) ~ 0,5kg (1.1 lbs)
  • Page 7 CN 4020 180°C L=190mm L=400mm min. -1bar (-14.5psi) max. +16bar (+232psi) ~ 1.8kg (4.0 lbs)
  • Page 8 CN 4030 Material according to order data min. -1bar (-14.5psi) max. +16bar (+232psi) ~ 0.8 kg (1.8 lbs)+ L: 0.8 kg/m (1.8 lbs/39.9“) (1) ~ 1.5 kg (3.3 lbs)+ L: 1.6 kg/m (3.5 lbs/39.9“) (2) (1) = Aluminium (2) = Stainless steel...
  • Page 9 CN 4050 Material according to order data min. -1bar (-14.5psi) max. +6bar (+87psi) ~ 0.9 kg (2.0 lbs)+ L: 0.25 kg/m (0.55 lbs/39.9“) (1) ~ 1.4 kg (3.1 lbs)+ L: 0.25 kg/m (0.55 lbs/39.9“) (2) (1) = Aluminium (2) = Stainless steel...
  • Page 10 °C CN 4020 120°C...
  • Page 11 °C CN 4020 180°C...
  • Page 12 °C CN 4030...
  • Page 13 °C CN 4050...
  • Page 14 Bulk material ε ≥ 1.6 <30mm ε Dielectric constant...

  • Page 15: Installation

    Installation CN 4020 Protective angle (canopy) in case of high mechanical load...
  • Page 16 CN 4020 Mech. load of the sensor Observe minimum distances...
  • Page 17 CN 4030 Sliding sleeve: Tighten straining screws with 20Nm...
  • Page 18 CN 4030 Mech. load of the sensor Observe minimum distances...
  • Page 19 CN 4050 Mech. load of the sensor Observe minimum distances...
  • Page 20 Fixing Threads 20Nm 40Nm (2) (1) Flat gasket (2) Metal Alignment Ingress protection IP 66...
  • Page 21 Treatment Option: Weather protection cover for Ex only approved for Zone 22...

  • Page 22: Electrical Connection

    Electrical connection Relay SPDT 0.14 - 2.5mm² (AWG 26-14) max. max. 25/26 250V 250V PE + - AC max. 250V, 3A DC max. 30V, 5A 21...27V DC ±10% , max. 1.5W 2225Vrms Power supply Including 10% from EN 61010 Non inductive Isolating voltage...
  • Page 23 Relay DPDT 0.14 - 2.5mm² (AWG 26-14) 25/26 max. 250V PE + - AC max. 250V, 8A DC max. 30V, 5A 21...230V 50-60Hz ±10% , max. 18VA 21...45V DC ±10% , max. 2W 2225Vrms 2225Vrms Power supply Including 10% from EN 61010 Non inductive Isolating voltage...
  • Page 24 0.14 - 2.5mm² (AWG 26-14) 25/26 max. max. 0,4A 250V PE + - 20...40V DC ±10% , max. 0.5A Power supply Including 10% from EN 61010...
  • Page 25 Functional grounding by process connection Metal Use flat gasket, no teflon tape...
  • Page 26 alternative by cable Use internal or external terminal Grounded metal parts in case of non metal bin...

  • Page 27: Settings

    Settings Relay SPDT Signal delay...
  • Page 28 Relay DPDT / PNP Signal delay...

  • Page 29: Switching Logic

    Signal output logic yellow green yellow green (1) = Relais SPDT (2) = Relay DPDT (3) = PNP (4) = LED Signal...

  • Page 30: Maintenance

    Maintenance...

  • Page 31: Spare Parts

    Spare parts CN 4020 120°C SPDT SPDT 21..27V DC pl406100 DPDT 21..230V AC pl406110 21..45V DC 20..40V DC pl406120 DPDT CN 4020 180°C DPDT 21..230V AC pl406111 21..45V DC 20..40V DC pl406121 CN 4030 / CN 4050 No spare parts available...

  • Page 32: Atex / Iec-Ex Notes

    ATEX + IEC-Ex Notes Permitted relative pressure -0,2...+0,1bar (-2.9…+1.45psi) Ambient temperature Max. surface temperature 60°C (140°F) CN 4020: 120°C (248°F) 120°C (248°F) 60°C (140°F) CN 4030: 110°C (230°F 120°C (248°F) 60°C (140°F) CN 4050: 80°C (176°F) 135°C (275°F) CN 4020: CN 4020: 60°C (140°F) 120°C (248°F)
  • Page 33 Installation A pull relief must be provided Connect with equipotential bonding of the plant...
  • Page 34 ATEX / IEC-Ex: Further Remarks For installation and field wiring the respectively valid installation regulations of the respective country must be observed. Commissioning only with closed lid. Do not remove the lid (cover) while circuits are alive. Before opening the lid take care, that no dust deposits or whirlings are present. The installation has to be carried out in a way, that mechanical friction or impact does not cause sparks between the aluminium enclosure and steel.

This manual is also suitable for:

Capanivo cn 4020Capanivo cn 4030Capanivo cn 4050
