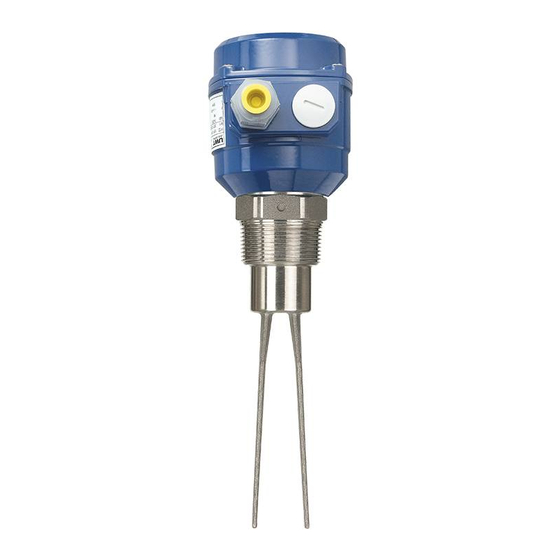

UWT Vibranivo VN 4000 Series Technical Information/Instruction Manual
Level limit switch
Hide thumbs
Also See for Vibranivo VN 4000 Series:
- Technical information/instruction manual (17 pages)
Table of Contents
Advertisement
Quick Links
Vibranivo
Table of contents
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------
Disposal
-----------------------------------------------------------------------------------------------------
Subject to technical change.
All dimensions in mm (inch).
VN 4000 g
Level limit switch
®
Series VN 4000
Technical Information / Instruction manual
We assume no liability for typing errors.
Different variations than specified are possible.
Please contact our technical consultants.
gi270814
Page
2
3
4
9
10
11
14
17
17
18
19
22
25
page
1
1
2
3
4
5
6
7
8
9
10
11
12
