4. Adjustment / Operation

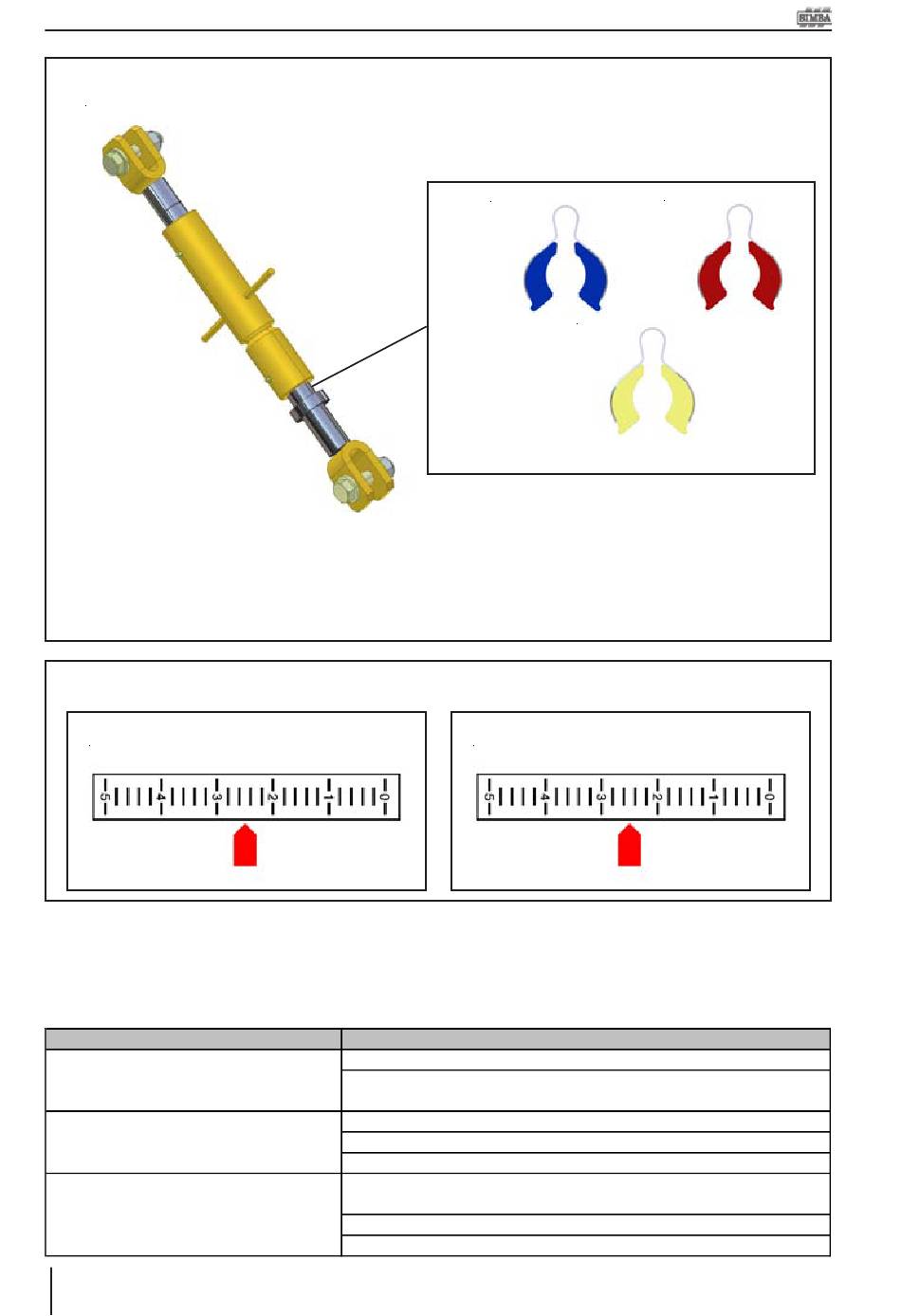

Disc Frame Pitch
The centres of the adjuster should be factory set to 640mm when the machine is re-
ceived. This is an ideal starting point before beginning to add shims to set the disc pitch.
Disc Angle Adjusters
Front Gang

4.5.1 Variation of Settings

If working conditions change (for example, from dry to wet conditions) then the following table
should be consulted as a rough guide.
VARIATION IN CONDITION
FROM HARD/DRY TO LOOSE/WET
FROM STUBBLES TO HIGHER TRASH
(TO INCREASE INCORPORATION)
FROM SHALLOW TO DEEP (NOTE 75-
100mm MAX WORKING DEPTH)
28 X-Press
Operating Instructions
1x
Rear Gang
SETTING REVISION
REDUCE DISC ANGLE
INCREASE DISC FRAME PITCH & DRAWBAR SHIM LENGTH
(RATIO 2 DRAWBAR : 1 DISC PITCH)
INCREASE DISC ANGLE
REDUCE SPEED
INCREASE DRAWBAR SHIMS
DECREASE DISC FRAME PITCH & DRAWBAR SHIM LENGTH
(RATIO 2 DRAWBAR : 1 DISC PITCH)
INCREASE DISC ANGLE
REDUCE SPEED
1x
Blue
7mm
1x
Yellow
20mm
Red
10mm
