Data Domain DD660 Storage System

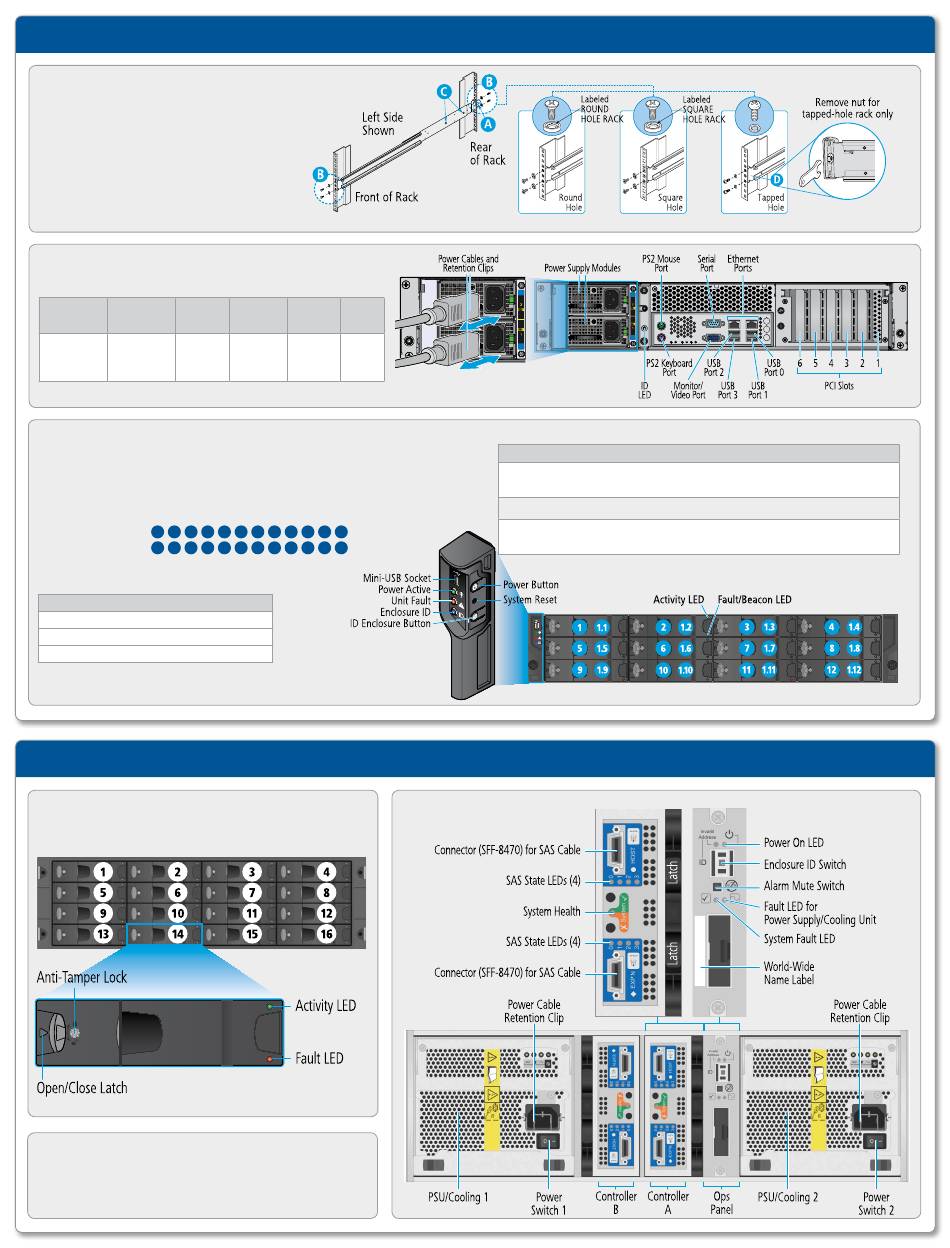

FiGurE 1: rack MountinG ProcEDurE
1. Align locating pin (A) with rear rack post.
2. Extend rails to front of rack.
3. Secure front and rear rails to rack posts with
screws and washers (B). Ensure locating
pin (A) is centered in rear rack post hole.
4. Tighten clamp screws (C).
5. Repeat for other side of unit.
FiGurE 2:
rEar PanEl anD inPut/outPut connEctivity
Slot 6 Slot 5 Slot 4
PCI-e (x8) PCI-e (x8) PCI-e (x4)
GbE #2 or GbE #1 or SAS #1
10 GbE #2 10 GbE #1
or VTL #1 or VTL #2
FiGurE 3:
Front PanEl anD DiSk locationS
Blue circles illustrate the locations of the hot-swap disks.
Hot-swap disks
Physical location:
1 2 3 4
Logical numbering:
1.1 1.2 1.3 1.4
Front Operator Panel LEDs
LED Status
Power Active Steady Green: Good
Unit Fault Steady Amber: Fault
Enclosure ID Blue: Only when activated
Data Domain ES20 Expansion Shelf
FiGurE 4:
ES20 Shelf disk-drive numbering and components:
rack MountinG ProcEDurE
Use the rack installation instructions that are included with
the slide rails in the ES20 Expansion Shelf shipping crate.
Slot 3 Slot 2 Slot 1
PCI-e (x4) PCI-X PCI-X
SAS #2 1024 MB Empty
NVRAM
5 6 7 8 9 10 11 12
1.5 1.6 1.7 1.8 1.9 1.10 1.11 1.12
Front Operator Panel Buttons
Push Button
Power
System Reset
Enclosure ID
FiGurE 5:
ES20 Shelf rear panel
Definition
Press to start boot (if system is not running).
Never shut down the system by pressing the power button.
Resets hardware and firmware. Use ballpoint pen to activate.
Press to light a blue LED front and rear to ID chassis in a stack.
Mutes audible alarm, if active.
