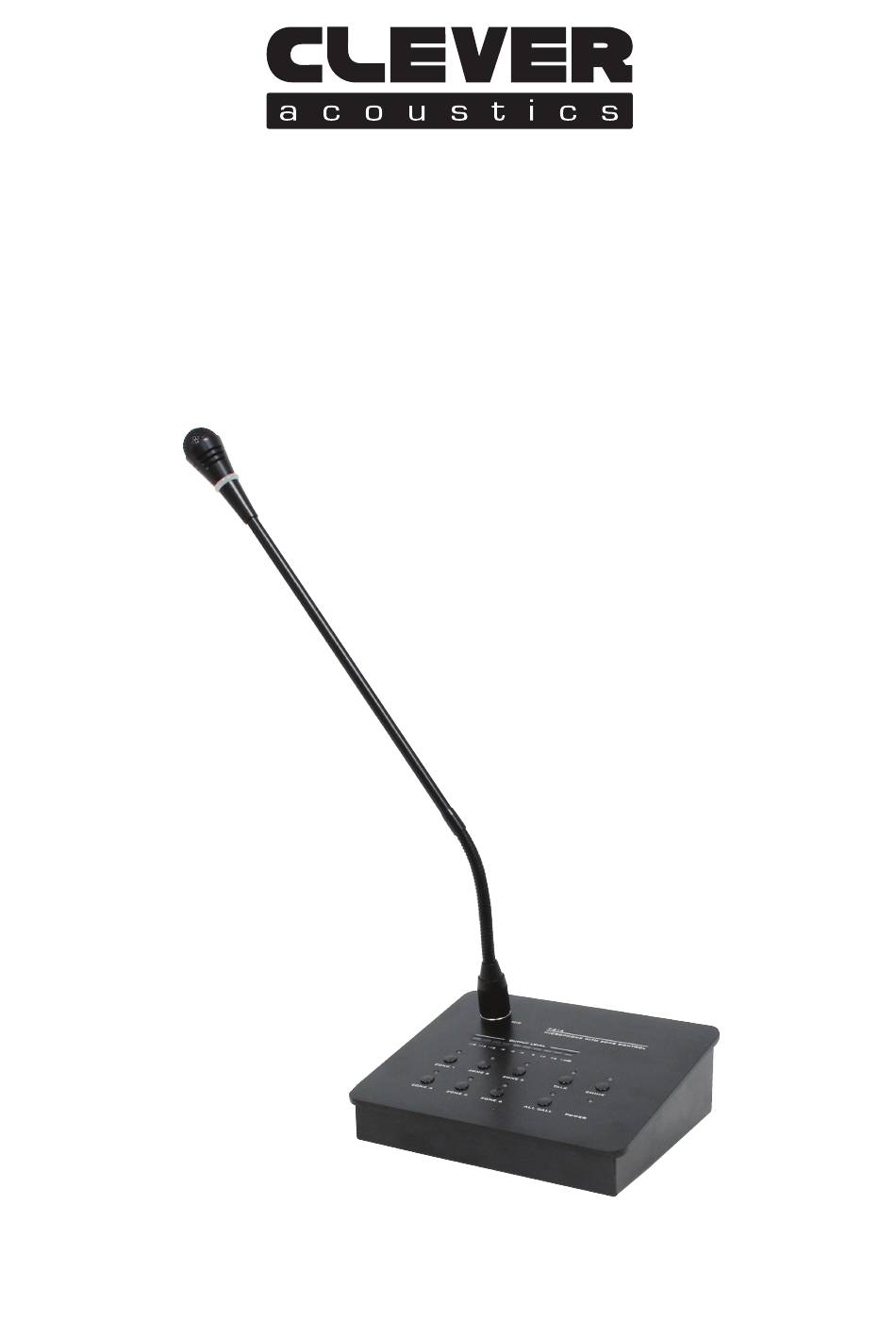

- Page 1 PM Z6 Paging Microphone User Manual Order code: CRMIC08...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.cleveracoustics.co.uk PM Z6 Paging Microphone User Manual... - Page 3 A dedicated paging microphone for the MA Z6 series mixer amplifiers offering remote paging and chime triggering. Featuring a high quality condenser microphone element for clear audio and the highest intelligibility. The PM Z6 may be powered directly from the MA Z6 series amplifiers, or for longer cable runs (50m+) the microphone may be powered by the supplied 24V DC mains adaptor.
- Page 4 08 - Power Switch 13 - Master Volume Control 04 - Talk Button 09 - 24V DC Power Input 14 - Chime Tone Selector 05 - All Call Button 10 - RS-485 Interface www.cleveracoustics.co.uk PM Z6 Paging Microphone User Manual...
- Page 5 LED indicator next to the button illuminating. The zone selection should be made prior to pressing the TALK button. Zone Memory Function - If the PM Z6 is powered off with a group of zones selected the PM Z6 will remember this setting when powered back on.
- Page 6 14. Chime Tone Selector The chime function may be set to either 2 tone or 4 tone chime. The tone must be preset during initial setup before powering on the paging console. www.cleveracoustics.co.uk PM Z6 Paging Microphone User Manual...
- Page 7 The paging console will then enter a queuing system and once the second paging console has completed paging, the flashing microphone ring will turn green automatically ready for paging. www.cleveracoustics.co.uk PM Z6 Paging Microphone User Manual...
- Page 8 COM 100V 100V 100V 100V 100V 100V MIC 4 XLR BAL MIC 3 MIC 2 MIC 1 1-GND 2-HOT+ BATT SUPPLY OUTPUT 3-COLD- COM 4-16 100V CHIME SIREN With MA Z6 Mixer Amplifier www.cleveracoustics.co.uk PM Z6 Paging Microphone User Manual...
- Page 9 PM Z6 Paging Microphone User Manual...
- Page 10 PM Z6 Paging Microphone User Manual...
- Page 11 PM Z6 Paging Microphone User Manual...
-
Page 12: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.cleveracoustics.co.uk PM Z6 Paging Microphone User Manual...
