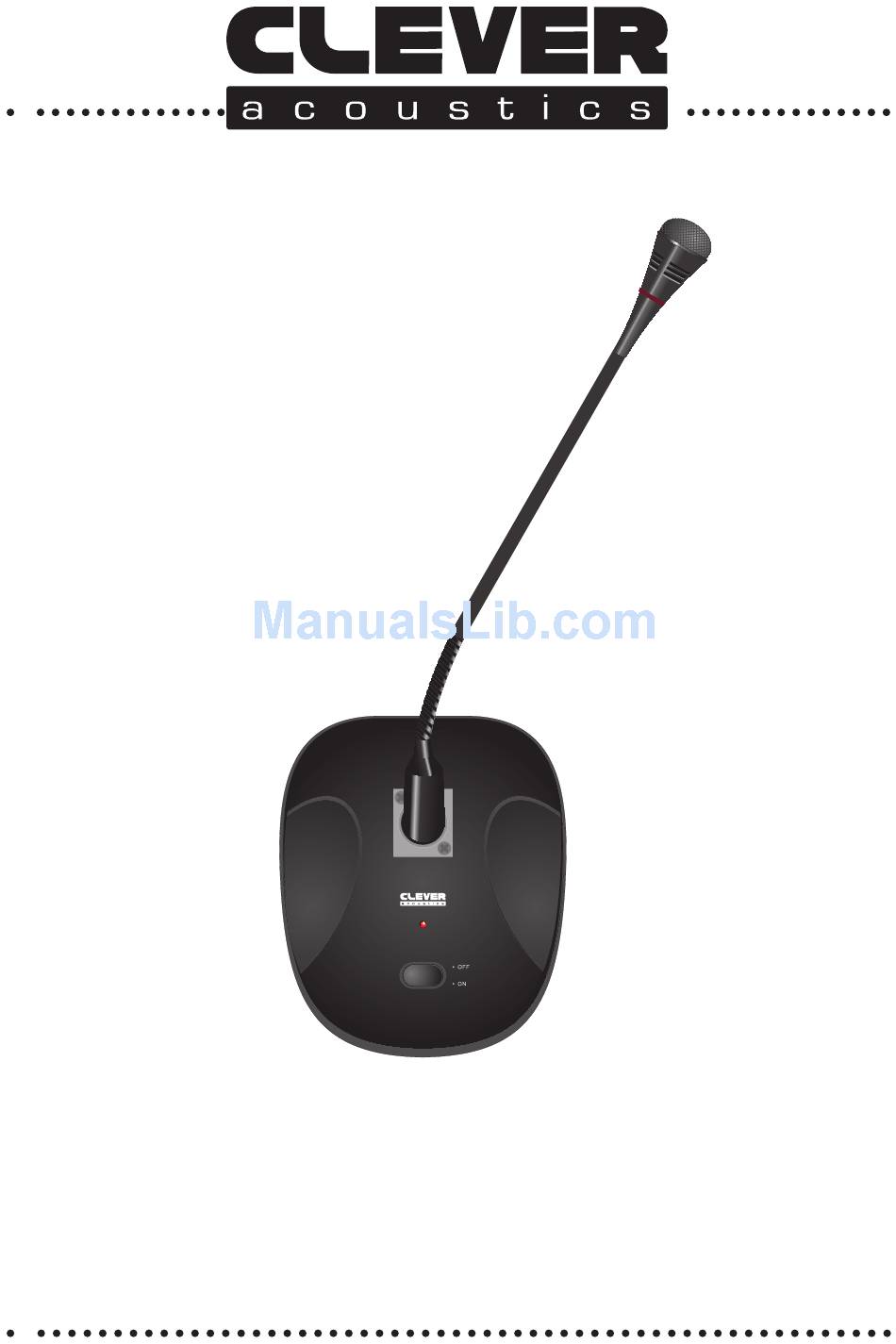

- Page 1 OUTPUT POWER IN 9V DC PM 200 PAGING MIC Battery: 9V Alkaline PM 200 DYNAMIC PAGING MICROPHONE WITH CHIME Order code: CRMIC02...
-
Page 2: Safety Instructions
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual Before your initial start-up, please make sure that there is no damage caused during... - Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never remove warning or informative labels from the equipment. • Do not open the equipment and do not modify the equipment. •...
- Page 4 The PM 200 Paging microphone is designed to be used with the MA Mixer Amplifier Series. Features • Remote paging microphone with built-in chime • Dynamic microphone capsule • Cardioid polar pattern • Push to talk button • Connection: 3-pin XLR •...
- Page 5 Overview: Identification: 1. PM 200 microphone - Connect the microphone to the PM 200 base stand uing the 3-pin XLR socket. 2. XLR mic input - Use this socket to connect to the microphone. 3. Talk LED - When the talk button has been pressed the LED will light up.
-
Page 6: Panel Connections
Panel connections: 9V DC (adaptor not supplied) Back Panel www.cleveracoustics.co.uk OUTPUT POWER IN 9V DC PM 200 PAGING MIC Battery: 9V Alkaline TEMP PROT LEVEL POWER MA 260 MIXER AMPLIFIER MIC1 MIC2 MIC3 AUX1 AUX2 BASS TREBLE MASTER MIC 1 Mixer Amplifier www.cleveracoustics.co.uk... -
Page 7: Problem Chart
Problem Chart PROBLEM CAUSE REMEDY No Power The power supply is not connected Check the power supply and any extension cables. Flat battery Replace with new 9V DC PP3 Alkaline or remove battery and operate using power supply. Check the power supply and if the The power supply of the respective No Sound plugs are properly connected with... - Page 8 www.cleveracoustics.co.uk...
