Summary of Contents for Clever Acoustics PM 300

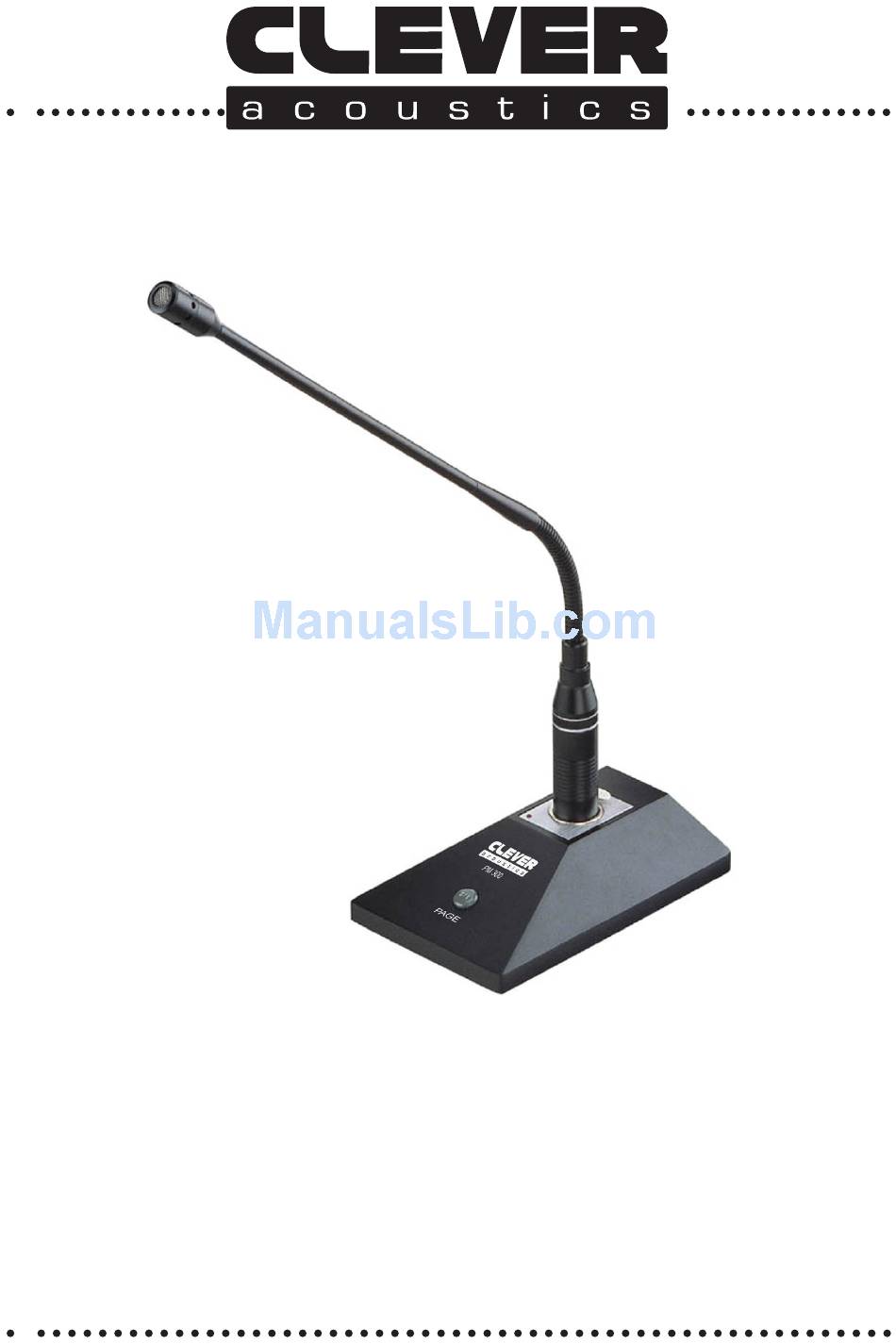

- Page 1 PM 300 CONDENSER PAGING MICROPHONE Order code: CRMIC03...
-
Page 2: Safety Instructions
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual Before your initial start-up, please make sure that there is no damage caused during... - Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never remove warning or informative labels from the equipment. • Do not open the equipment and do not modify the equipment. •...
- Page 4 The PM 300 Condenser Paging microphone is designed to be used with the MA Mixer Amplifier Series. Features • Condenser microphone capsule • Cardioid polar pattern • Push to talk button • Connection: Balanced 3-pin XLR • Requires +48V phantom power...
- Page 5 Overview: Identification: 1. PM 300 microphone - Connect the microphone to the PM 300 base stand using the 3-pin XLR socket. 2. XLR mic input - Use this socket to connect to the microphone. 3. Page button - Use this button activate the talk function.
-
Page 6: Panel Connections
Panel connections: TEMP PROT LEVEL POWER MA 260 MIXER AMPLIFIER MIC1 MIC2 MIC3 AUX1 AUX2 BASS TREBLE MASTER MIC 1 Mixer Amplifier www.cleveracoustics.co.uk DO NOT USE 4-16Ω, 70V AND 100V AT THE SAME TIME ~240V 50Hz 100W MIC 1 LINE T2AL 250V MUTE XLR/6.35MM INPUT... -
Page 7: Problem Chart
Problem Chart PROBLEM CAUSE REMEDY No Power The power cord is not connected Check the power cord and any extension cables No Sound Check the power cord and if the The power cord of the respective plugs are properly connected with product is not connected properly or the sockets. - Page 8 www.cleveracoustics.co.uk...
