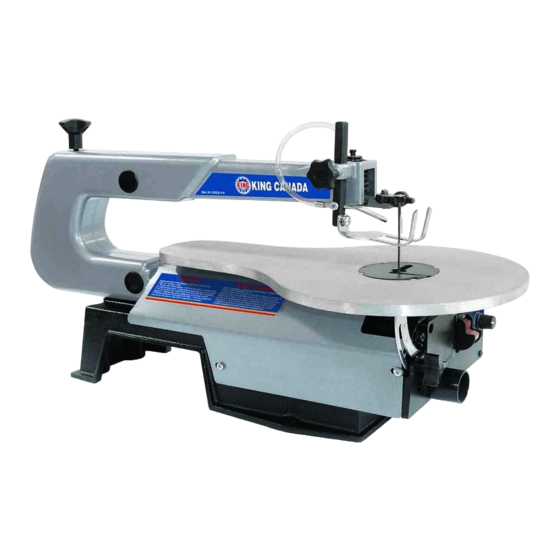

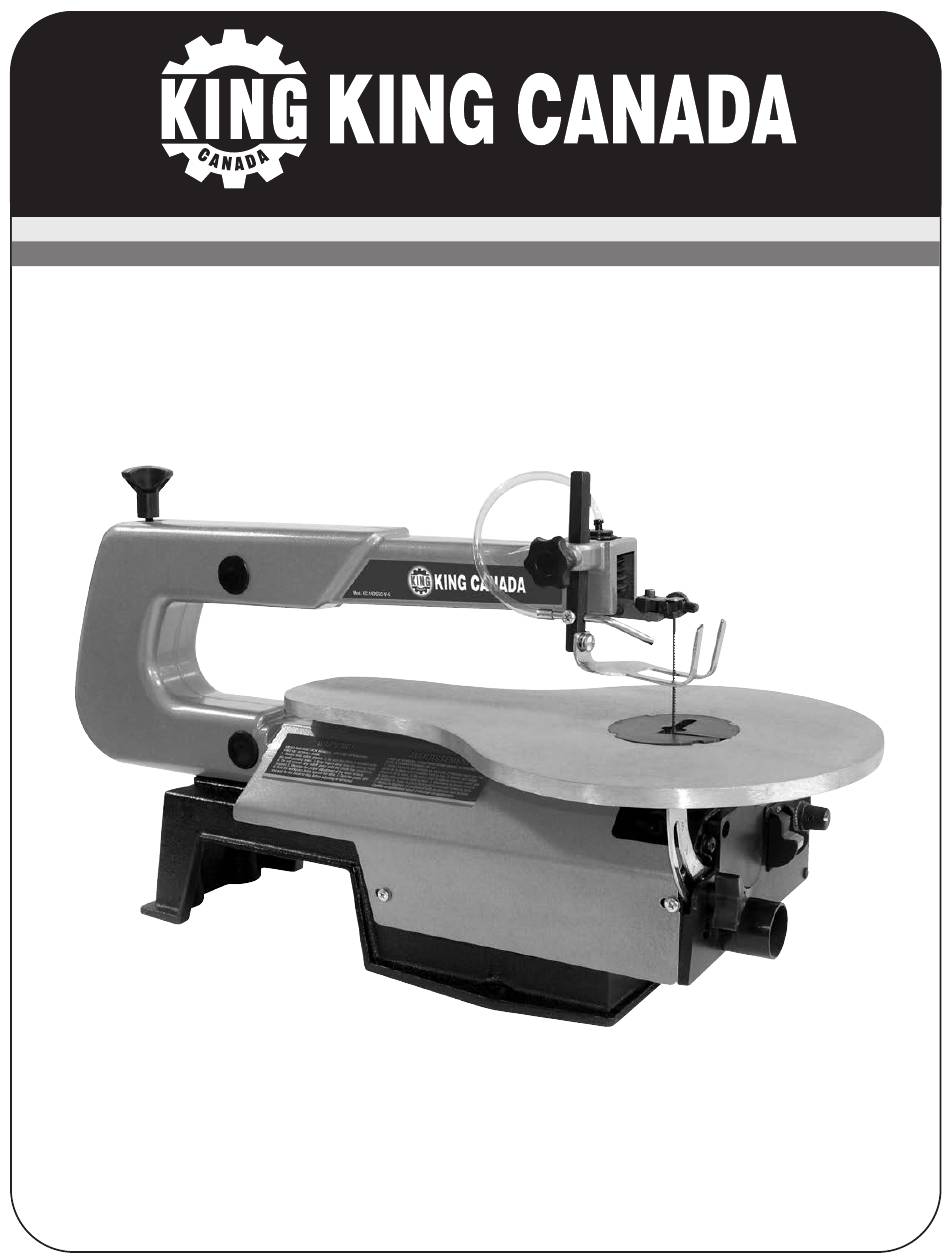

- Page 1 16” VARIABLE SPEED SCROLL SAW 09/2015 INSTRUCTION MANUAL MODEL: KC-163SSC-V-6 COPYRIGHT © 2015 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
King Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday eye- glasses only have impact resistant lenses, thet are NOT the tool. - Page 4 ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR SCROLL SAW 1. DO NOT ALTER OR MISUSE THE TOOL. jects (tools, scraps of wood...) except for the workpiece and re- lated feed and support devices for the operation planned. These tools are precision built. Any alteration or modification 9.
-
Page 5: Electrical Information
ELECTRICAL INFORMATION WARNING ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE COMPRESSOR DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY WARNING: YOUR SCROLL SAW MUST BE CONNECTED TO A 120V PROPERLY GROUNDED OUTLET... -
Page 6: Getting To Know Your Scroll Saw
GETTING TO KNOW YOUR SCROLL SAW SPECIFICATIONS Model ....................................KC-163SSC-V-6 Capacity......................................16” Maximum thickness ....................................2” Variable speed ................................550-1650 SPM Blade length......................................5” Motor ........................................1.2A Voltage .................................. 120V, 1 phase, 60 Hz Dimensions/weight ............................24-1/2” x 11” x 13” / 23 lbs Getting to know your Scroll Saw 1. - Page 7 ADJUSTING & OPERATING YOUR SCROLL SAW MOUNTING YOUR SCROLL SAW TO A BENCH 1. When mounting this scroll saw base (A) Fig.3 to a workbench (C), a solid bench is preferable over a plywood bench where noise and vibration will be more noticable. 2.
- Page 8 ADJUSTING & OPERATING YOUR SCROLL SAW ADJUSTING DROP FOOT AND BLOWER 1. After placing your workpiece on the table (before turning scroll saw to the “On” po- sition), the drop foot (A) Fig.7 must be adjusted just above the top but not in contact with the workpiece.
-
Page 9: Basic Operation
BASIC OPERATION & MAINTENANCE BASIC OPERATION Follow these instructions for operating your scroll saw to get the best results and to minimize the likelihood of personal injury. WARNING! To avoid being pulled into the blade- DO NOT WEAR: Loose fitting gloves, necktie, loose clothing, jewelry. TIE BACK LONG HAIR AND ROLL UP SLEEVES ABOVE THE ELBOWS. -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Breaking blades 1. Wrong tension. 1. Adjust the blade tension. 2. Overworking blade. 2. Reduce the feed rate. 3. Wrong blade application. 3. Use narrow blades for cutting thin wood, wide blades for thicker wood. 4.
