Summary of Contents for Supermicro AOC-SLG3-2E4T

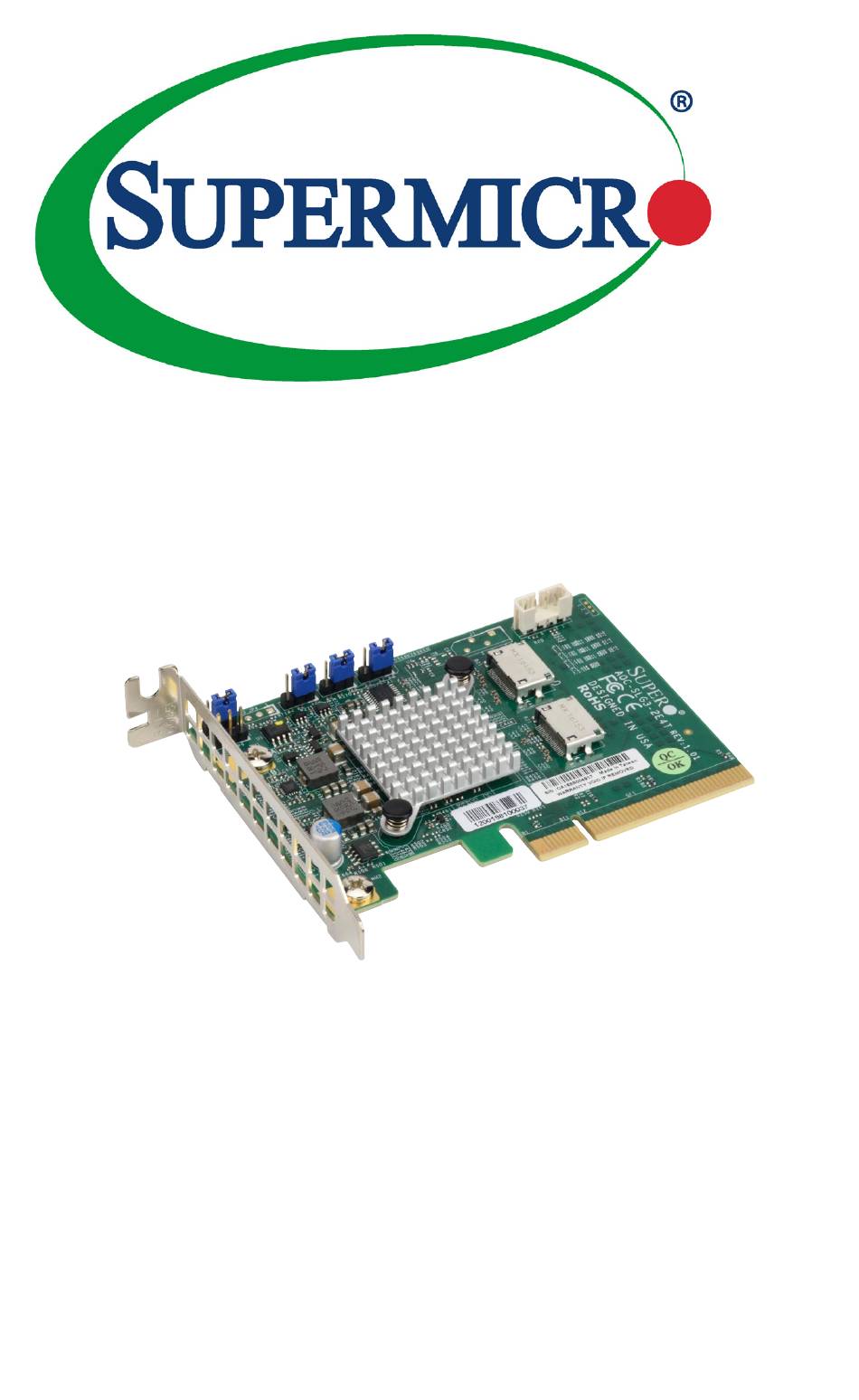

- Page 1 AOC-SLG3-2E4T User's Guide Revision 1.1...
- Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
-
Page 3: About This Expansion Card
AOC-SLG3-2E4T expansion card. About this Expansion Card The Supermicro NVMe AOC-SLG3-2E4T is a low-profile, standard Gen 3.0 PCIe x8 add-on card that features two internal NVMe OCuLink connectors for high- performance storage connectivity. This HBA card is built on the latest PCIe NVMe retimer technology. -
Page 4: Returning Merchandise For Service
You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning the AOC-SLG3-2E4T card to the manufacturer, the RMA number should be promi- nently displayed on the outside of the shipping carton, and the shipping package is mailed prepaid or hand-carried. -
Page 5: Contacting Supermicro
Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML... -
Page 6: Table Of Contents
AOC-SLG3-2E4T Expansion Card User's Guide Table of Contents Preface About this User's Guide ....................iii About this Expansion Card.................... iii An Important Note to the User ..................iii Returning Merchandise for Service ................iv Contacting Supermicro ....................v Chapter 1 Overview Overview ......................1-1 Technical Specifications .................. -
Page 7: Chapter 1 Overview
Overview Congratulations on purchasing your expansion card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please visit our website at http://www.supermicro.com/... - Page 8 AOC-SLG3-2E4T Expansion Card User's Guide Notes...
-
Page 9: Chapter 2 Hardware Components

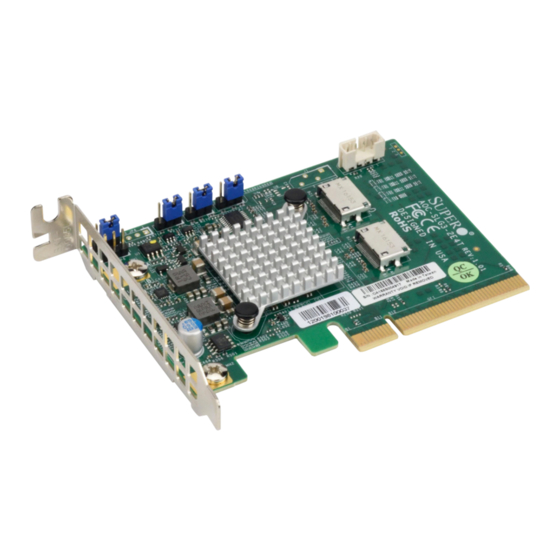

Chapter 2 Hardware Components Expansion Card Layout and Components Figure 2-1. AOC-SLG3-2E4T The AOC-SLG3-2E4T is a low-profile, PCI-E x8 buffer expansion card with an ag- gregate performance of 6.4 GB/s. The following pages describe the components and settings for the AOC-SLG3-2E4T. -
Page 10: Major Components
AOC-SLG3-2E4T Expansion Card User's Guide Major Components The following are the major components that make up the AOC-SLG3-2E4T ex- pansion card: Figure 2-2. AOC-SLG3-2E4T Layout AOC-SLG3-2E4T Components Item Description Jumper JP5 Jumper JP3 Jumper JP2 Jumper JP1 VPP I²C Connector for JNVI2C... -
Page 11: Connectors
OCuLink Connectors There are two OCuLink connectors on the expansion card. Together these connec- tors provide a transfer rate speed of up to 6.4 GB/s. Figure 2-3. OCuLink Connectors AOC-SLG3-2E4T Item Description OCuLink connector, designated NVMe0 OCuLink connector, designated NVMe1... -
Page 12: Jumpers
AOC-SLG3-2E4T Expansion Card User's Guide Jumpers Figure 2-4. Front Jumpers 2x4 Mode 1x8 Mode Explanation of Jumpers To modify the operation of the AOC, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. - Page 13 BIOS. By default, it is set to "A0" and can be configured to another value to avoid an address conflict with other devices on the SMBus. It should never be changed unless explicitly instructed by Supermicro. SMB Address...
-
Page 14: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your expansion card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 15: Before Installation
Depending upon which motherboard is used and which slot in the motherboard is selected, a riser card may or may not be required to install the AOC-SLG3-2E4T. 1. Power down the system, remove the power cords from the rear or the power supply, and remove the system cover. - Page 16 6. Connect the CBL-CDAT-0674 data cable to the JNVI2C connector on the motherboard. If more than one AOC-SLG3-2E4T is used on the same CPU, then only the lowest-numbered slot expansion card needs to be connected to the motherboard's JNVI2C.
-
Page 17: Installing The Drivers In Windows
Refer to the instructions that came with your expansion card and follow the manu- facturer's recommended steps for installing the NVMe driver. Download the latest drivers from the Supermicro project board at ftp://ftp.supermicro.com/driver/NVMe/. Uninstalling the Drivers To Uninstall the Drivers in Windows: Follow the instructions provided by the manufacturer. - Page 18 Chapter 3: Installation (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
