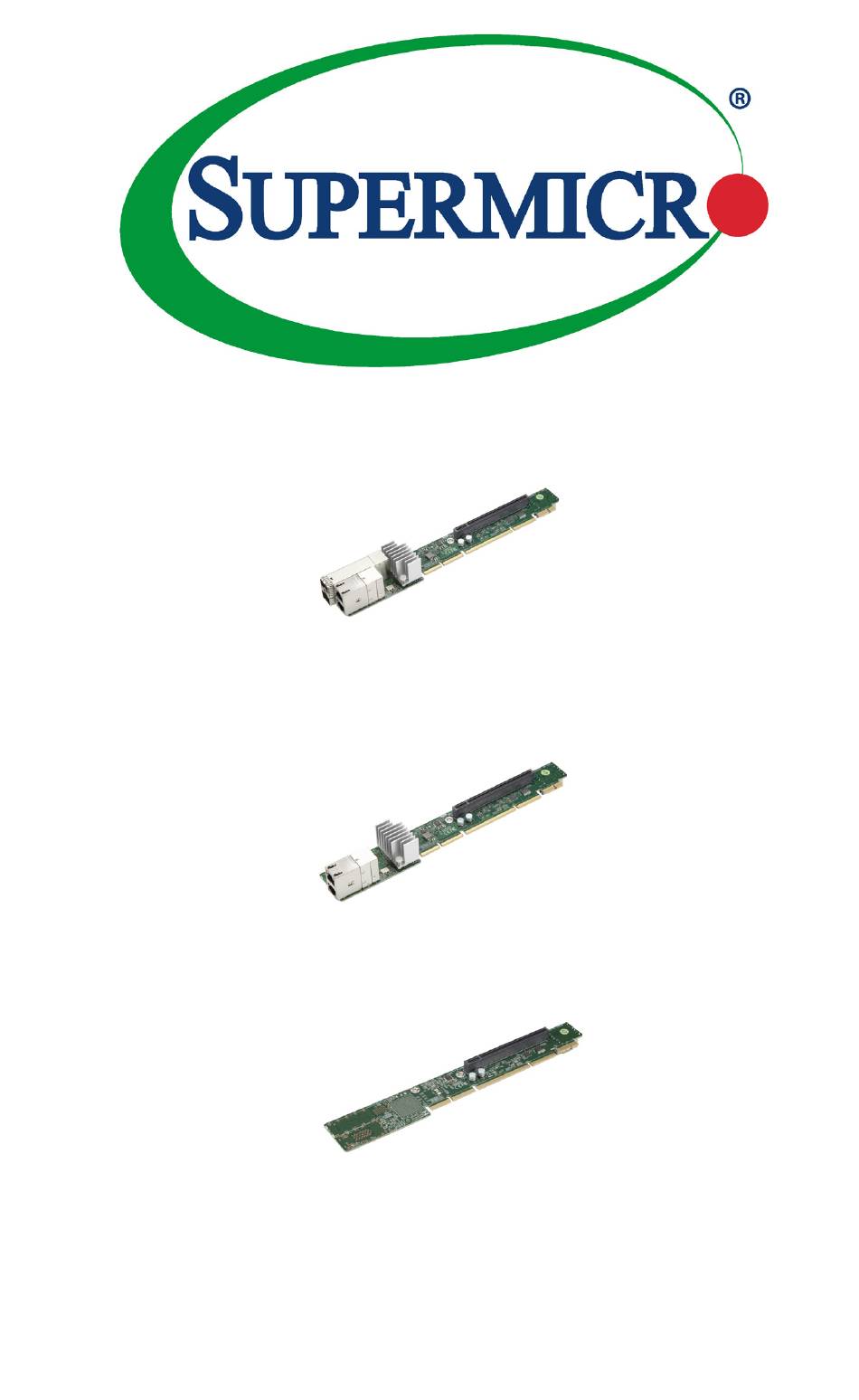

- Page 1 AOC-URG4N4-i4XTS AOC-URG4N4-i2XT AOC-URG4N4 User's Guide Revision 1.0a...
- Page 2 Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 PCI-E 4.0 expansion slots for the latest Gen 4. PCI-E add-on cards while function- ing as networking devices with various LAN controllers from GbE to 100GbE and 200GbE. The AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 have up to four ports 10GbE networking solution based on Intel X710-TM4 and X710- ®...
- Page 4 Super AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 Add-on Card User's Guide Conventions Used in the User's Guide Pay special attention to the following symbols for proper system installation and to prevent damage to the system or injury to yourself: Warning: Important information is given to ensure proper system installa- tion or to prevent damage to the components or injury to yourself.
- Page 5 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com...
- Page 6 Super AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 Add-on Card User's Guide Asia-Pacific Email: Sales-Asia@supermicro.com.tw (Sales Inquiries) Support@supermicro.com.tw (Technical Support) RMA@supermicro.com.tw (RMA Support) Website: www.supermicro.com.tw...
-
Page 7: Table Of Contents
Preface Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Key Features ....................1-1 Specifications ....................1-2 Available SKUs ....................1-4 Chapter 2 Hardware Components Add-On Card Image and Layout ..............2-1 Major Components ..................2-5 Ports ........................ 2-6 Connectors ...................... -
Page 8: Chapter 1 Overview
Overview Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/... -
Page 9: Specifications
Super AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 Add-on Card User's Guide Specifications General • Four 10Gbps ports: two RJ45 and two SFP+ connectors (AOC-URG4N4-i4XTS) • Intel X710-TM4 Ethernet Controller (AOC-URG4N4-i4XTS) ® • Two 10Gbps ports: two RJ45 connectors (AOC-URG4N4-i2XT) • Intel X710-AT2 Ethernet Controller (AOC-URG4N4-i2XT) ®... - Page 10 Fiber-Optic cables (with required optional SFP+ transceivers) • RJ-45 Category-6 up to 55m; Category-6A up to 100m Power Consumption • Maximum power consumption: • AOC-URG4N4-i4XTS: 14W (+75W for PCI-E if used) • AOC-URG4N4-i2XT: 13.5W (+75W for PCI-E if used) • AOC-URG4N4: (+75W for PCI-E if used)
-
Page 11: Available Skus
Super AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 Add-on Card User's Guide Operating Conditions • Operating temperature: 0°C to 55°C (32°F to 131°F) • Storage temperature: -40°C to 70°C (-40°F to 158°F) • Storage humidity: 90% non-condensing relative humidity at 35°C Supported Platforms •... -
Page 12: Chapter 2 Hardware Components
Chapter 2: Hardware Components Chapter 2 Hardware Components Add-On Card Image and Layout AOC-URG4N4-i4XTS Image BAR CODE MAC CODE JSFP1 AOC-URG4N4-i4XTS DESIGNED IN USA REV:1.02 SLOT1: PCIe Gen4 x16 JLAN1 AOC-URG4N4-i4XTS Layout... - Page 13 Super AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 Add-on Card User's Guide AOC-URG4N4-i2XT Image BAR CODE MAC CODE AOC-URG4N4-i2XT DESIGNED IN USA REV:1.02 SLOT1: PCIe Gen4 x16 JLAN1 AOC-URG4N4-i2XT Layout...
- Page 14 Chapter 2: Hardware Components AOC-URG4N4 Image BAR CODE MAC CODE AOC-URG4N4 DESIGNED IN USA REV:1.02 SLOT1: PCIe Gen4 x16 AOC-URG4N4 Layout...
- Page 15 Super AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 Add-on Card User's Guide SLIMSAS1 SLIMSAS2 SXB3_1 SXB3_2 Back of AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 Layout Note 1: For further explanation on how to connect SlimSAS cables from the card to the backplane, please refer to the section of the correspond- ing motherboard/system's user manual that details the complete system configuration.
-
Page 16: Major Components
Chapter 2: Hardware Components Major Components The following major components are installed on AOC-URG4N4-i4XTS, AOC- URG4N4-i2XT, and AOC-URG4N4: AOC-URG4N4-i4XTS_i2XT Major Components Component Name Definition Intel X710-TM4/ Ethernet LAN controllers ® Intel X710-AT2 ® JLAN1 LAN Port 1-2: Debug Disable (Default) 3-4: Debug Enable 1-2 &... -
Page 17: Ports
Super AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 Add-on Card User's Guide Ports There are four ports located on the add-on card. Connect a Direct Attach Copper Twin-Axial cable or an LC Fiber-Optic cable to the ports to provide Gigabit Ethernet communication. The RJ45 connector is for JLAN1 (LAN1 and LAN2), while the SFP+ connectors are for JSFP or JSFP+1 (LAN 3 and 4). -
Page 18: Jumpers
Chapter 2: Hardware Components Jumpers Explanation of Jumpers To modify the operation of the add-on card, a jumper can be used to choose be- tween optional settings. A jumper creates shorts between two pins to change the function of the connector. See the add-on card layouts on pages 2-1 through 2-3 for the jumper locations. -
Page 19: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 20: Before Installation
Super AOC-URG4N4-i4XTS, AOC-URG4N4-i2XT, and AOC-URG4N4 Add-on Card User's Guide Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry standard anti-static equipment (such as gloves or wrist strap) and follow the instructions listed on Page 3-1 to avoid damage caused by ESD. -
Page 21: Installing Drivers For Windows
1. Run the CDR-NIC. (If you do not have a product CD-ROM, download drivers from the Supermicro Support Website and then transfer them to your system.) 2. When the SUPERMICRO window appears, click on the computer icon next to the product model. -
Page 22: Installing Driver For Linux
Installing Driver for Linux Use the following procedures for installing AOC-URG4N4-i4XTS, AOC-URG4N4- i2XT, and AOC-URG4N4 drivers for the Linux operating system. 1. Download the driver from the Supermicro CDR-NIC LAN driver CD or ftp://ftp. supermicro.com/Networking_Drivers/CDR-NIC_1.62_for_Add-on_NIC_Cards/ Intel/LAN/PRO40GB/LINUX. Due to the continuous development of the Linux kernel, the drivers are updated more often than the bundled releases. - Page 23 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
