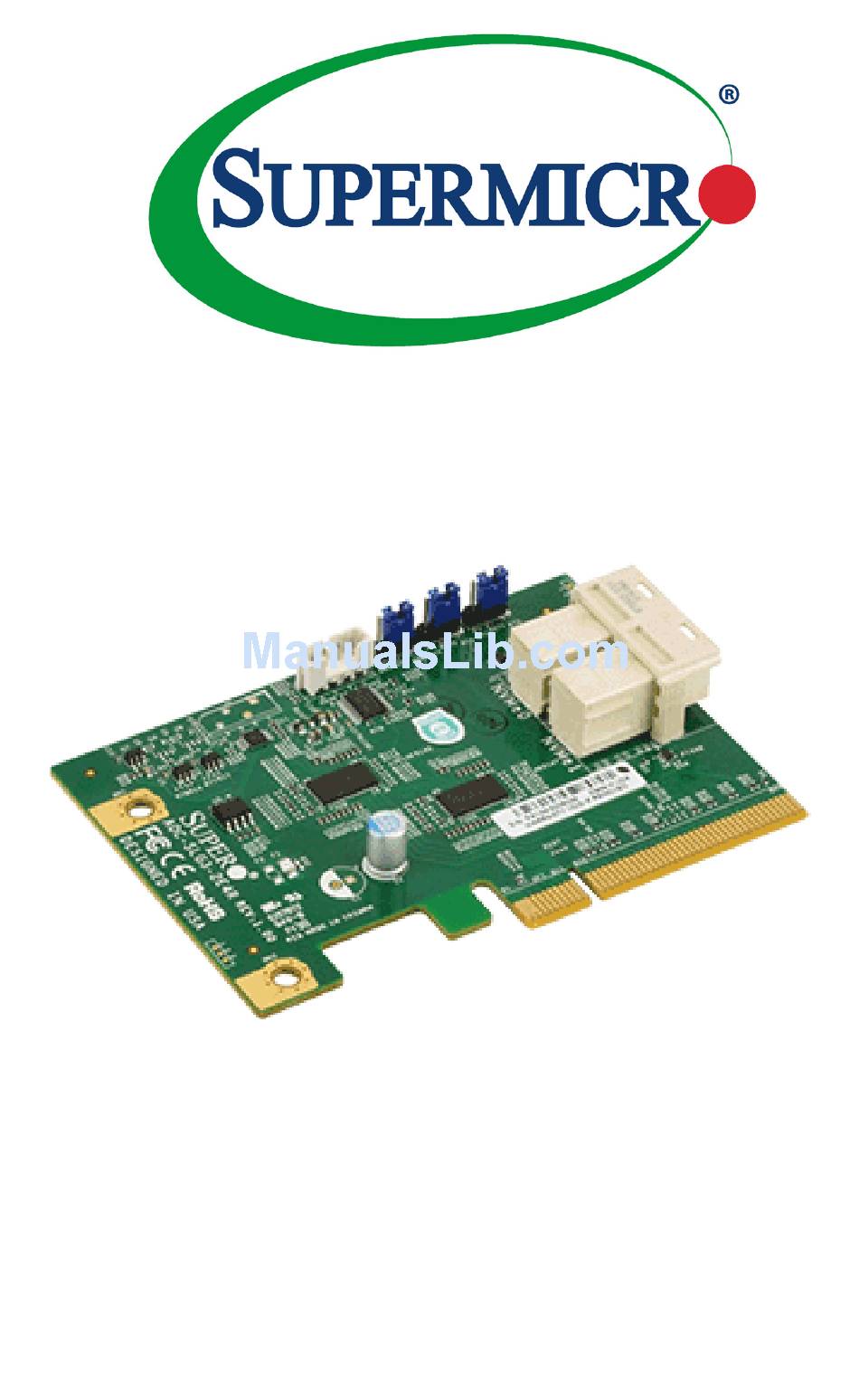

- Page 1 AOC-SLG3-2E4R User's Guide Revision 1.0b...
- Page 2 Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: Preface
The Supermicro NVMe AOC-SLG3-2E4R features two internal NVMe connectors (SFF 8643) for high-performance storage connectivity. This HBA card is built on the latest PCIe NVMe redriver technology. The AOC-SLG3-2E4R is streamlined to meet the growing demand for increased data throughput and scalability requirements across the enterprise-class server platforms. -
Page 4: Returning Merchandise For Service
You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning the AOC-SLG3-2E4R card to the manufacturer, the RMA number should be promi- nently displayed on the outside of the shipping carton, and the shipping package is mailed prepaid or hand-carried. -
Page 5: Contacting Supermicro
Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML... -
Page 6: Table Of Contents
AOC-SLG3-2E4R Expansion Card User's Guide Table of Contents Preface About this User's Guide ....................iii About this Expansion Card.................... iii An Important Note to the User ..................iii Returning Merchandise for Service ................iv Contacting Supermicro ....................v Chapter 1 Overview Overview ......................1-1 Technical Specifications .................. -
Page 7: Chapter 1 Overview
Overview Congratulations on purchasing your expansion card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please visit our website at http://www.supermicro.com/... - Page 8 AOC-SLG3-2E4R Expansion Card User's Guide Notes...
-
Page 9: Chapter 2 Hardware Components
Chapter 2 Hardware Components Expansion Card Layout and Components Figure 2-1. AOC-SLG3-2E4R The AOC-SLG3-2E4R is a low-profile expansion card with an aggregate 6.4 GB/s dual-port NVMe internal Host Bus Adapter. The following pages describe the components and settings for the AOC-SLG3-2E4R. -
Page 10: Major Components
AOC-SLG3-2E4R Expansion Card User's Guide Major Components The following are the major components that make up the AOC-SLG3-2E4R ex- pansion card: JNVI2C JP1: 1-2:FRU SMBus ADDR A0=0 2-3:FRU SMBus ADDR A0=1 JP2: 1-2:FRU SMBus ADDR A1=0 2-3:FRU SMBus ADDR A1=1... -
Page 11: Connectors And Leds
2-3:FRU SMBus ADDR A0=1 JP2: 1-2:FRU SMBus ADDR A1=0 2-3:FRU SMBus ADDR A1=1 JP3: 1-2:FRU SMBus ADDR A2=0 2-3:FRU SMBus ADDR A2=1 18 19 BAR CODE Figure 2-3. NVMe Connectors AOC-SLG3-2E4R Component Description NVMe connector, designated NVMe 0 NVMe connector, designated NVMe 1... -
Page 12: Front Jumper Location And Settings
AOC-SLG3-2E4R Expansion Card User's Guide Front Jumper Location and Settings JP1 JP2 JP3 JNVI2C JP1: 1-2:FRU SMBus ADDR A0=0 2-3:FRU SMBus ADDR A0=1 JP2: 1-2:FRU SMBus ADDR A1=0 2-3:FRU SMBus ADDR A1=1 JP3: 1-2:FRU SMBus ADDR A2=0 2-3:FRU SMBus ADDR A2=1... -
Page 13: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your expansion card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 14: Before Installation
Depending upon which motherboard is used and which slot in the motherboard is se- lected, a riser card may or may not be required to install the AOC-SLG3-2E4R. Refer to the chart below to determine the method of installation for your expansion card. - Page 15 Chapter 3: Installation Expansion Card NVMe Backplane Connector (Source) Connector (Target) SFF-8643 SFF-8643 SFF-8643 OCuLink Oculink SFF-8643 OCuLink OCuLink Figure 3-1. Cable Types 4. Using the chart above, verify that the cable provided is appropriate for the expansion card connectors and the backplane connectors. Note that the MiniSAS HD to OCuLink cables and the OCuLink to MiniSAS HD cables may physically look the same but are wired differently and may not work if the wrong cable is used.
- Page 16 6. Connect the CBL-CDAT-0674 data cable to the JNVI2C connector on the motherboard. If more than one AOC-SLG3-2E4R expansion card is used on the same CPU, then only the lowest-numbered slot expansion card needs to be connected to the motherboard's JNVI2C.
-
Page 17: Static-Sensitive Devices
Chapter 3: Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your expansion card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 18: Installing The Drivers In Windows
Refer to the instructions that came with your expansion card and follow the manu- facturer's recommended steps for installing the NVMe driver. Download the latest drivers from the Supermicro project board at ftp://ftp.supermicro.com/driver/NVMe/. Uninstalling the Drivers To Uninstall the Drivers in Windows: Follow the instructions provided by the manufacturer. - Page 19 Chapter 3: Installation Notes...
- Page 20 AOC-SLG3-2E4R Expansion Card User's Guide (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices, or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
