Mindeo MS3590 Quick Manual

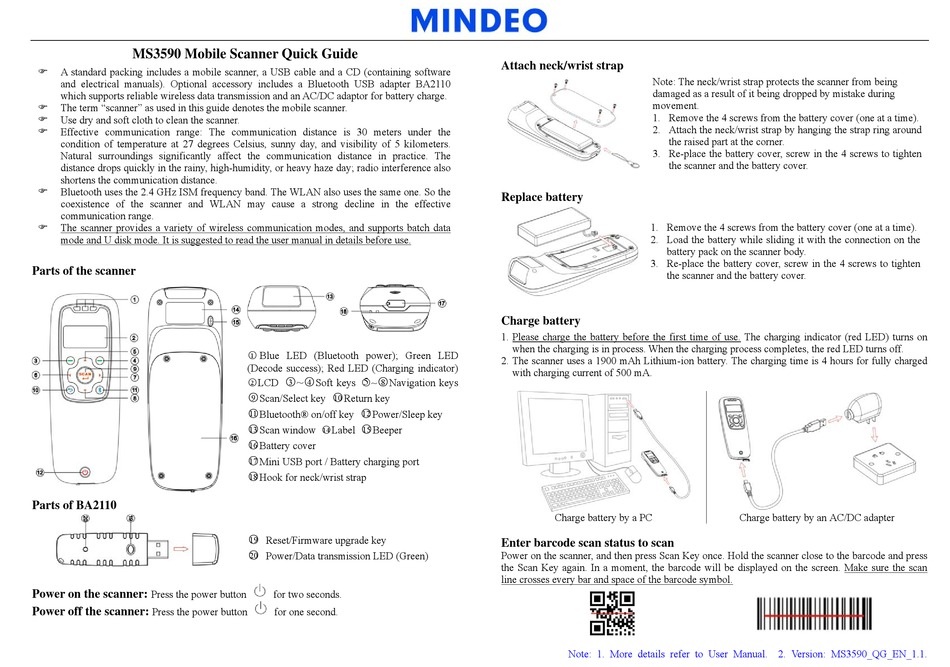

MS3590 Mobile Scanner Quick Guide
 A standard packing includes a mobile scanner, a USB cable and a CD (containing software
and electrical manuals). Optional accessory includes a Bluetooth USB adapter BA2110
which supports reliable wireless data transmission and an AC/DC adaptor for battery charge.
 The term "scanner" as used in this guide denotes the mobile scanner.
 Use dry and soft cloth to clean the scanner.
 Effective communication range: The communication distance is 30 meters under the
condition of temperature at 27 degrees Celsius, sunny day, and visibility of 5 kilometers.
Natural surroundings significantly affect the communication distance in practice. The
distance drops quickly in the rainy, high-humidity, or heavy haze day; radio interference also
shortens the communication distance.
 Bluetooth uses the 2.4 GHz ISM frequency band. The WLAN also uses the same one. So the
coexistence of the scanner and WLAN may cause a strong decline in the effective
communication range.
 The scanner provides a variety of wireless communication modes, and supports batch data
mode and U disk mode. It is suggested to read the user manual in details before use.

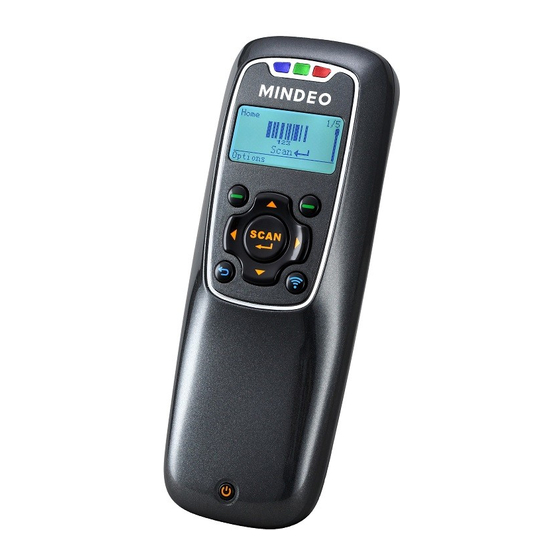

Parts of the scanner
Parts of BA2110
Press the power button
Power on the scanner:
Press the power button
Power off the scanner:
○ Blue LED (Bluetooth power); Green LED
1
(Decode success); Red LED (Charging indicator)
~○
○ Soft keys ○ 5 ~ ○
○ LCD Navigation keys
3 4 8
2
○ ○
9 Scan/Select key 10 Return key
○ ○
Bluetooth® on/off key Power/Sleep key
11 12
○ ○
Scan window ○ Label Beeper
13 15
14
○
16 Battery cover
○
Mini USB port / Battery charging port
17
○
Hook for neck/wrist strap
18
○
Reset/Firmware upgrade key
19
○
Power/Data transmission LED (Green)
20
for two seconds.
for one second.
Attach neck/wrist strap
Note: The neck/wrist strap protects the scanner from being
damaged as a result of it being dropped by mistake during
movement.
1. Remove the 4 screws from the battery cover (one at a time).
2. Attach the neck/wrist strap by hanging the strap ring around
the raised part at the corner.
3. Re-place the battery cover, screw in the 4 screws to tighten
the scanner and the battery cover.
Replace battery
1. Remove the 4 screws from the battery cover (one at a time).
2. Load the battery while sliding it with the connection on the
battery pack on the scanner body.
3. Re-place the battery cover, screw in the 4 screws to tighten
the scanner and the battery cover.
Charge battery
1. Please charge the battery before the first time of use. The charging indicator (red LED) turns on
when the charging is in process. When the charging process completes, the red LED turns off.
2. The scanner uses a 1900 mAh Lithium-ion battery. The charging time is 4 hours for fully charged
with charging current of 500 mA.
Charge battery by a PC
Enter barcode scan status to scan
Power on the scanner, and then press Scan Key once. Hold the scanner close to the barcode and press
the Scan Key again. In a moment, the barcode will be displayed on the screen. Make sure the scan
line crosses every bar and space of the barcode symbol.
Note: 1. More details refer to User Manual. 2. Version: MS3590_QG_EN_1.1.
Charge battery by an AC/DC adapter
