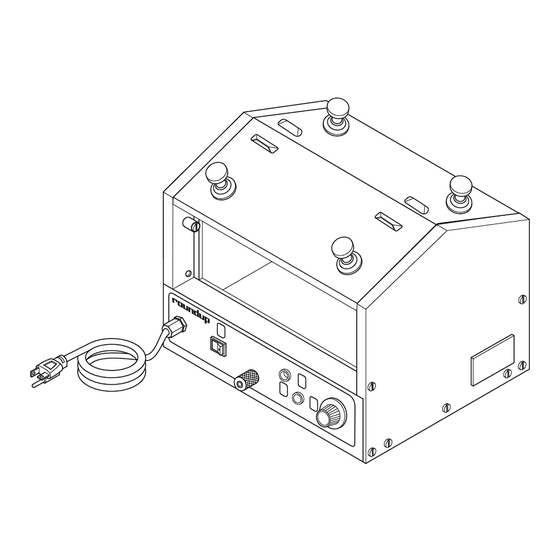

- Page 1 Hot Dog Hutch Models HDH-3, HDH-3DR, & HDH-4 owner’s manual Manufacturing Numbers: 9300100, 9300101, 9300102, 9300104, 9300106, 9300108, 9300112, 9300116, 9300118, 9300120, 9300124, 9300125, 9300130, 9300132 www.ajantunes.com P/N 1010736 Rev. H 11/15...
-
Page 2: Table Of Contents
IMPORTANT Visit www. ajantunes.com or contact the factory at 1-630-784-1000 to locate your A.J. Antunes & Co. reserves the right to nearest Authorized Service Agency. Refer change specifications and product de- to the service agency directory packaged sign without notice. Such revisions do not... -
Page 3: Important Safety Information
IMPORTANT SAFETY WARNINGS The following tips are recommended for maintenance of your stainless steel equip- INFORMATION Be advised of the following warnings when ment: operating and performing maintenance on Always use soft, damp cloth for Use the following guidelines for safe opera- this unit. -
Page 4: Specifications
SPECIFICATIONS HDH-3 15" 18 1/4" (381 cm) (464 cm) 15" (381 cm) RESET THERMOSTAT DRAIN HEATER POWER HDH-3DR 15" 18 1/4" (381 cm) (464 cm) 15" (381 cm) P/N 1010736 Rev. H 11/15... -
Page 5: Electrical Ratings
Electrical Ratings Model & Plug Volts Watts Amps Hertz Mfg. No. Description HDH-3 NEMA 5-15P, 15 Amp., 120 1000 50/60 9300100 Volt HDH-3 220-240 1000 4.2-4.5 50/60 CEE 7/7, 16 Amp., 250 Volt 9300101 HDH-3 1000 50/60 CEE 7/7, 16 Amp., 250 Volt 9300102 HDH-3 NEMA 5-15P, 15 Amp., 120... -
Page 6: Installation
NOTE: If any parts are missing or dam- aged, contact A.J. Antunes & Co. IMMEDIATELY at 1-800-392-7854 (toll free in the U.S. and Canada) or at 630-784-1000. Wash all components in soap and BULKHEAD water. -
Page 7: Operating Instructions
OPERATING For MFg. No. 9300132 INSTRUCTIONS the power cord is located on the left side of the unit. See Note on Page Remove, or slide open, the top cover. Pour 7 quarts (5.6 liters) of clean tap water into the water pan (Figure 2). There is a “FULL”... -
Page 8: Maintenance
MAINTENANCE CAUTION Chlorides or phosphates in clean- ing agents (e.g. bleach, degreasers or detergents) could cause permanent damage to stainless steel equipment. The damage is usually in the form of discoloration, dulling of metal surface finish, pits, voids, holes or cracks. This damage is permanent and NOT covered by warranty. -
Page 9: Troubleshooting
TROUBLESHOOTING WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip- ment should be performed by qualified service personnel. The unit should be unplugged when servicing. Problem Possible Cause Corrective Action Unit will not heat. Heat Indicator Light does not No power. -
Page 10: Wiring Diagram
WIRING DIAGRAM LIGHT P/N 1010736 Rev. H 11/15... - Page 11 REPLACEMENT PARTS HDH-3 INSET NOTE: Item 1 for Mfg. No. 9300132 uses a differ- ent Left Side Panel than other units contained in this manual. This al- lows the power cord for 9300132 to be located on the Left side of the unit rather than on the front of the unit.
- Page 12 REPLACEMENT PARTS Item Part No. Description Qty. Item Part No. Description Qty. Item Part No. Description Qty. 0010896 Pan Housing Assy. (HDH-3 Series) 7000882 Power Swich Replacement Kit 2100145 Knob, Cover 0700463 Power Cord, NEMA 5-15P, 120V 7000166 Guard, Finger (Incl. #24 & 25) 0012923 Pan Housing Assy.
-
Page 13: Hdh-3 Racks & Baskets
REPLACEMENT PARTS HDH-3 Racks & Baskets 1 (P/N 0501687) 1 (P/N 0506677) NOTE: These accessories are Item Part No. Description Qty. for HDH-3 models with 0501687 Support Tray (not included in 7000945) 1 Manufacturing Numbers: 0506677 Support Tray (included in 7000945) 9300100 0501749 Hot Dog Rack, Upper... -
Page 14: Hdh-3Dr Racks
REPLACEMENT PARTS HDH-3DR Racks NOTE: DR = Double Racks. NOTE: These accessories are for Item Part No. Description Qty. HDH-3DR models with 0502832 Bulkhead Manufacturing Numbers: 0501963 Hot Dog Rack, Lower 9300106 0501962 Hot Dog Rack, Upper 9300108 9300120 9300124 9300132 P/N 1010736 Rev. - Page 15 REPLACEMENT PARTS HDH-3DR (Mfg. # 9300112 ONLY) NOTE: These items are for Jumbo Hot Dogs. NOTE: These accessories are for Item Part No. Description Qty. HDH-3DR models with 0501750 Bulkhead Manufacturing Number Rack, Jumbo Dog, Lower 0502863 9300112 ONLY. Rack, Jumbo Dog, Upper 0502864 P/N 1010736 Rev.
- Page 16 REPLACEMENT PARTS HDH-3DR (Mfg. # 9300125 ONLY) NOTE: These accessories are for Item Part No. Description Qty. HDH-3DR models with 0501750 Bulkhead Manufacturing Number 0501749 Upper Hot Dog Rack (Small) 9300125 ONLY. 0501776 Lower Hot Dog Rack (Small) 0501687 Support Tray 0501962 Upper Hot Dog Rack (Large) 0501963...
- Page 17 NOTES P/N 1010736 Rev. H 11/15...
- Page 18 NOTES P/N 1010736 Rev. H 11/15...
- Page 19 NOTES P/N 1010736 Rev. H 11/15...
-
Page 20: Limited Warranty
LIMITED WARRANTY Equipment manufactured by Roundup Food Equipment Division of A.J. Antunes & Co. has been constructed of the finest materials available and manufactured to high quality standards. These units are warranted to be free from electrical and mechanical defects for a period of one (1) year from date of purchase under normal use and service, and when installed in accordance with manufacturer’s recommendations.
