Levitronix LEVIFLOW LFS-SU Series Instructions For Use page 2

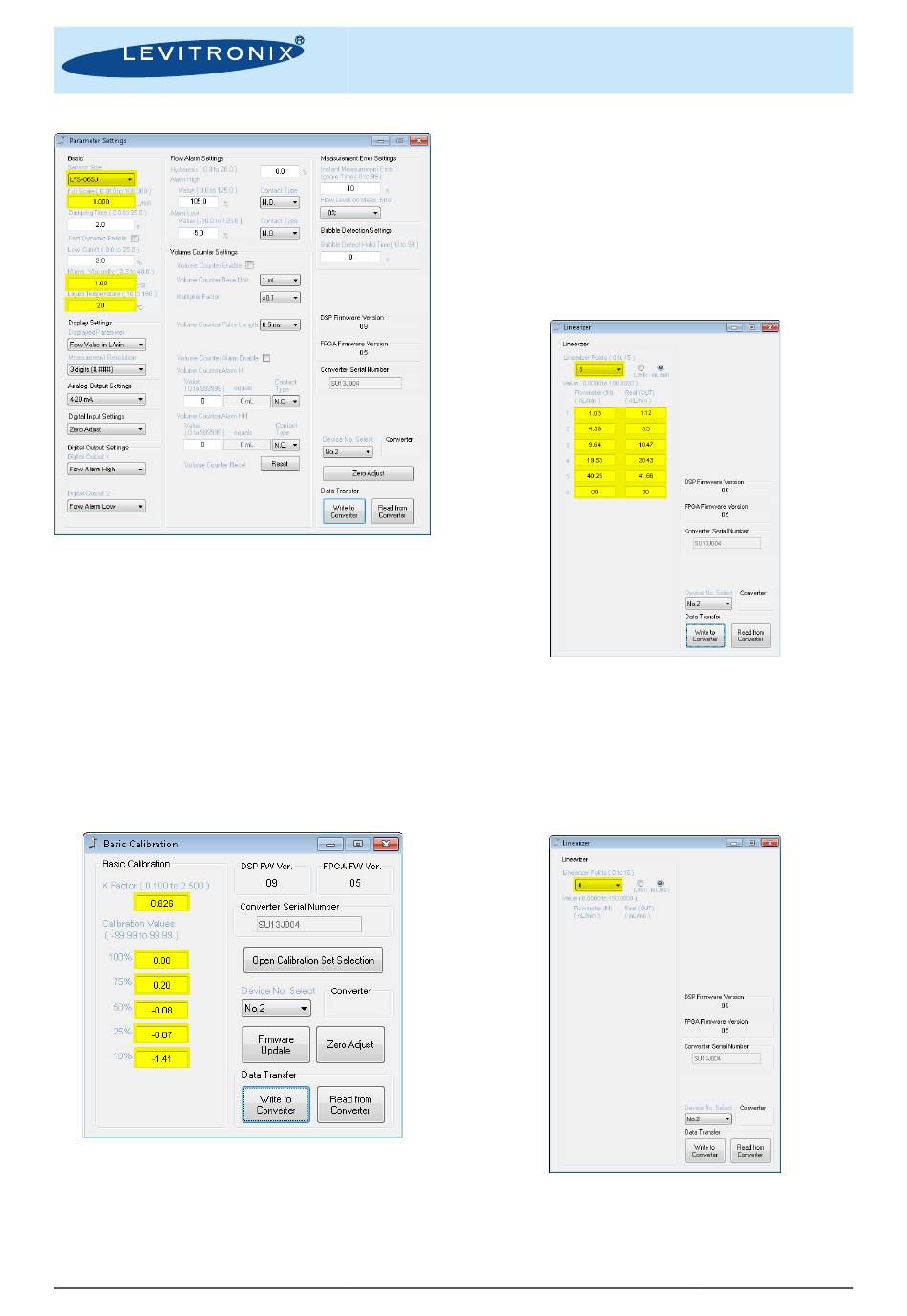

Figure 2: "Parameter Settings" menu of configuration software
(Example for LFS-06SU)
Transfer of Basic
3.3
Next step is to transfer the calibration values.
These values are available on the sensor tag or on
the calibration sheet delivered with each sensor.
Open the menu "Basic Calibration" of the
configuration software (see Figure 3). Update the
"K Factor" and the 5 "Calibration Values".
Store the settings to the converter by using the
"Write to Converter" button.
Figure 3: "Basic Calibration" menu of configuration software
PL-4509-01, Rev01, DCO# 16-191
LFC-1C-PC
Calibration Values
LFC-1C-PC
Instructions for Use of LEVIFLOW® LFS-SU Flowsensors
3.4 Transfer of Linearizer Values
In some cases (for example for the LFS-03SU)
additional linearizer values are defined to increase
accuracy. These values are available on the
backside of calibration parameter tag or on the
calibration sheet delivered with each sensor. Open
the "Linearizer" menu (see Figure 4) of the
configuration software and transfer the linearizer
values.
Figure 4: "Linearizer" menu of configuration software
(Settings for example with LFS-03SU)
If no linearizer values are defined on the backside
of the calibration parameter tag (for example for
LFS-06SU and LFS-20SU), write "0" linearizer
points to the "Linearizer Points" item (see
Figure 5).
Figure 5: "Linearizer" menu of configuration software
(Setting for no linearizer values)
Store the settings to the converter by using the
"Write to Converter" button.
www.levitronix.com
LFC-1C-PC
LFC-1C-PC
2/2
