The ABtUS AVS-320 is a user friendy projector controller switcher that can handle multi
format inputs from various sources and controls the projector at the same time.
It consolidates all the input and output signals in a regular classroom and functions as a
central controller to make the classroom more organized and easier for teachers to manage.
Since it only require a single CAT-5e/6/7 cable, installation is usually quick and simple. It
also has a useful DIP switch that allows users to choose from a list of pre-programmed
projectors so there's no need for complicated programing whenever, the user changes the
projector.
● Single CAT5e/6/7 output allows for quicker and easier installations
● Support Power over Cable (POC)
● Support up to 20m with CAT-5e and up to 50m with CAT-6A
● Supports USB (HID) , VGA and HDMI
● Works well with any monitors, projectors and interactive system
● Scan convert VGA input to HDMI
● Simple to use, no training required
● "User Programmable" with Window base Application Software
Classroom
Media Controller
Model: AVS-320

PRODUCT DESCRIPTION

PRODUCT HIGHLIGHTS

Revision 30.08.2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVS-320 and is the answer not in the manual?

Questions and answers

Anonymous
March 2, 2025

How much is it

Summary of Contents for Abtus AVS-320

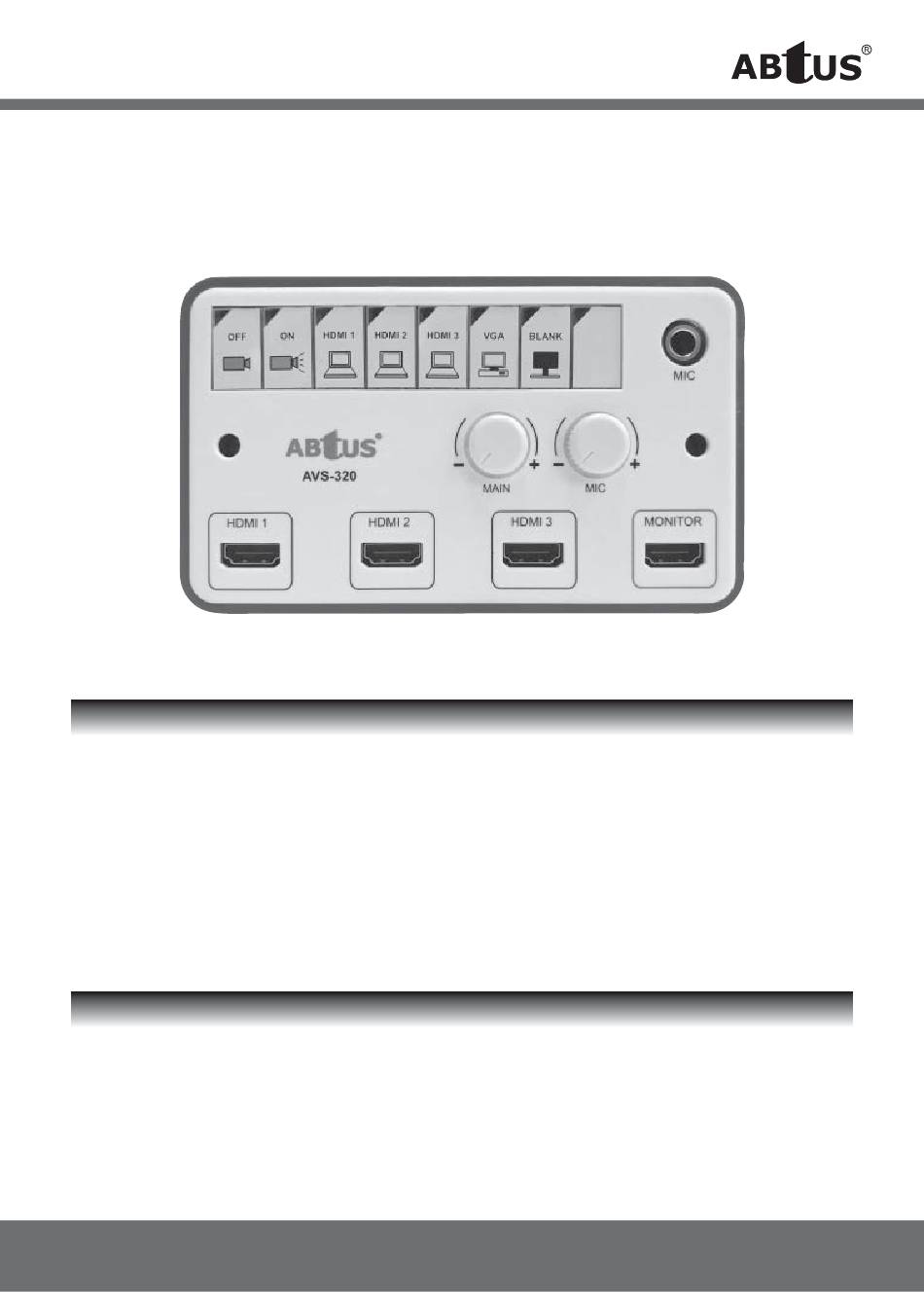

  • Page 1 Revision 30.08.2018 PRODUCT DESCRIPTION The ABtUS AVS-320 is a user friendy projector controller switcher that can handle multi format inputs from various sources and controls the projector at the same time. It consolidates all the input and output signals in a regular classroom and functions as a central controller to make the classroom more organized and easier for teachers to manage.
  • Page 2 User Operation Guide TURNING ON AND BASIC OPERATION CONTROL DC Input Connect to a 12V 1A DC Adaptor Main Audio Output Connected from “Audio In” of the HDMI-3 Multimedia Speaker System to Switch to HDMI 3 2RCA pigtail cable HDMI-2 Switch to HDMI 2 Switch to VGA HDMI-1...
  • Page 3 RECEIVER RS-232-1 HDMI OUT RS-232-2 To control projector 1 HDMI to projector / To control projector 2 display UTP/STP IN CAT-5/6/7 connection from AVS-320 *Specifi cations are subject to changes without notice.
  • Page 4 Multimedia Speaker System to projector (HID) device 2RCA pigtail cable PC-1 DIP Switch DC Power USB-A Connect to VGA 1 Switch for preloaded programing modes Connect to 12V 1A Connect to USB-A *See AVS-320 DIP switch setting table for adaptor more information...
  • Page 5 1 × RS-232 (8 Data Bit and 1 Stop Bit) Baud Rate(9600 to 115200) Parity Bit (Non, Even or Odd) DELAY TIME: Projector “ON/OFF” delay time (*in sec) 1 to 99 AVS-320 DIP switch setting table: Baud Projector Models for reference Switch 1 Switch 2...
  • Page 6 User Operation Guide SYSTEM DIAGRAM Receiver CAT-HD11R/A2 up to 20 meter using CAT-5e or up to 50m using CAT-6A...
  • Page 7 SPECIFICATION Input: 1 × VGA Input (*D-Sub 15pin) 1 × PC-Audio (*3.5mm) 1 × Mic Input (*6.3mm) 1 × USB-B 1 × USB-A 3 × HDMI Input (19 pin female with build in buffer) Output: 1 × CAT5e/6/7 output (To RX) 1 ×...
  • Page 8 ** For details and updated Command and Program Software, please visit and download from www.abtussingapore.com *Specifi cations are subject to changes without notice.
