Fractional-N Clock Synthesizer & Clock Multiplier
Features
Delta-Sigma Fractional-N Frequency Synthesis
Generates a Low Jitter 6 - 75 MHz Clock
from an 8 - 75 MHz Reference Clock
Clock Multiplier / Jitter Reduction
Generates a Low Jitter 6 - 75 MHz Clock
from a Jittery 50 Hz to 30 MHz Clock
Source
Highly Accurate PLL Multiplication Factor
Maximum Error Less Than 1 PPM in High-
Resolution Mode
One-Time Programmability
Configurable Hardware Control Pins
Configurable Auxiliary Output
Flexible Sourcing of Reference Clock
External Oscillator or Clock Source
Supports Inexpensive Local Crystal
Minimal Board Space Required
No External Analog Loop-filter
Components
Hardware Control
8 MHz to 75 MHz
Low-Jitter Timing Reference
50 Hz to 30 MHz
Frequency Reference
http://www.cirrus.com
Hardware Configuration
Output to Input
Clock Ratio
Digital PLL & Fractional
N Logic
Output to Input
Clock Ratio
Cirrus Logic Confidential
Copyright  Cirrus Logic, Inc. 2009–2015
(All Rights Reserved)

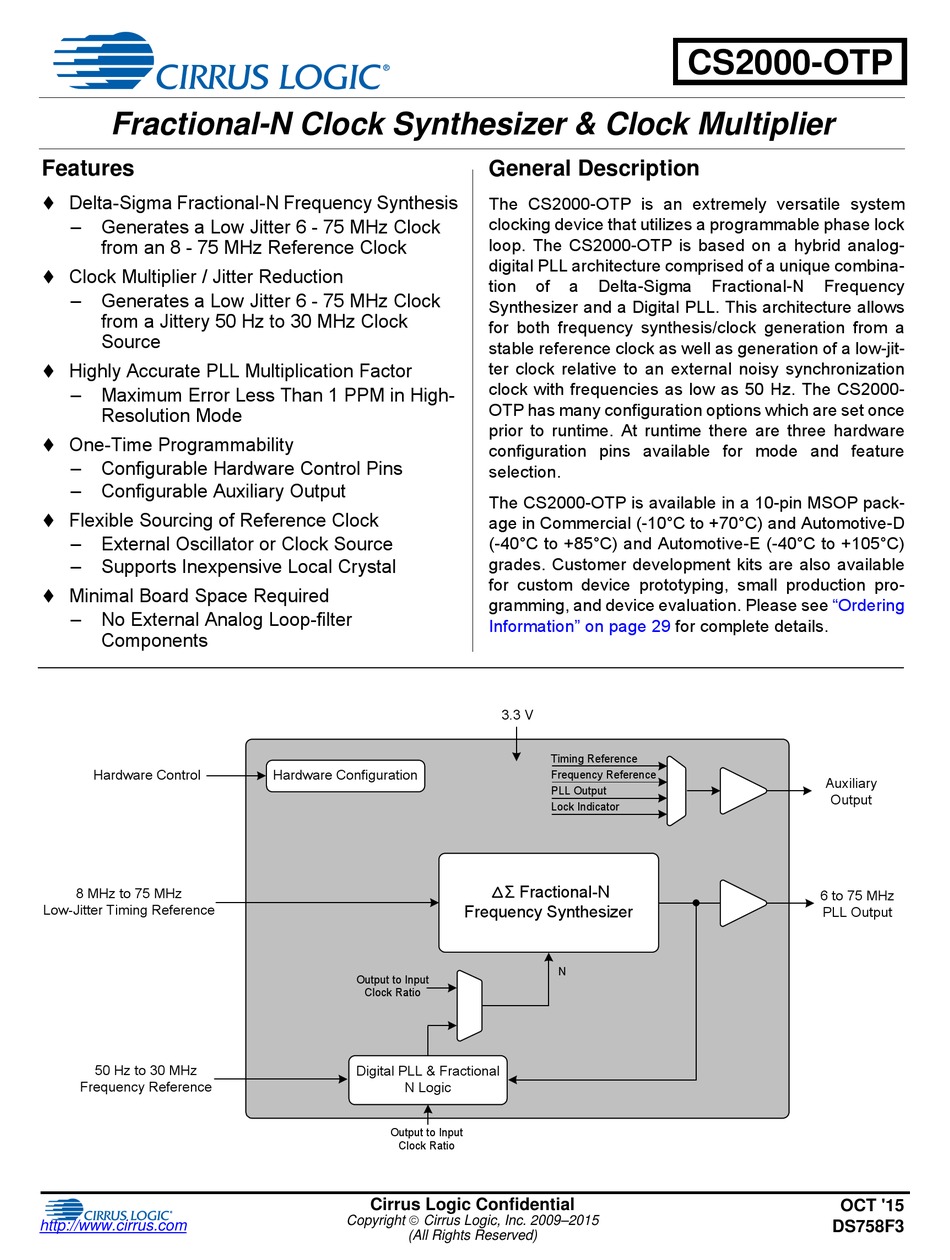

General Description

The CS2000-OTP is an extremely versatile system
clocking device that utilizes a programmable phase lock
loop. The CS2000-OTP is based on a hybrid analog-
digital PLL architecture comprised of a unique combina-
tion
of
a
Delta-Sigma
Synthesizer and a Digital PLL. This architecture allows
for both frequency synthesis/clock generation from a
stable reference clock as well as generation of a low-jit-
ter clock relative to an external noisy synchronization
clock with frequencies as low as 50 Hz. The CS2000-
OTP has many configuration options which are set once
prior to runtime. At runtime there are three hardware
configuration pins available for mode and feature
selection.
The CS2000-OTP is available in a 10-pin MSOP pack-
age in Commercial (-10°C to +70°C) and Automotive-D
(-40°C to +85°C) and Automotive-E (-40°C to +105°C)
grades. Customer development kits are also available
for custom device prototyping, small production pro-
gramming, and device evaluation. Please see
Information" on page 29
3.3 V
Timing Reference
Frequency Reference
PLL Output
Lock Indicator
Fractional-N
Frequency Synthesizer
N
CS2000-OTP
Fractional-N
Frequency
"Ordering
for complete details.
Auxiliary
Output
6 to 75 MHz
PLL Output
OCT '15
DS758F3
