X-Rite PANTONE exact Auto-Scan Setup And Operation

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Auto-Scan
Setup and Operation

Advertisement

Table of Contents
loading

Related Manuals for X-Rite PANTONE exact Auto-Scan

Summary of Contents for X-Rite PANTONE exact Auto-Scan

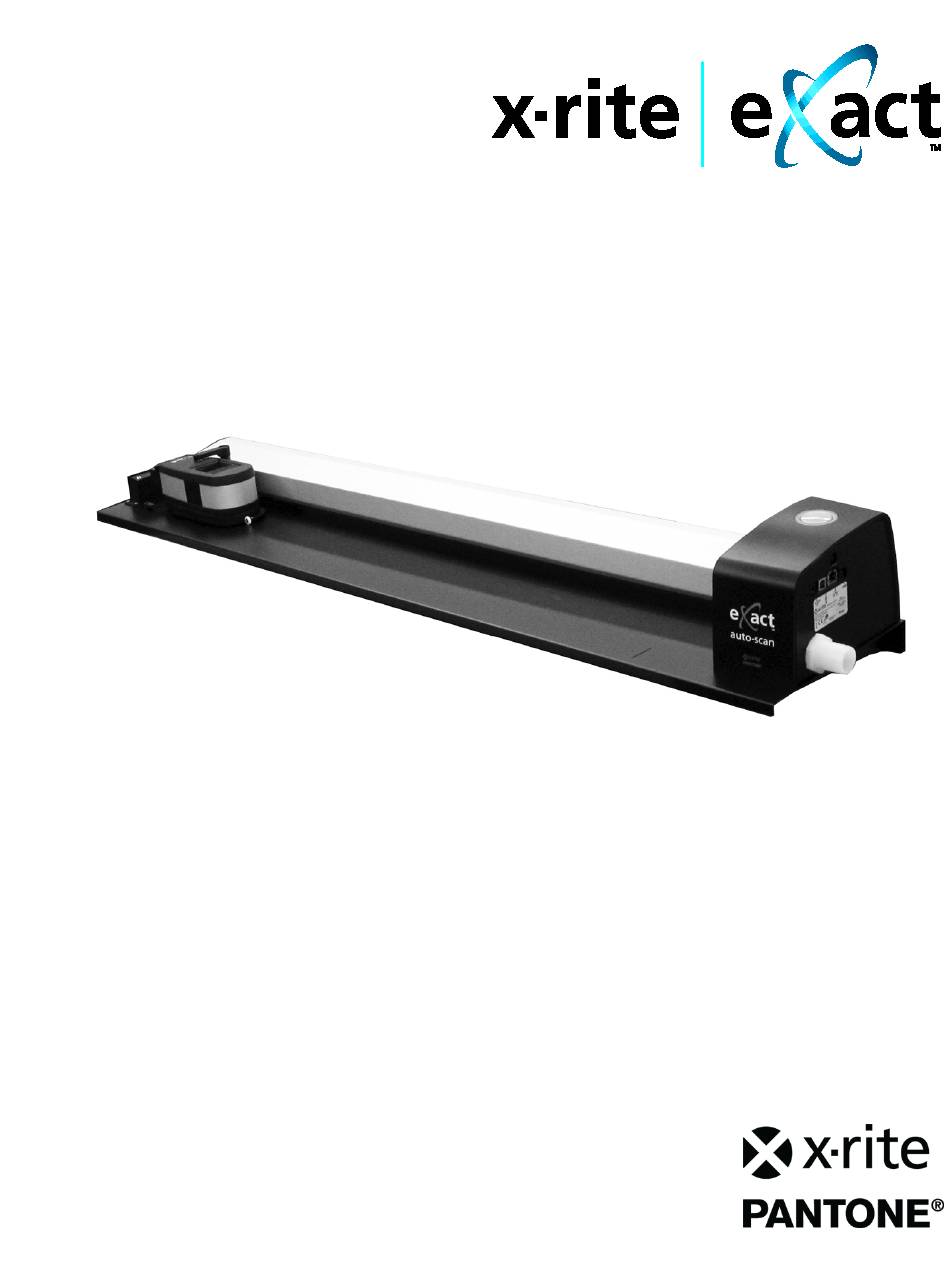

  • Page 1 Auto-Scan Setup and Operation...
  • Page 3 Industry Canada Compliance Statement CAN ICES-3 (A) / NMB-3 (A) Equipment Information Use of this equipment in a manner other than that specified by X-Rite, Incorporated may compromise design integrity and become unsafe. WARNING: This instrument is not for use in explosive environments.

  • Page 4: Warranty Information

    This product may be covered by one or more patents. Refer to the instrument for actual patent numbers. Copyright © 2019 by X-Rite, Incorporated “ALL RIGHTS RESERVED” X-Rite® is a registered trademarks of X-Rite, Incorporated. All other logos, brand names, and product names mentioned are the properties of their respective holders.

  • Page 5: Table Of Contents

    X a c t A u t o - S c a n S y s t e m IN NO EVENT WILL X-RITE BE LIABLE FOR ANY OF BUYER’S MANUFACTURING COSTS, OVERHEAD, LOST PROFITS, GOODWILL, OTHER EXPENSES OR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF ANY WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL THEORY.

  • Page 6: Overview And Setup

    e X a c t A u t o - S c a n S y s t e m Overview and Setup The eXact Auto-Scan system provides fast, press-side color control. The instrument can also be detached from the scanning trolley to allow you to take spot check measurements. Operation button and Instrument Indicator eXact charging (surrounds operation button)

  • Page 7: Unpacking And Inspection

    Your instrument was packaged in a specially designed carton to assure against damage. If shipment is necessary, the instrument should be packaged in the original carton along with all the accessories. If the original carton is not available, contact X-Rite to have a replacement shipped to you. Packaging Contents: •...

  • Page 8: Connecting The Vacuum Pump Only (Optional)

    AC wall receptacle. Note: Only use appropriately approved AC Line Cord that X-Rite provides. Any other AC Line cord can compromise the integrity of regulatory agencies approvals for this product. Please contact X-Rite for replacement of the AC Line cord suitable maintaining this products compliance.

  • Page 9: Connecting The Foot Switch And Vacuum Pump (Optional)

    AC wall receptacle. Note: Only use appropriately approved AC Line Cord that X-Rite provides. Any other AC Line cord can compromise the integrity of regulatory agencies approvals for this product. Please contact X-Rite for replacement of the AC Line cord suitable maintaining this products compliance.

  • Page 10: Installing The Exact Inkkeycontrol 2 Software (Optional)

    e X a c t A u t o - S c a n S y s t e m Installing the eXact InkKeyControl 2 Software (Optional) System Requirements 2 GHz computer processor, 3 GHz recommended • • 2 GB minimum, 4 GB recommended •...

  • Page 11: Setting Up The Exact Instrument

    e X a c t A u t o - S c a n S y s t e m Setting Up the eXact Instrument Activate the Bluetooth function on your instrument and pair it with your computer. Refer to the eXact User Guide for additional information.
  • Page 12 e X a c t A u t o - S c a n S y s t e m Move the scanning trolley (4) a few inches from the charging station (5). Position the eXact instrument over the scanning trolley (4) and lower into place. Charging station (5) Scanning trolley (4) Secure the eXact to the scanning trolley by rotating the locking arm (6) counterclockwise until it...
  • Page 13 e X a c t A u t o - S c a n S y s t e m Charging station (5)

  • Page 14: Operating The System

    e X a c t A u t o - S c a n S y s t e m Operating the System You should refer to the online help in the software application for procedures on creating and selecting color bars.

  • Page 15: Measuring A Color Bar

    e X a c t A u t o - S c a n S y s t e m For systems that do not use a vacuum pump: Position the paper stop/flat hold down magnets (4) over the sheet along the bottom edge of the track. Paper stops (3) White line (1) Flat hold down...

  • Page 16: Performing A Spot Color Measurement

    e X a c t A u t o - S c a n S y s t e m “solid orange”, indicating a scan is in progress. After the color bar is scanned, measurement results are reported to the computer monitor. You can abort a measurement by pressing the Operation button or optional Foot switch when the instrument is scanning the color bar.

  • Page 17: Calibration

    e X a c t A u t o - S c a n S y s t e m 7. When finished, flip the target window back to the scan position and reattach the instrument to the scanning trolley. Calibration IMPORTANT: The calibration plaque is dramatically affected by smudge marks and dust, and must be kept clean.

  • Page 18: Appendices

    X-Rite will repair any instrument past warranty. The customer shall pay shipping and repair cost to the authorized service center. The instrument shall be submitted in the original carton, as a complete unaltered unit along with all the supplied accessories.

  • Page 19: Cleaning The System

    e X a c t A u t o - S c a n S y s t e m Cleaning the System Your system requires very little preventative maintenance to achieve years of reliable operation. However, to protect your investment and maintain reading accuracy, a few simple-cleaning procedures should be performed from time to time.

  • Page 20: General Exact Cleaning

    e X a c t A u t o - S c a n S y s t e m General eXact Cleaning The exterior of the instrument and touch display should only be wiped clean with a cotton cloth dampened (not wet) in water or isopropyl alcohol.

  • Page 21: Laser Alignment Procedure

    e X a c t A u t o - S c a n S y s t e m Laser Alignment Procedure The laser will require alignment if the laser line is not centered on the white dash mark at the end of the scanning trolley.

  • Page 22: Exact Auto-Scan Specifications

    -20°C to +50°C Usage: Indoor only Altitude: 2000m Pollution Degree: Overvoltage: Category II Power Supply: X-Rite P/N SE30-277, 100-240VAC 50/60Hz, 12VDC @ 2.5A Vacuum Pump: X-Rite P/N: SD07-07, 115/230 VAC 60/50 HZ 3.6/1.8 AMPS Design and specifications subject to change without notice.

  • Page 23: Exact Auto-Scan Vacuum/Foot Switch Interface Wiring

    e X a c t A u t o - S c a n S y s t e m eXact Auto-Scan Vacuum/Foot Switch Interface Wiring INPUT OUTPUT The CPC1030 has a maximum current of 120mA. Name Description Output External Control Line: provides up to 120mA current sink during measurement sequence.
  • Page 24 Switzerland Phone (+41) 44 842 24 00 Fax (+41) 44 842 22 22 Asia Pacific Headquarters X-Rite Asia Pacific Limited Suite 2801, 28th Floor, AXA Tower Landmark East, 100 How Ming Street Kwun Tong, Kowloon, Hong Kong Phone (852) 2568 6283...
