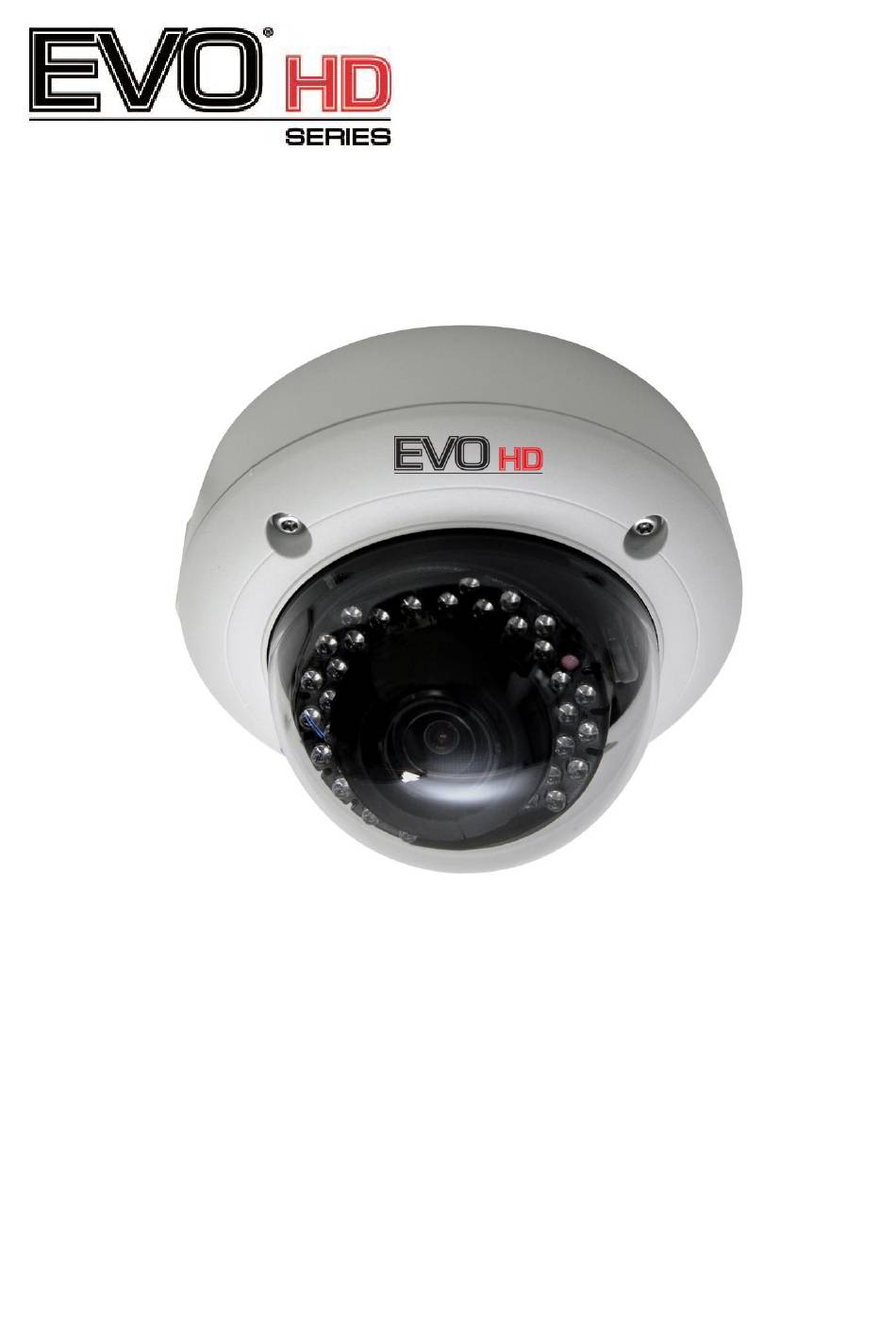

- Page 1 Installation and Operation Guide Full HD WDR Vandal-Proof Camera EVOHD-H-VDIR-WDR-MZ-2.812...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions.\ 3. Heed all warnings. 4. Follow all instructions. 5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 4 PRECAUTIONS Before installation, carefully read the manual to ensure correct operation and setup, heeding all warnings and instructions. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Ensure manual is kept in good condition for future use. Do not install the device near any heat sources such as radiators, heat registers, stoves, or other equipment(including amplifiers) that produce heat.
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ------------------------------------------------------------------------- 6 CAMERA CONNECTION -------------------------------------------------------------- 7 LENS ADJUSTMENT ------------------------------------------------------------------- 7 CONTENTS OF PACKAGE ----------------------------------------------------------- 8 INSTALLATION --------------------------------------------------------------------------- 9 STRUCTURE OF THE SETUP MENU --------------------------------------------- 11 DC AUTO IRIS LENS ------------------------------------------------------------------- 17 SPECIFICATIONS ----------------------------------------------------------------------- 18 EXTERNAL DIMENSION ------------------------------------------------------------ 19... -
Page 6: Introduction
INSTRUCTION The 1/2.8” 2.1M Full HD CMOS camera, especially for closed circuit television CCTV and security surveillance application. Features: • High performance SONY 1/2.8” 2.1M STARVIS CMOS • Min. illumination 0.03 lux(Color), 0 lux(BW, IR LED ON) • Auto electronic shutter [1/30(1/25) ~ 1/30,000] and manual electronic shutter modes •... -
Page 7: Camera Connection
CAMERA CONNECTION ① Lens : Allows a wide area to be monitored. ② Power : 24V AC/ 12V DC power source from a DC 12V or AC 24V±1 0%, 60/50Hz±1Hz Use Certified/Listed Class 2 power source only. DC 12V Type => DC 12V±10% (12VDC is polarity dependant) *If using DC 12V power adaptor, use power supply capable of supplying 8 Watts. -
Page 8: Contents Of Package
CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment. The content of the package includes: 1. -
Page 9: Installation
INSTALLATION 1. Make mounting holes and cable hole in the place (ceiling or wall) to which this dome camera is installed using the Drilling guide label ９... - Page 10 INSTALLATION 2. To remove dome cover, turn the dome body counterclockwise until locators reach end of travel and pull off. Push the liner on the sides where the patterns are put in the teeth of a comb and pull it out 3.
-
Page 11: Structure Of The Setup Menu
STRUCTURE OF THE SETUP MENU <MENU> FOCUS SETUP EXPOSURE <FOCUS SETUP> <EXPOSURE> BACKLIGHT DAY&NIGHT AF MODE IRIS SCANNING BRIGHTNESS ONPUSHAF SHUTTER IMAGE SYNC TDN SENS-UP SYSTEM INITIAL EXIT RETURN RETURN <BACKLIGHT> <DAY&NIGHT> <AWB> EXTERN AUTO AUTO AUTOext COLOR PRESET B&W MANUAL <IMAGE>... - Page 12 FOCUS SETUP The FOCUS SETUP menu provides the ability to adjust the AF MODE, SCANNING, ONEPUSHAF, SYCN TDN and INIT functions of the camera. 1) AF MODE Auto, Manual. 2) SCANNING Select the range of focusing during Auto mode. ▶ HALF, FULL 3) ONEPUSHAF Will focus the Camera.
- Page 13 <EXPOSURE> Mode MAIN MENU SHUTTER EXPOSURE FOCUS SETUP MODE INDOOR EXPOSURE IRIS RETURN ▶ BACKLIGHT BRIGHTNESS ┃-----┃ DAY&NIGHT SHUTTER EXTERN AUTO AUTO SENS-UP ┃-----┃ IMAGE RETURN SYSTEM EXIT BACKLIGHT The BACKLIGHT menu is used to the ability to prevent back lighting from the image. 1)HLC Mask the high light zone with specific color &...
- Page 14 DAY&NIGHT The DAY&NIGHT menu is used to configure the day and night related. setting for the camera. 1) EXTERN Adjust levels of Anti-Saturation ▶ 0 - 20 ANTI-SAT. EXTERN SW Adjust levels of External sensor ▶ LOW, HIGH Adjust levels of transition ▶ 0 - 20 D>N THRES Adjust levels of transition ▶...
- Page 15 1)AUTO Automatically adjust indoor color temperature. 2)AUTOext Automatically adjust outdoor color temperature. 3)PRESET Automatically readjust only by pressing. 4)MANUAL Manual mode. User can change Color Temp. Red and Blue gain value manually. C-TEMP 3000°K, 5000°K, 8000°K R-GAIN 0 ~ 20 B-GAIN 0 ~ 20 <WHITE BALANCE>...
- Page 16 Select the privacy zone horizontal size ▶ 0 - 60 H-SIZE Select the privacy zone vertical size ▶ 0 - 34 V-SIZE Select the privacy zone darkness ▶ 0 - 20 Y LEVEL Select the privacy zone blue color ▶ 0 - 20 CB LEVEL Select the privacy zone red color ▶...
-
Page 17: Dc Auto Iris Lens
MAIN OUTPUT ▶ ANALOG HD, ANALOG OUT ▶ TVI, HD-A ANALOG HD ANALOG OUT ▶ CVBS Adjust the Y gain ▶ 0 ~ 255 Y GAIN Adjust the CB gain ▶ 0 ~ 255 CB GAIN Adjust the CR gain ▶ 0 ~ 255 CR GAIN Adjust the position ▶... -
Page 18: Specifications
SPECIFICATION 2M HD-Hybrid Vandal-Proof CAMERA MODEL Power Source AC24V ± 10% / DC12V ± 10% Power Power Consumption Max 7.2 Watts (600mA) Image Sensor 1/2.8" 2.1M Sony CMOS Total Pixels 1945(H) x 1109(V) Active Pixels 1937(H) x 1097(V) Scanning System 16:9 Progressive Sync. -
Page 19: External Dimension
One Shot AF Enter SYNC TDN OFF / ON Lens Initialize Enter EXIT EXIT (Auto Save) Power input Terminal Block Video output BNC 1 Connector (TVI/HD-A) / BNC 2 Connector (CVBS) Transmission Distance Over 500m via 5C-2V coaxial cable Lens mount Fixed mount Connector &... - Page 20 Proudly distributed by Visit http://www.hills.com.au / branches to find your nearest Hills office, or contact us to “1300 HILLS 1 (1300-44-55-71)” for more information. 50304323A ２０...
