Important:
Only start installation when you receive all the accessories.
If there is missing any parts, please stop installation immediately and contact your vendor right away for the
replacement.

2. DIP Switch Setting on Control Module

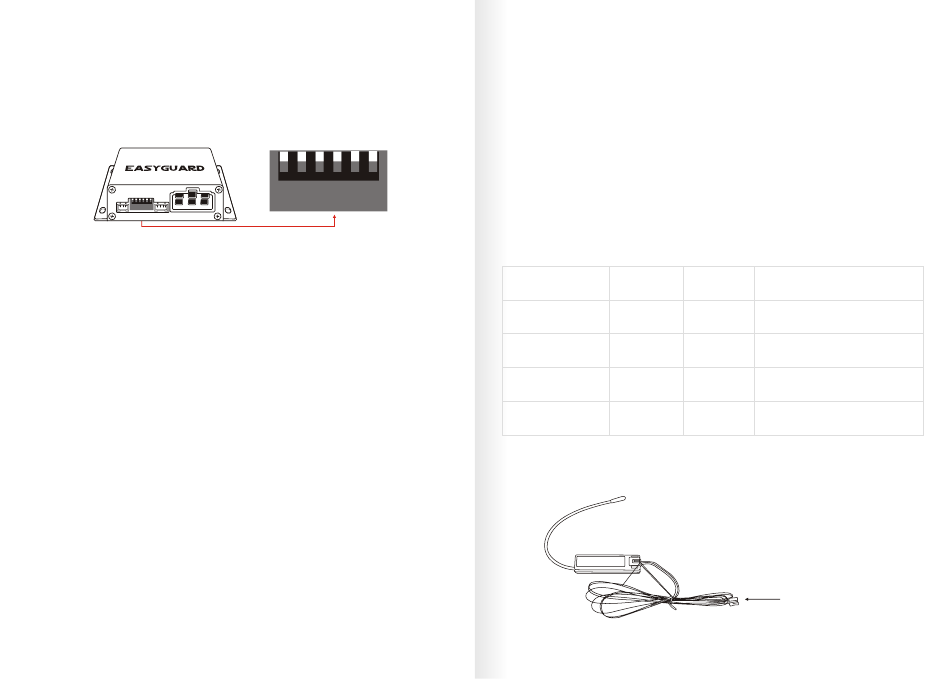

Please set the DIP switch on the control module to fit for your vehicle. See DIP switch as below picture:
1 2 3 4 5 6
DIP
ON$
There are 6 DIP switches on the control module and each DIP switch function as below:
Switch 1: When press up is with locking output pulse signal once, when press down is with locking output
pulse signal twice. If your central door require once pulse locking signal, please press it up; if your central
door require twice locking pulse signal, please press it down.
Switch 2: When press up is turn off time delay of the door, When press down is turn on time delay of the door .
Switch 3: When press up is with unlock output pulse signal once, when press down is with unlocking output
pulse signal twice. If your central door require once unlocking pulse signal, please press it up; if your central
door require twice unlocking pulse signal, please press it down.
Switch 4: When press up is turn off anti-hijacking function and when press down is turn on anti-hijacking
function. Default is turn on the anti-hijacking function.
Switch 5: When press up is for manual transmission car and when press down is for automatic transmission
car. If your car is manual transmission, please press this switch up; if your car is automatic transmission car,
please press down this switch.
Switch 6: When press up is for turn off return current and when press down is turn on return current
Notes: For Switch 6 default is press up. For some vehicles, need to turn the key to ON position first then the
foot brake is with electricity when stepping on it. For such kind of vehicles, need to press down switch 6. The
switch 6 press down is mainly for some Volkswagen cars usage.
IMPORTANT:
1.We recommend you to set the DIP switch before you making wire connection.
2.If the alarm control module already connect with 6 pin wire harness and you want to re-set the DIP
switches, please follow with below instructions:
a.Un-plug the 6 pin ignition wire harness to cut off power of the device
b.Press down or up the DIP switch you want to re-set
c.Re-plug the 6 pin ignition wire harness to re-power the device
-03-
© EASYGUARD Electronics. All right reserved.
1 2 3 4 5 6
DIP
ON$

3.Deciding on components locations

Control module
Some things to remember about where to mount the control module:
Never put the control module in the engine compartment!
The first step in hot-wiring a vehicle is removing the driver's side under-dash panel to access the starter and
ignition wires. If the control module is placed just behind the driver's side dash it can easily be disconnected.
When mounting the control module, try to find a secure location that will not require you to extend the
harnesses' wires. Keep it away from the heater core (or any other heat sources) and any obvious leaks.
Some good control module locations are: Above the glove box, inside the center console, above the under-
dash fuse box, or above the radio.
Antenna & touch password keypad introduction
There are 3 antennas in the kit. Among them, one is alarm high frequency antennas and 2 are PKE antennas.
Here are some information of them respectively:
Connector size
Name
& color
Red, 3pin
High frequency antenna
Black,3 pin
PKE antenna (2.9m)
PKE antenna(5.0 m)
Black, 3pin
Black, 4pin
Touch password key pad
High frequency antenna:
The high frequency antenna is with red color connector (3pin)
Recommend mount position
Wire length (in)
P1(A pillar near the cab) or
47.24
P2(under the steering wheel) position
Inside upper middle front
114.17
windshield( P3 position)
Inside upper left of rear
196.85
windshield( P4 position)
Inside of front windshield
78.74
( P5 position)
Red connector 3pin
(
)
© EASYGUARD Electronics. All right reserved.
-04-
