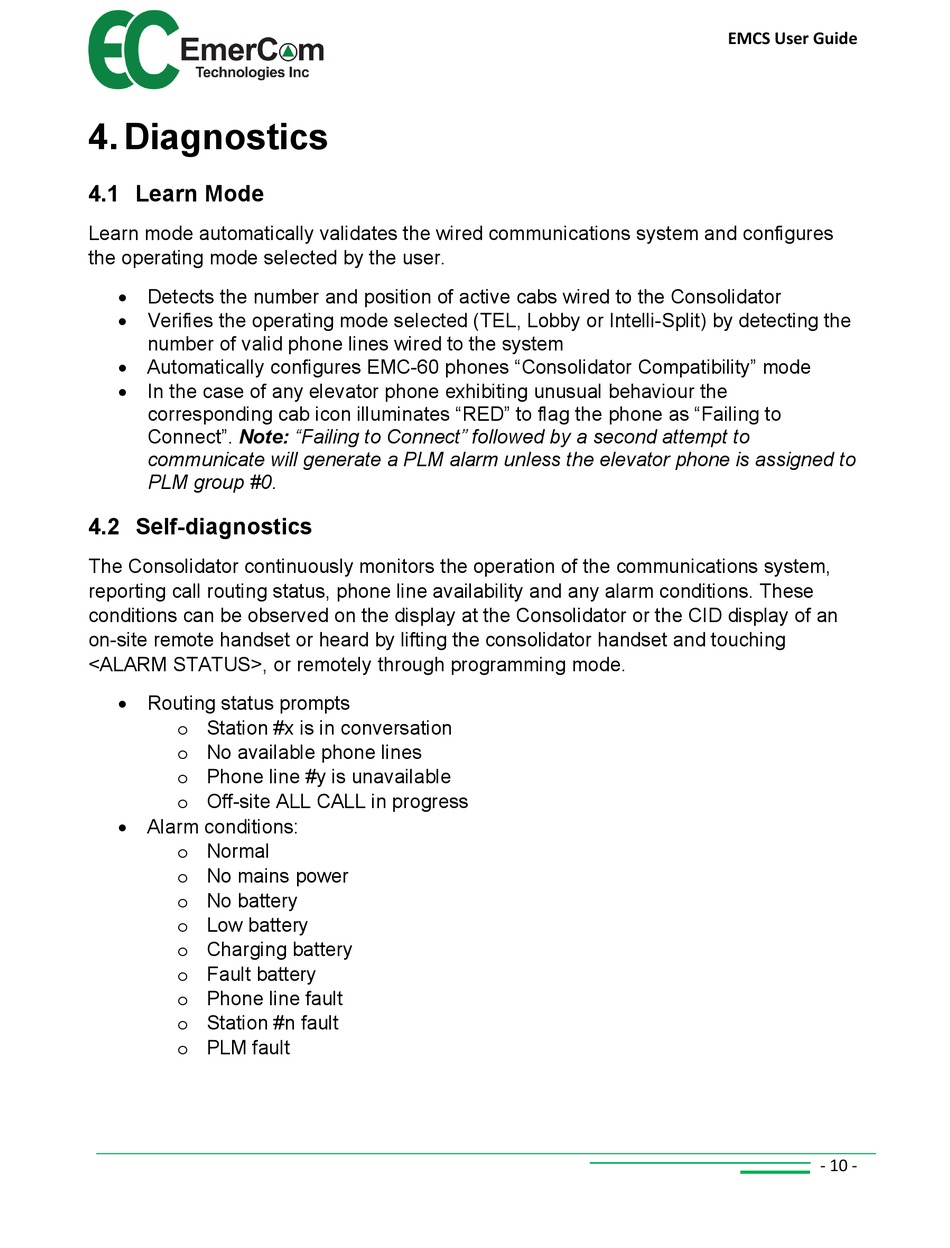

4. Diagnostics

4.1 Learn Mode

Learn mode automatically validates the wired communications system and configures
the operating mode selected by the user.
 Detects the number and position of active cabs wired to the Consolidator
 Verifies the operating mode selected (TEL, Lobby or Intelli-Split) by detecting the
number of valid phone lines wired to the system
 Automatically configures EMC-60 phones "Consolidator Compatibility" mode
 In the case of any elevator phone exhibiting unusual behaviour the
corresponding cab icon illuminates "RED" to flag the phone as "Failing to
Connect". Note: "Failing to Connect" followed by a second attempt to
communicate will generate a PLM alarm unless the elevator phone is assigned to
PLM group #0.

4.2 Self-diagnostics

The Consolidator continuously monitors the operation of the communications system,
reporting call routing status, phone line availability and any alarm conditions. These
conditions can be observed on the display at the Consolidator or the CID display of an
on-site remote handset or heard by lifting the consolidator handset and touching
<ALARM STATUS>, or remotely through programming mode.
 Routing status prompts
o Station #x is in conversation
o No available phone lines
o Phone line #y is unavailable
o Off-site ALL CALL in progress
 Alarm conditions:
o Normal
o No mains power
o No battery
o Low battery
o Charging battery
o Fault battery
o Phone line fault
o Station #n fault
o PLM fault
