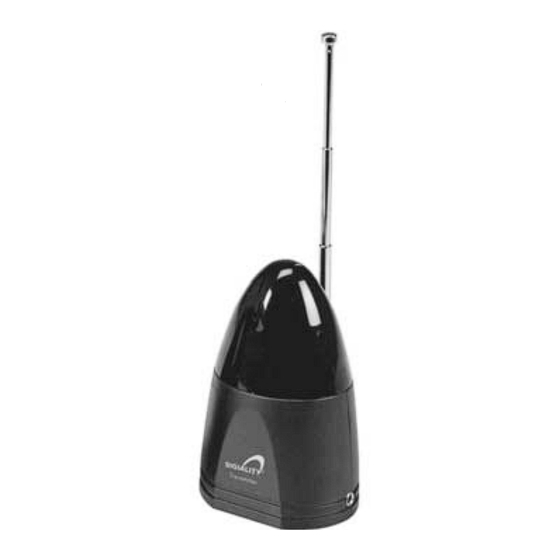

- Page 1 REMOTE CONTROL EXTENDER OWNERS MANUAL Made in China...
-
Page 2: Location Of Controls
LOCATION OF CONTROLS Transmitter Side Receiver Side IR Probe DC Power DC Power Transmitter and Infrared Remote Receiver Front Control Antenna Remote Control Indicators & IR Transmitter/Receiver Accessories DC 12 V AC 220V or 240V Infrared Extender X 1 Adaptor x2... -
Page 3: Important Safety Precautions
CAUTION: This equipment has been tested and found to comply with CE regulation. These regulations are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with this manual, may cause harmful interference to radio communications. -
Page 4: Product Description
Virtually any where within your home. Unlike ordinary remote controls which are only effective in close Range," line of sight" use, The IR-200 uses a radio frequency enabling it to operate through walls, doors, around corners, etc. Applications... -
Page 5: Application Diagram
APPLICATION DIAGRAM 1. Stereo system with remote control: IR Signal RF Signal IR-200 Receiver Wire to Extension Speaker Probe Stereo Wall IR Remote Control IR-200 Transmitter 2. DSS / Satellite Receiver with remote control: 2nd TV DSS or Satellite Wall... - Page 6 Installation & Operation Guide Receiver Picture 1 Picture 2 Working with extender probe Antenna Power Adaptor (Using IR ) Make sure the IR probe is pointing toward Keep Vertical IR sensor receiving Window with proper position (about within 1M and working angles 15°).
- Page 7 Transmitter Picture 6 Picture 5 Working Angle not Antenna +/- 15° more than Power Adaptor Keep Vertical Remote Control Picture 7 Antenna 5.7M Distance Not less than 0.3M and no more than 6M Working Angle not more than +/- 15°...
-
Page 8: Care And Maintenance
Care and Maintenance ‧ Keep the IR-200 Remote Extender dry. If it gets wet, wipe it dry immediately. ‧ Use and store the IR-200 only in normal temperature environments. Extreme temperature can shorten the life of electronic devices ‧ Handle the IR-200 gently and carefully. Dropping it can damage the circuit board and can cause it to work improperly.
