Summary of Contents for IFM Efector 250 O2M113

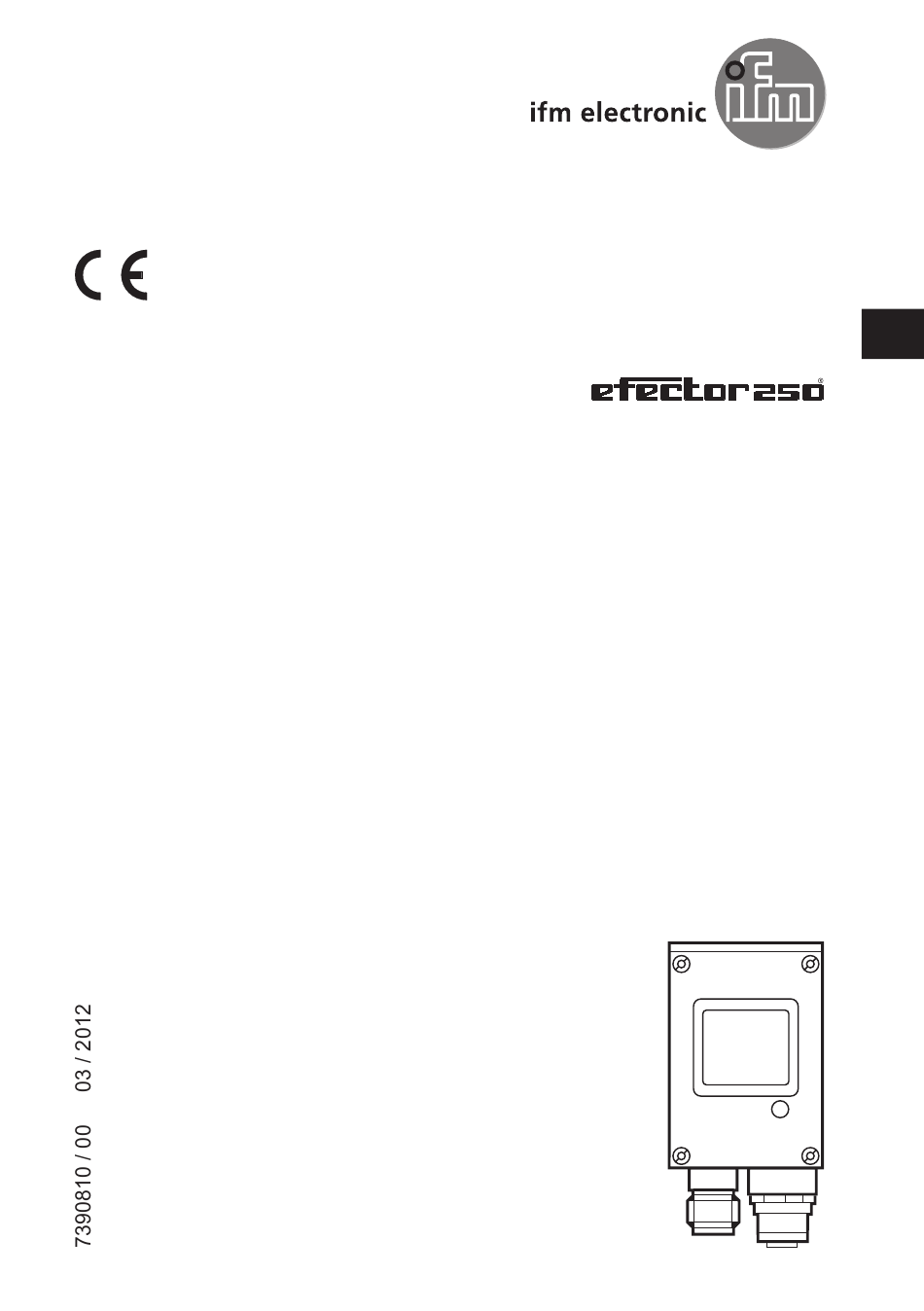

  • Page 1 Device manual Ethernet camera for mobile applications O2M113...
  • Page 2: Table Of Contents

    This unit contains (maybe modified) Open Source software, which is subject to special licensing terms . For copyright information and licensing terms please refer to: www .ifm .com/int/GNU For software subject to the GNU General Public License or the GNU Lesser General Public License the...
  • Page 3: Preliminary Note

    Ethernet camera O2M113 1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference . Information Supplementary note 1.2 Warning signs used WARNING Warning of serious personal injury .
  • Page 4: Safety Instructions

    SELV voltage of which is not grounded . The connection terminals may only be supplied with the signals indicated in the technical data and/or on the device label and only the approved accessories of ifm electronic gmbh may be connected .
  • Page 5: Functions And Features

    Shaft, straight Ø 14 mm, length 130 mm, M12 E20939 Shaft, angled Ø 14 mm, length 200 mm, M12 E20941 You can find more information about the available accessories at: → Data sheet direct → e.g. E2D110 www .ifm .com...
  • Page 6: Mounting Dimensions

    Ethernet camera O2M113 4.2 Mounting dimensions Mounting is done using two M4 x L screws . Mounting dimensions of the camera → 8 Technical data (data sheet). 4.3 Mounting location ► Mount the camera in front of or above the area to be monitored . The size of the area to be monitored depends on the operating distance: x 1,8 x 3,7...
  • Page 7: Electrical Connection

    Ethernet RxD - For information about available connectors please go to: → Products → Accessories → Connection technology → Selector www .ifm .com The supply voltage is electrically separated from the housing . 5.1.1 Ethernet connection ► Use a shielded CAT5 cable .
  • Page 8: Pc / Notebook

    Ethernet camera O2M113 5.2 PC / notebook Connection to a PC or to a notebook may be necessary for service purposes (e .g . setting of the IP address) . Ethernet interface 8-pole RJ45 connector TxD + Pair 1 TxD – "...
  • Page 9: Connection Without Hub / Switch

    RxD – Cross link cable (example) Art. no. Ethernet connection cable, 2 m E11898 M12 connector (4 poles, D coded) - RJ45 (8 poles) For further information about the connector go to: → Data sheet direct: → E11898 www .ifm .com...
  • Page 10: Connection With Hub / Switch

    Ethernet camera O2M113 5.4 Connection with hub / switch ► Use a patch cable . Display Ethernet Cameras Hub / Switch patch cable (1:1) patch cables (1:1) Connection principle with hub / switch Several cameras at one display Patch cable = uncrossed cable = 1:1 wiring = straight-through cable = point- to-point Patch cable principle patch cable (1:1)
  • Page 11: Operation Display

    Ethernet camera O2M113 6 Operation display LED green (1) Status Description supply voltage ok camera ready for operation no supply voltage power supply interrupted Operation display O2M113...
  • Page 12: Set-Up

    Ethernet camera O2M113 7 Set-up 7.1 IP addresses The address ranges of all network participants must be identical . This range of the IP address is also called Net ID . Network participant Address range (Net ID) Host ID Ethernet camera * Display (example) 192 .168 .82 PC / notebook (example)
  • Page 13 Ethernet camera O2M113 Subnet mask: 255 .255 .255 .0 Gateway IP address: 192 .168 .82 .15 Speed and duplex: automatically (auto negotiation) The settings of the LAN connection and the configuration of the network adapter can be found at: Start → Control → Network Connections → LAN connection. ►...
  • Page 14 Ethernet camera O2M113 ► Enter the new address in the field [IP address] and click on [Submit] to send it to the camera . http://192 .168 .82 .15/ 192 .168 .82 .16 192 .168 .82 .201 O2M1xx IP configuration The factory settings in [Netmask], [Gateway] and [Force Ethernet Speed] can be adopted .
  • Page 15 Ethernet camera O2M113 > A confirmation appears if the address was successfully written to the flash memory of the camera . http://192 .168 .82 .15/ 192 .168 .82 .16 192 .168 .82 .201 Confirmation of the address change...
  • Page 16 Ethernet camera O2M113 > An error message appears if you have tried to send an invalid address to the camera . http://192 .168 .82 .15/ 192 .168 .2 .16 192 .168 .82 .201 Error message in case of invalid IP address (e .g . wrong address range) ►...
  • Page 17: Checking The Ip Address

    Ethernet camera O2M113 7.2.1 Checking the IP address An inadvertent, wrong address allocation makes subsequent communication with the camera impossible . For this reason, the following final test must be carried out . ► Click on [Reboot] . ► Enter the new IP address of the camera in the address line of the browser and confirm with [Enter] (here e .g .: http://192 .168 .82 .16/) .
  • Page 18: Technical Data

    2: not connected 2: RD+ 3: 0 V 3: TD- 4: not connected 4: RD- ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice. O2M110 / page 1 05.03.2010...
  • Page 19: Maintenance, Repair And Disposal

    Ethernet camera O2M113 9 Maintenance, repair and disposal Keep the lens window of the camera free from soiling . Soiling may considerably affect the image quality! ► To clean the lens window, do not use any detergents or solvents which might damage the front glass .
