Summary of Contents for Santint S5

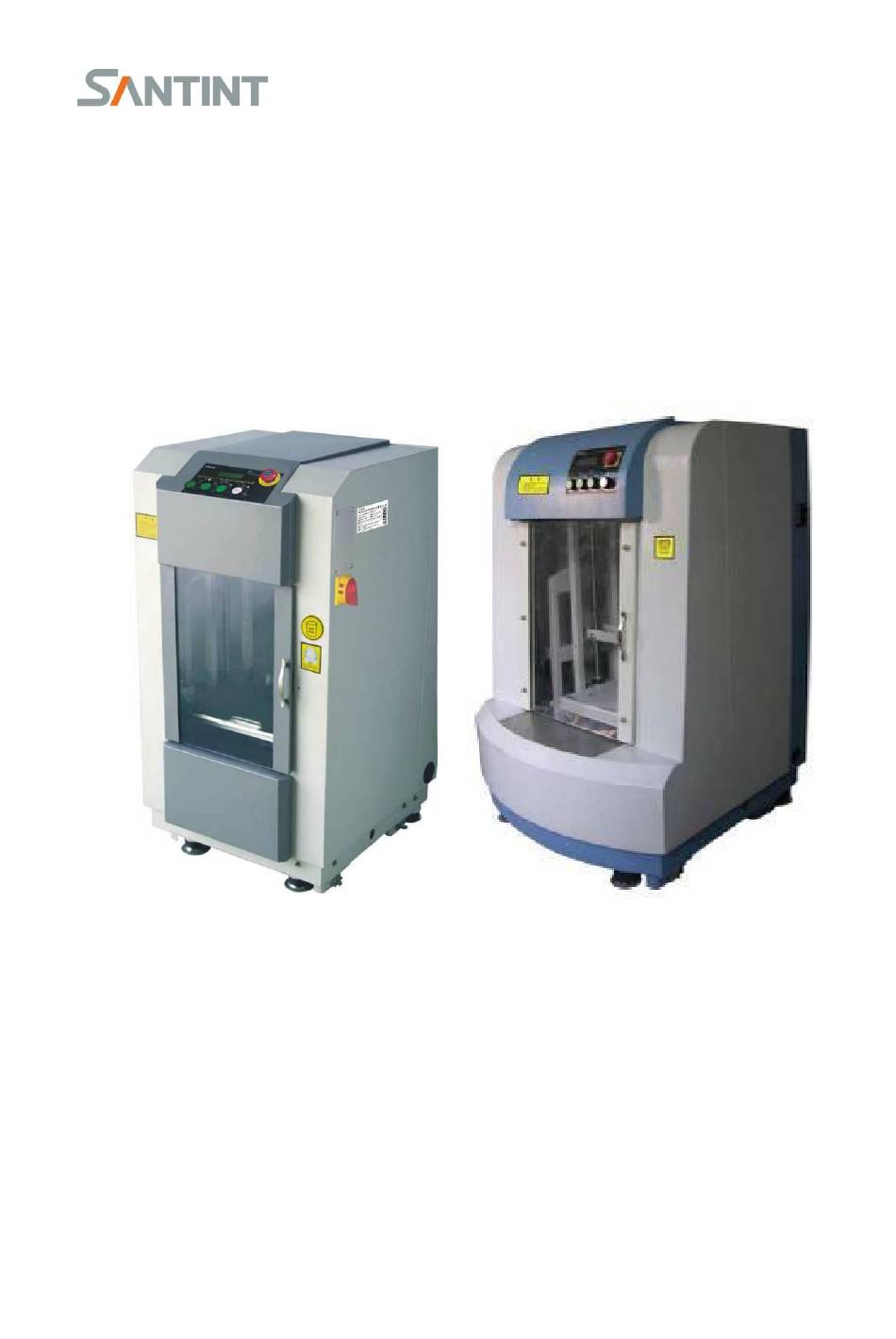

- Page 1 Automatic Vibrational Shaker User Manual Please read the manual carefully before operation.
- Page 2 Disclaimer No part of this book shall be reproduced, stored in retrieval, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise without written permission of ZHENGZHOU SANHUA TECHNOLOGY & INDUSTRY CO., LTD. While every precaution has been taken in the preparation of this book, the publisher assumes no responsibility for errors or omissions.
-
Page 3: Table Of Contents
Contents 1. Cautions and instructions…………………………………………………………1 2. Components of the equipment……………………………………………………2 3. Technical features and parameters………………………………………………4 4. Equipment installation……………………………………………………………5 5. Preparations before use……………………………………………………………5 6. Operation and use………………………………………………………………..6 7. Maintenance of the equipment……………………………………………………8 8. Troubleshooting……………………………………………………………………9 9. Nameplate.………………………………………………………………...11 10. Circuit diagram…………………………………………………………………12... -
Page 4: Cautions And Instructions
8) The equipment is forbidden working in the inflammable and explosive conditions. 9) The noise of the blending is tested, 1.6 meter from the front, back, left, right, above, the A weighting sound power level is less than 75 dB (A). (see figure 1.1) Fig. 1.1 Santint Automatic Shaker V1.0... -
Page 5: Components Of The Equipment

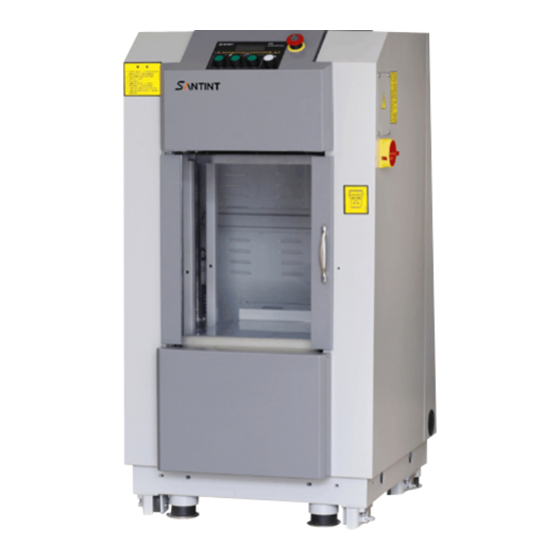

68-74dB(A) with the forklift with care, and place on the right position. 14）It is forbidden to shake inflammable substances and explosives. 2. Components of the equipment S5 is shown in Fig. 2.1 : Main Power Switch Control Panel Front Warning... - Page 6 Shaking such cans entirely at the user’s own risk. Ensure that the machine is always kept unplugged while cleaning or repairs are being carried out. 3）Back Warning Label: Remind service personnel to power off the machine before carrying out maintenance or repairs. Santint Automatic Shaker V1.0...
-
Page 7: Technical Features And Parameters
3. Technical features and parameters Model Item □ S5 □ SHH-IV Dimension 625×730×1160 775×805×1175 （W×D×H） Weight （ kg） 200±5 215±5 Bottom Of Can≤310mm， Top Of Can≤360mm， Height≤390mm Can Diameter≤360mm，Height≤390mm Inner Size Bottom Of Can Without Active Platform≤360mm Travel Distance Of 50～410 mm... -
Page 8: Equipment Installation
T2 Button---press it, the clamping plate will automatically Stop-Up Button Fig. 5.1 clamp paint can and begin to shake for T2 time. T3 Button---press it, the clamping plate will automatically clamp paint can and begin to shake for T3 time. Santint Automatic Shaker V1.0... -
Page 9: Operation And Use
It means that the machine is ready to work. Big Rubber 2) Open the viewing door. Put a big rubber cushion on the Cushion roller and a paint container on the rubber cushion. Select a top Fig. 6.1 Santint Automatic Shaker V1.0... - Page 10 No need to add a top container cushion(Fig. 6.4). As for the containers which are less than 5L, no need to add any cushion. They shall be located in the center of the clamping plate. Santint Automatic Shaker V1.0...
-
Page 11: Maintenance Of The Equipment
(Fig. 7.1). 3) Lubricate the positions shown in Fig. 7.2 with lithium grease yearly. 4) Any issue shall be solved timely! Add Engine Oil Add Lithium Grease Add Lithium Grease Fig. 7.2 Fig. 7.1 Santint Automatic Shaker V1.0... -
Page 12: Troubleshooting
Shaker works under improper shows “Motor voltage (too high or too low) for 2. Install a voltage stabilizer. Overheat”. too long time. 3. If the phenomenon occurs frequently, check electrical circuit. Santint Automatic Shaker V1.0... - Page 13 Then take out the paint can. How to take out the paint can in power failure. Contact with your supplier for other issue(s). Santint Automatic Shaker V1.0...
-
Page 14: Nameplate
9. Nameplate 贴铭牌 Santint Automatic Shaker V1.0... -
Page 15: Circuit Diagram
10. Circuit Diagram 贴线路图 Santint Automatic Shaker V1.0... - Page 16 ZHENGZHOU SANHUA TECHNOLOGY & INDUSTRY CO. LTD. ADD: Feilong Road, Zheng zhou Xingyang Industries Convergent Areas， Zhengzhou City, Henan Province. PR. China. 450042 TEL：(86) 371-67857168 After-Service：(86) 371-67857319 FAX：(86) 371-67857166 WEB：http://www.santint.com E-mail:info@santint.com Santint Automatic Shaker V1.0...
